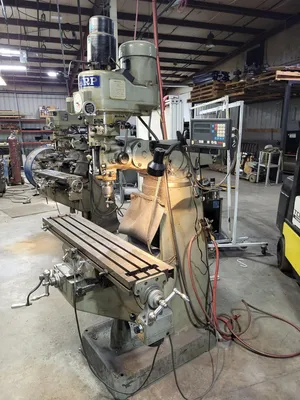

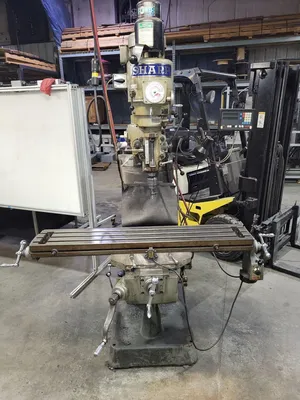

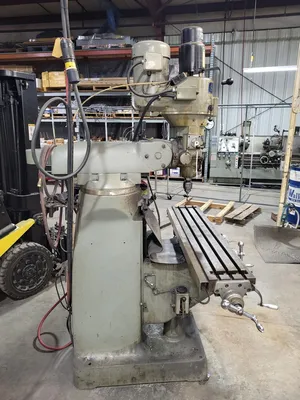

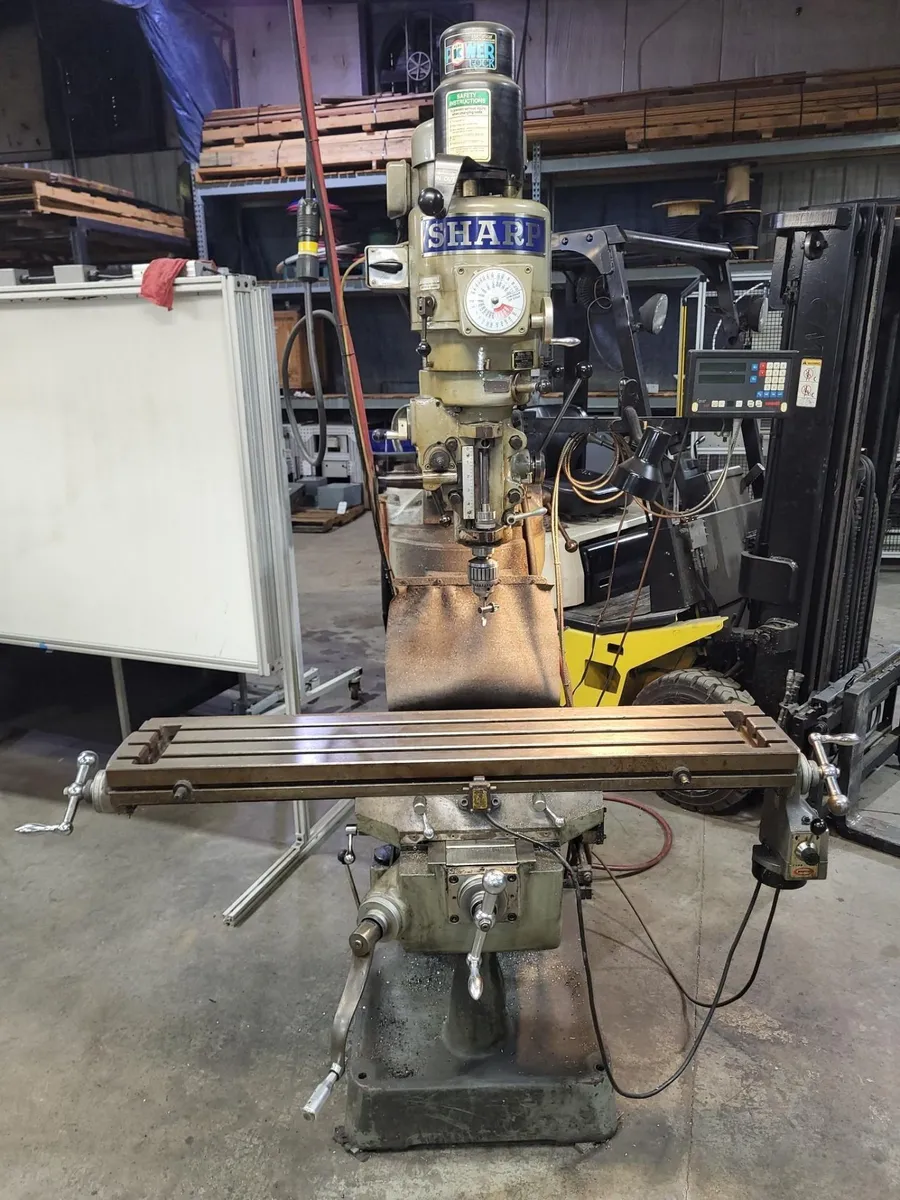

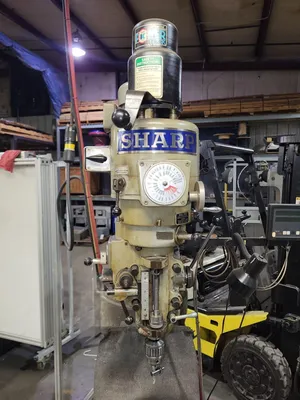

Sharp LMV-50 Vertical Mill w/3HP VS Head, PBD, PF, 9 x 50 Table

Sharp LMV-50 Vertical Mill
3HP Head
60- 4500 RPM

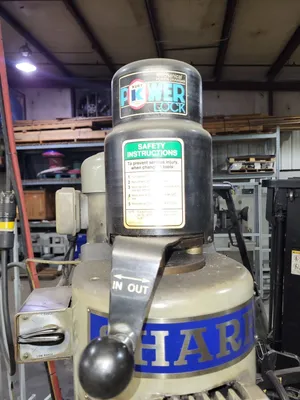

Kurt Power Draw Bar
Newall Topaz Digital Read Out

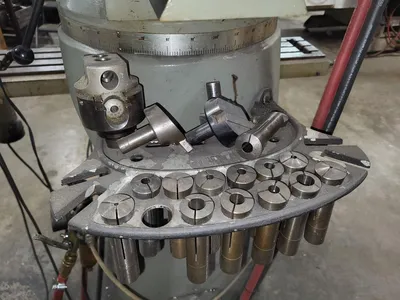

R8 Spindle w/Collets
Bijur One Shot Lube
9" x 50" Table
Dovetail Slide Ways
T Slot Table #/Size= 3, 5/8"
Table Travel X Axis: 37"
Table Travel Y Axis: 12"
Ram Travel: 12"

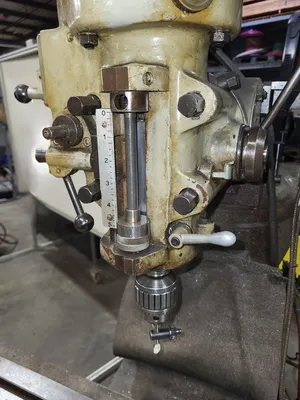

Quill Travel (Z Axis): 5"
Quill Feed (IPR): .00015", .003", .006"
Knee Travel: 16"
Servo X Axis Power Feed
Spindle to Column Min/Max: 2.125"- 18"
Head Swivel: 360 Degrees
Head Tilt Right to Left: 45 Degrees
Head Tilt Up and Down: 45 Degrees
220-440 V 3 Phase
Dimensions:
7' x 6.5' x 8'
2400lbs
