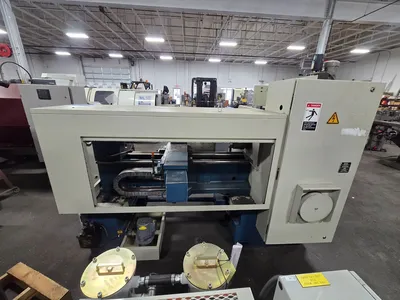

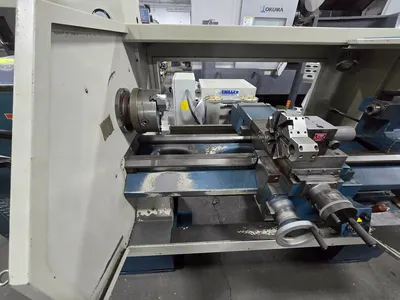

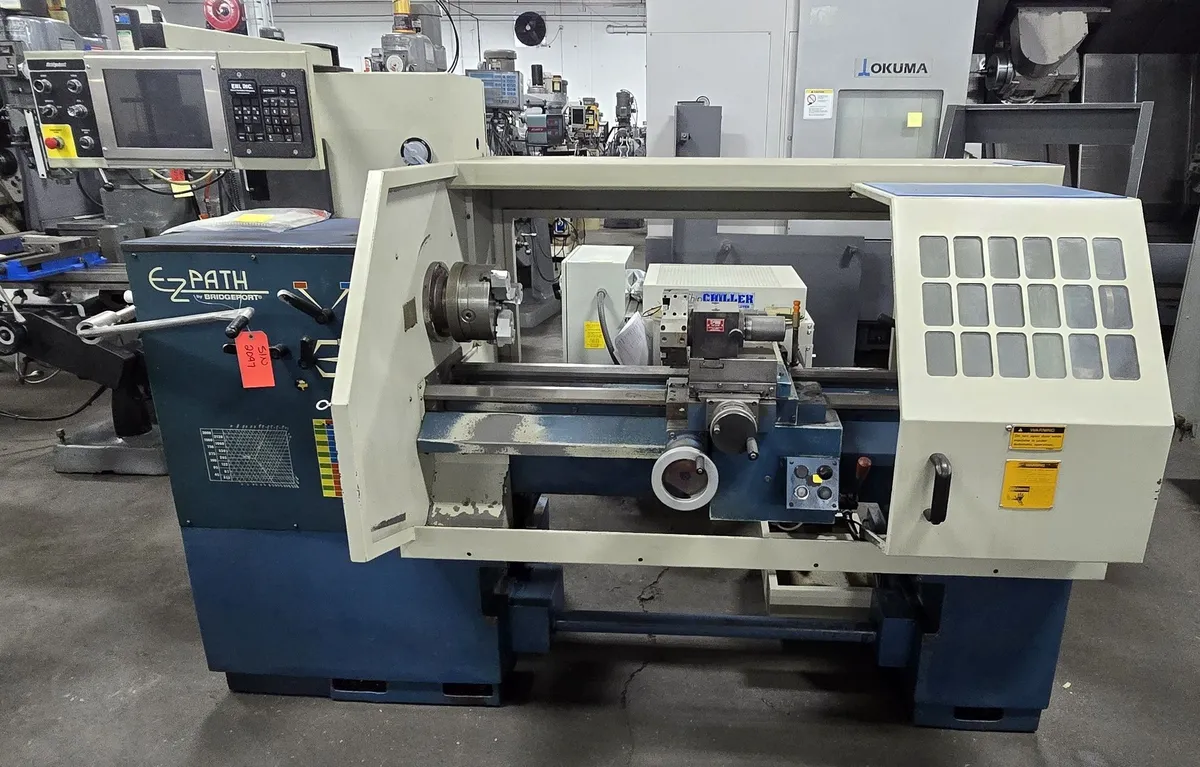

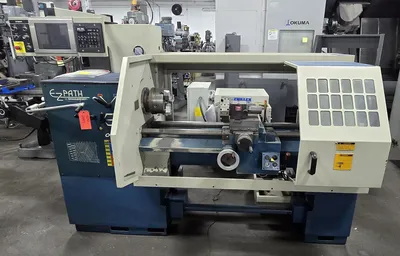

17" x 40" Bridgeport Romi EZ Path w/ Dorian Manual 8 Station Turret

Equipped With:

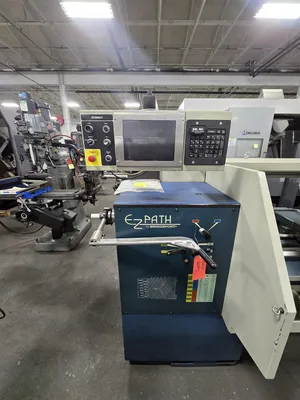

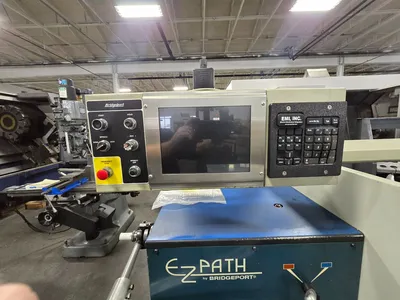

Bridgeport EZ Path CNC Control
New Screen & Keypad
WIRED 230V

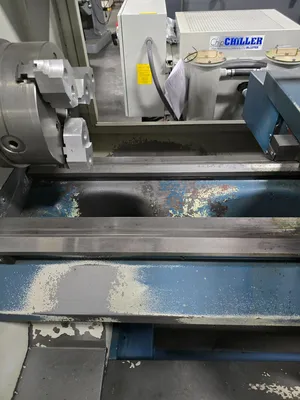

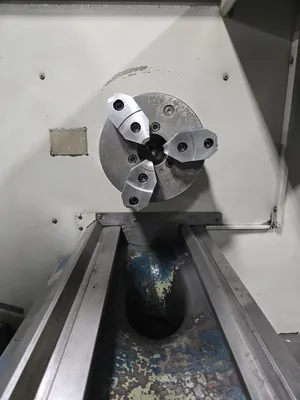

10″ 3-Jaw Chuck

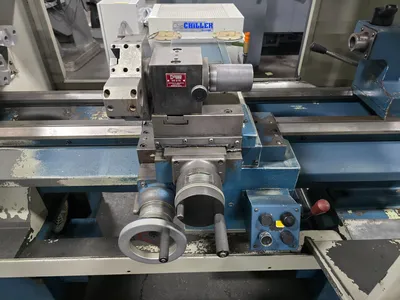

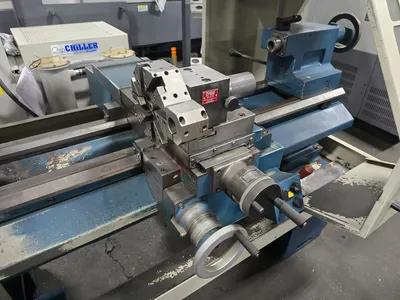

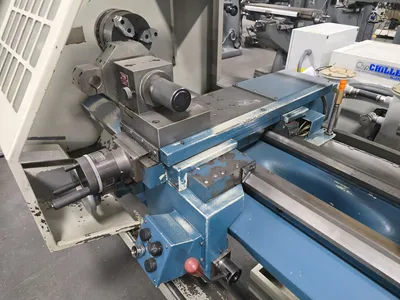

Dorian 8 Station Manual Turret (VIT 8-75)
5C Collet Closer

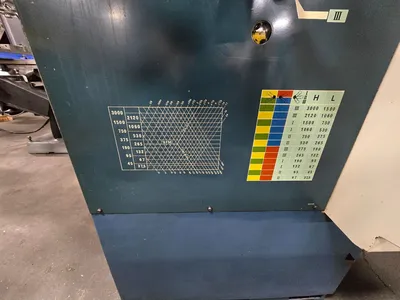

Geared Headstock
Manual Tailstock
Tool Post
Dual Electronic Handwheel
Inch/Metric Threading
Coolant system with Chip Pan
Auto Lube
Capacity:
Max Height of Centers: 8.46″
Max Swing Over Bed : 17.0″
Max Swing Over Cross Slide: 8.0″
Max Swing Over Carriage Wings : 15.75″
Bed Width x Height: 12″ x 13″
Distance Between Centers : 40.0″
Travels:
X Axis Travel (Cross Slide): 8.66″
Z1 Axis Travel (Longitudinal) : 40.0″
Feedrate:
Rapid Traverse X Axis: 295 IPM
Rapid Traverse Z Axis: 394 IPM
Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.09″
Spindle Speed: 37.5 – 3000 RPM
Spindle Motor: 7.5 HP

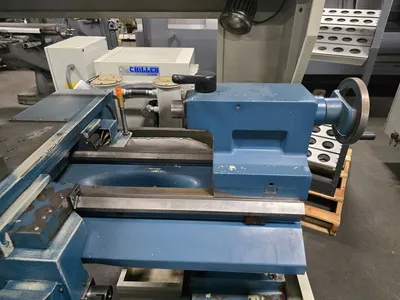

Tailstock:
Tailstock Type: Manual
Taper: MT-4
Maximum Quill Travel: 4.7″
Quill Diameter: 2.36″
Overall Dimensions: 98″ x 51″ x 60″ High Approx.
Machine Weight: 4000 lbs. Approx.
