| Swing | 12" | 304.8 mm |
| Centers | 40" | 1,016 mm |
| Spindle Bore | 2" | 50.8 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Swing Over Cross Slide | 7" | 177.8 mm |
| Dimensions | 76″LR x 30″FB x 51″H | 76″LR x 30″FB x 51″H |
| Weight | 2400lbs | 2400lbs |

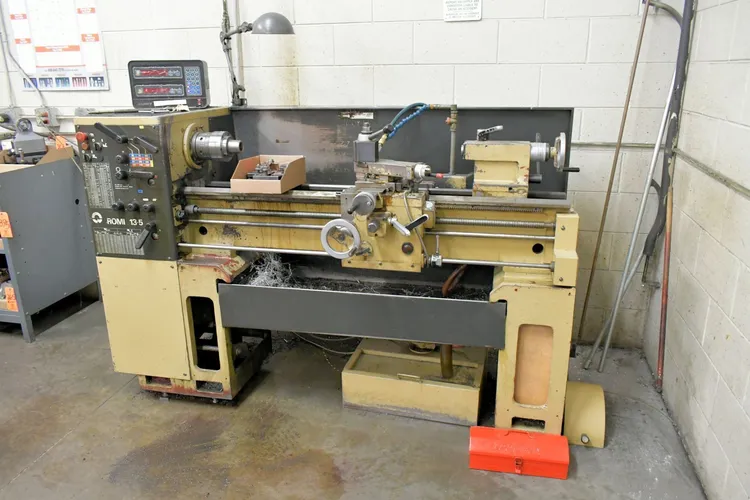

13" x 40" Bridgeport Romi 13-5 Lathe
SPECIFICATIONS:
Swing Over Ways…………13″
Swing Over Cross Slide…………7.5″
Distance Between Centers…………40″
Number of Spindle Speeds…………12
Range of Spindle Speeds…………50 – 2500 RPM
Spindle Bore…………1-3/8″
Spindle Motor…………5 HP
Inch Threads…………4 – 72 TPI
Metric Threads…………0.2 – 7 mm
Tailstock Taper…………Morse Taper #3
Tailstock Quill Travel…………4.75″
Electrics…………230v 3 phase
Dimensions – Approximate…………76″LR x 30″FB x 51″H
Weight – Approximate…………2000 Lbs.
Bridgeport Romi 13 5 Lathe
EQUPPIED WITH:
Inch/Metric Threading

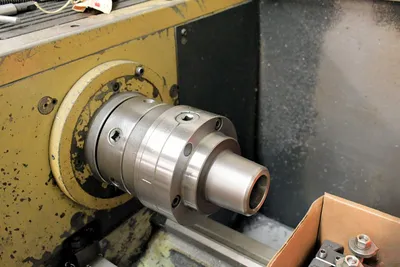

Collet Chuck
Aloris Tool Post w/ holder
Jacobs Chuck
Threading Dial
Micrometer Carriage Stop
Coolant Pump & Tank, Chip Pan Base
*Preliminary Specifications Subject to Verification
