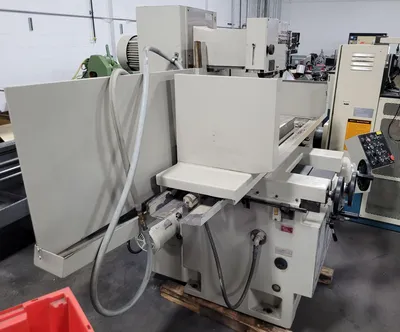

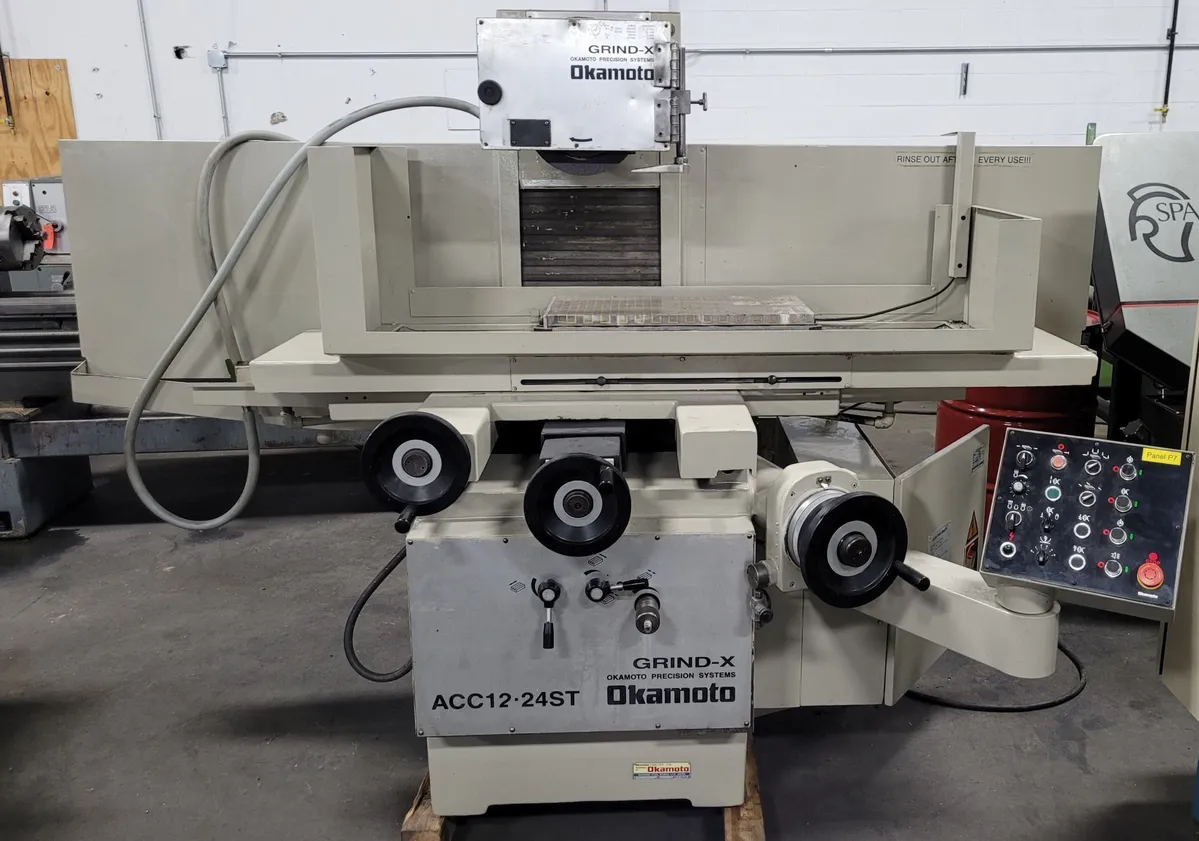

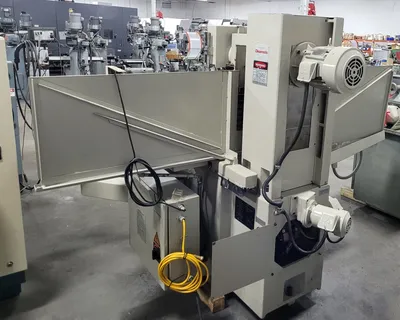

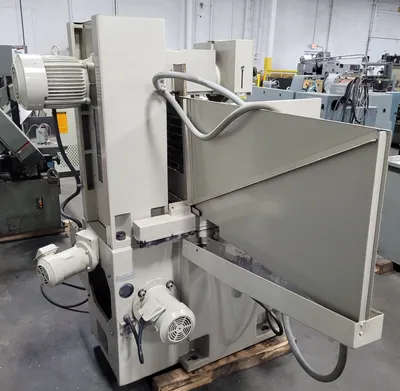

12" X 24" OKAMOTO ACC-12-24-ST 3-AXIS HYDRAULIC SURFACE GRINDER
Have one to sell?
$18,950.00 USD
ConditionUsed
1 available
For sale: 2005 OKAMOTO ACC-12-24ST 3-axis hydraulic surface grinder. Features a 12"x24" table, 5 HP motor, max travel 29.5". Includes coolant system with filtration. Ideal for precision grinding needs. Compact yet powerful with a footprint of 100"x76"x72".
12" X 24" OKAMOTO ACC-12-24-ST 3-AXIS HYDRAULIC SURFACE GRINDER

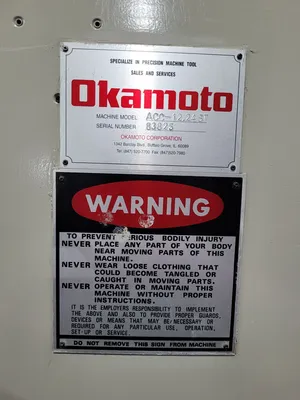

Machine Model No.: ACC-1224ST
New: 2005

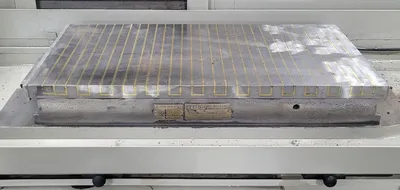

12" x 24" Electro Magnetic Chuck
Max. Longitudinal Table Travel: 29.5"
Max. Cross Travel: 13.6"
Max. Distance Table Under 12" Dia. Wheel: 13.7"
Hydraulic Table Feed Rate: 1 to 82 FPM
Hydraulic Cross Feed in Increments: .02" to .8"
Hydraulic Continuous Cross Feed: 4 to 40 IPM
Automatic Head Down Feed per Table Stroke: .0001" to .0015"
Rapid Traverse to Wheel Head
Max. Wheel Size: 12" Dia. x 1.5" Wide x 5" Hole
5 HP Spindle Motor, 3 Phase, 60 Cycle, 480 Volts
2 HP Hydraulic Pump Motor, 3 Phase, 60 Cycle, 480 Volts
1/2 HP Wheel Head Traverse Motor, 3 Phase, 60 Cycle, 480 Volts
Wheel Hub

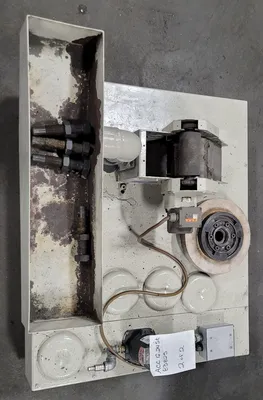

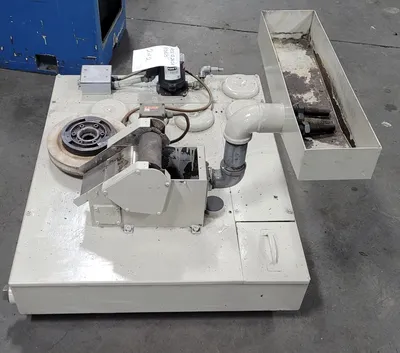

Coolant System with Paper Filtration
Overall Machine Dimensions: 100" L-R x 76" F-B x 72" H x 4,600 Lbs.
Coolant System Dimensions: 44" L x 28" W x 32" H
