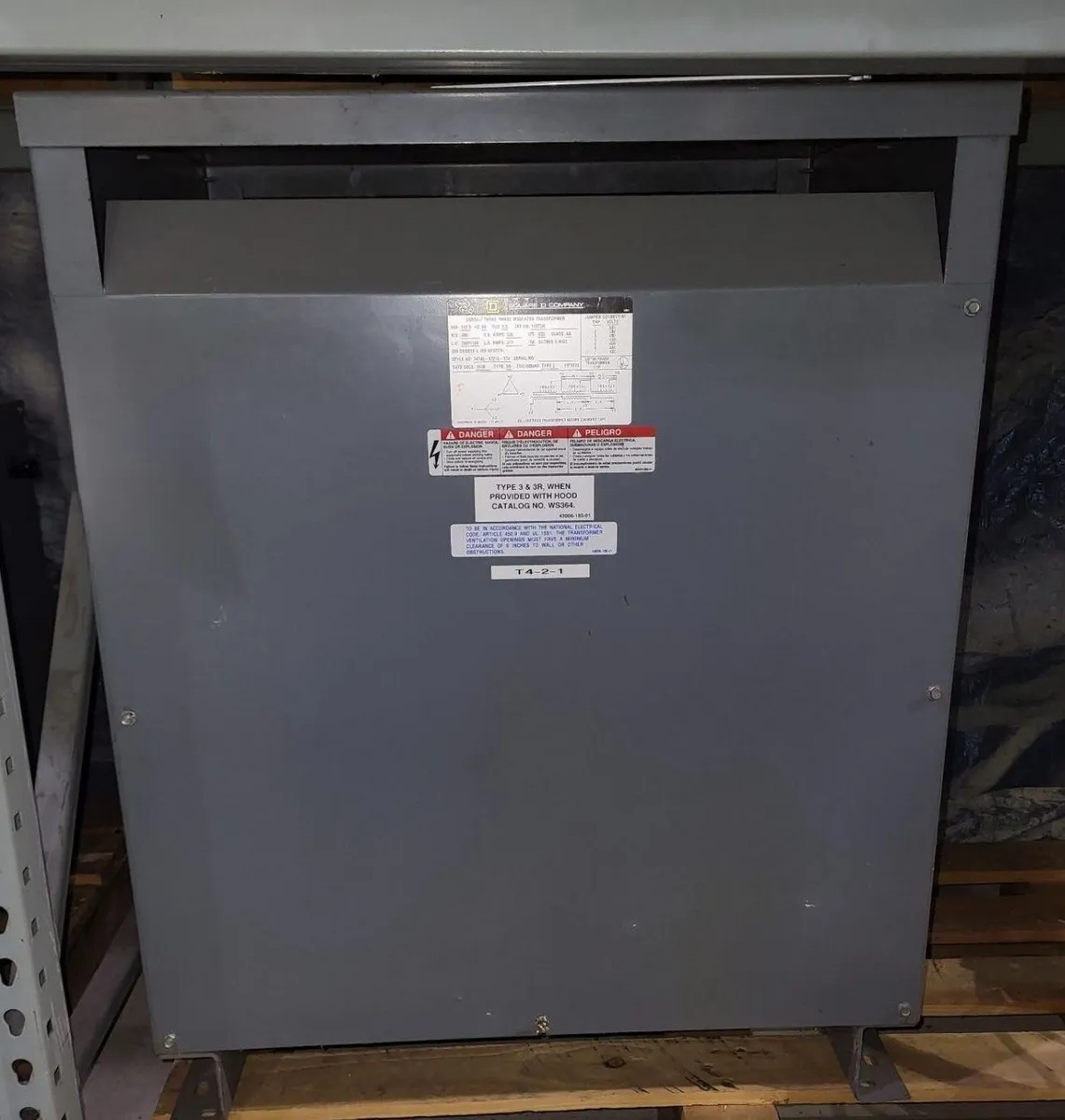

Used 112.5 KVA Square D Sorgel Transformer, Model 112T3H. 3 Phase, 480V to 208Y/120V. Natural convection cooling, copper coil, 60Hz frequency. 47dB sound level, dimensions: 37.5"x28.4"x31.3". Weighs 665 lbs, floor mounted, UL type 2 protection.

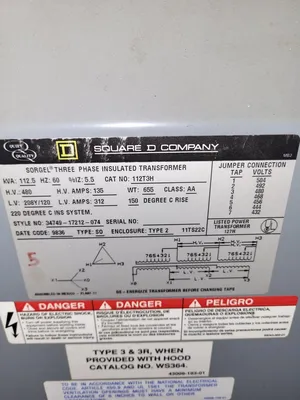

112.5 KVA Square D Sorgel 480V to 208Y/120 3 Phase Transformer
Phase: 3 phase
Rated operational power in VA: 112.5 kVA
Network Frequency: 60 Hz
Type of cooling: Natural convection
Primary Voltage: 480 V delta
Number of tap-offs: 2 2.5 % FCAN, 4 2.5 % FCBN
Primary operational current: 135.32 A 312.27 A 112.5 kVA
Secondary voltage: 208Y/120 V
Coil: Material Copper
Basic IMP level (BIL): 10 kV
Temperature Rise: 150 °C
220 °C insulated
DOE Efficiency 98.80 % at 35 % load factor , 167 °F (75.0 °C)
Sound Level: 47 DB
6 dB NEMA ST-20
%IZ: 3.27 %
%IX: 2.67 %
X/R Ratio: 1.39
Inrush current: 1563 A
Let Through Current: 9.55 kA
Transformer Losses: 238 no load (core loss)
2389 load loss (coil loss)
Transformer BTU/HR: 1039 16.6 %
1322 25 %
2850 50 %
5397 75 %
8964 100 %
Height: 37.5 in (953 mm)
Depth: 28.4 in (722 mm)
Width: 31.3 in (795 mm)
Net Weight: 665 lb(US) (441.80 kg)
Mounting: support Floor

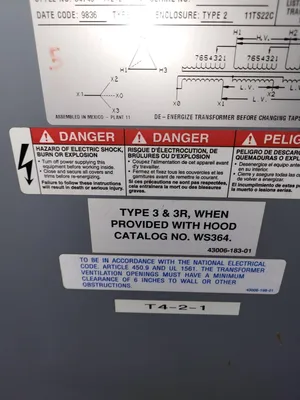

Degree of protection: UL type 2
UL type 3R, with 7400WS21M
Electrical connection: 4 Hole Nema Pad secondary 0.4 in (11.1 mm)
6 Hole Nema Pad sec - XO 0.4 in (11.1 mm)
4 Hole Nema Pad primary 0.4 in (11.1 mm)
Number of mounting holes: 4 Ø: 0.5 in (13 mm)
