2008 Bridgeport Hardinge 2-Axis CNC Vertical Mill w/Acu-Rite Millpwr MP2 2-Axis CNC Control, Kurt PDB & Vice

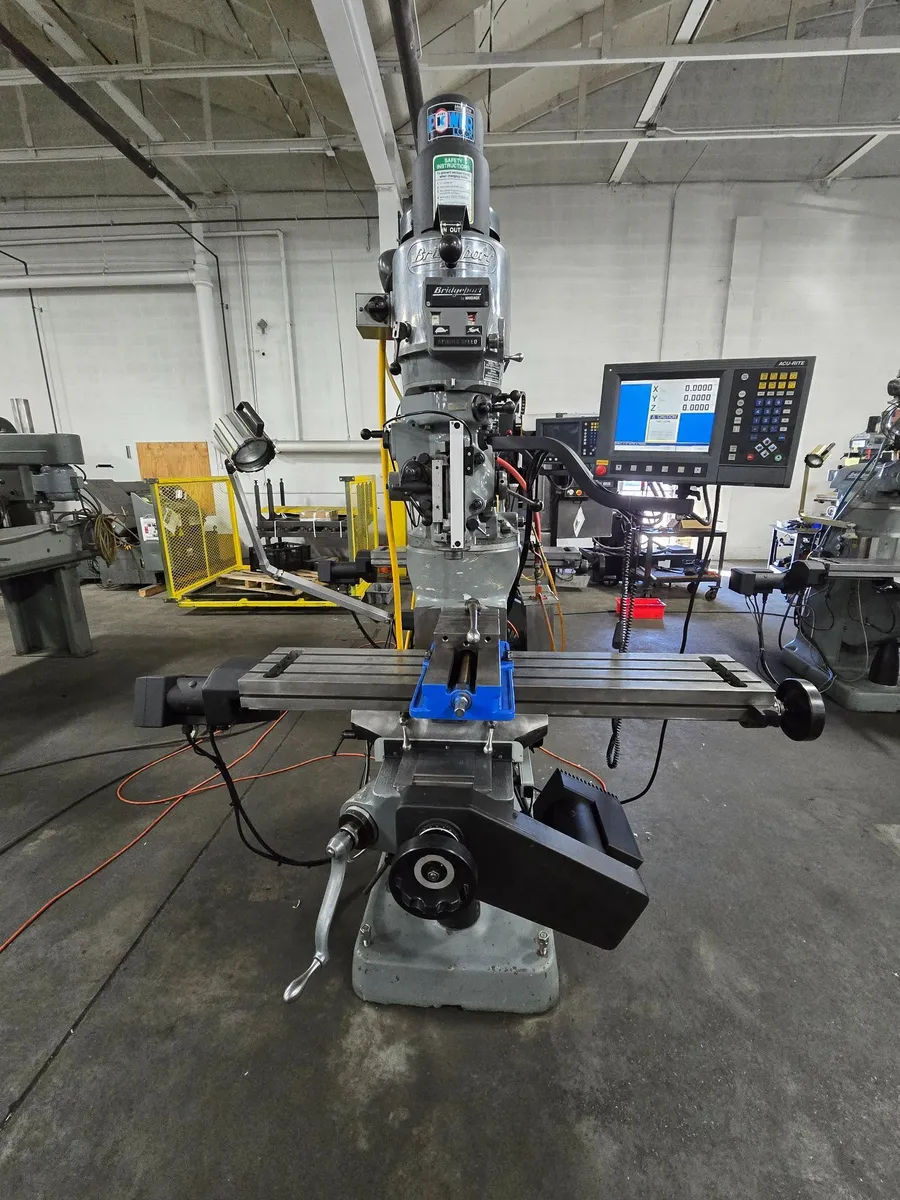

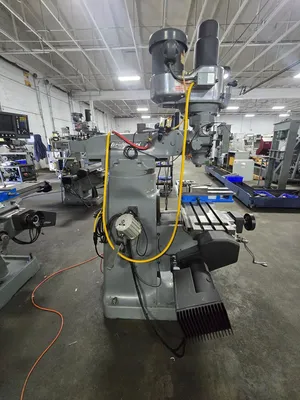

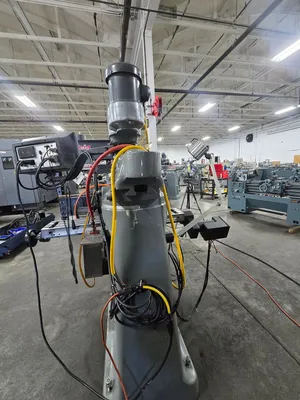

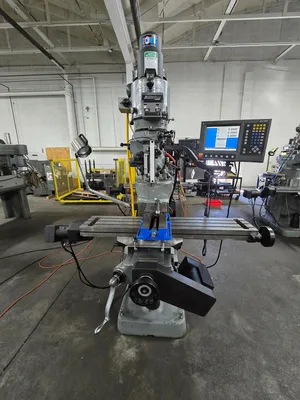

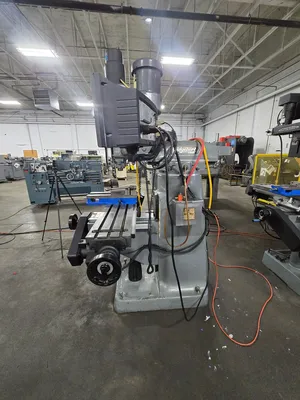

Bridgeport Series 1 2-Axis CNC Vertical Milling Machine w/ Acu-Rite Millpwr MP2 2-axis CNC Control
Acu-Rite Millpwr MP2 2-Axis CNC Control and 3 Axis DRO
Bridgeport Model: 2J

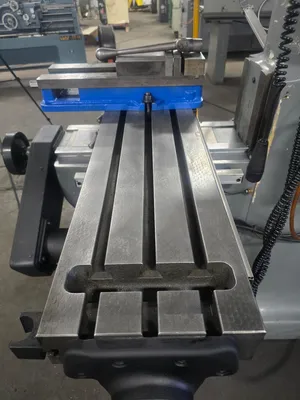

Table Size: 9" x 48"
Machine Travels (X/Y): 35" / 12"
Kurt Power Draw Bar

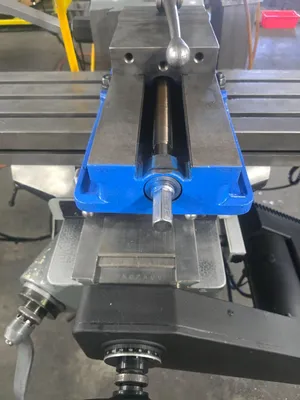

Kurt 6" Vice

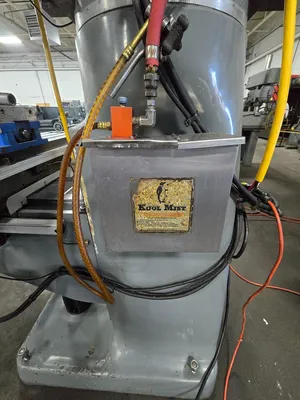

Kool Mist Box
Power/Manual Quill Z-Axis Travel: 5"
Knee Travel: 16"
Spindle Taper: R8
Spindle Speeds: 60 to 4200 RPM

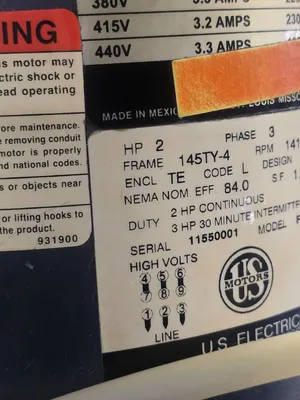

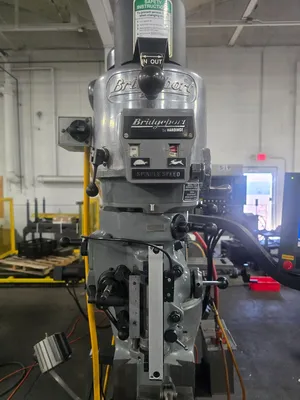

Spindle Drive: 2 HP Variable Speed Head w/Rebuilt top half
Chrome ways
Bijur Lube
R8 Collets
Electrics:230/460 Volt, 3 Phase (currently wired 230V)
Main Unit Approx Weight: 2500.00 lbs
Main Unit Dimensions (in inches): Length: 65.00" Width: 60.00" Height: 84.00"

Acu-Rite MillPWR Control
The Acu-Rite MILLPWR Controls for vertical knee mills have helped increase productivity and reduce setup time.
From the moment you power up the MILLPWR control, you’ll know it was built with convenience in mind.
The convenience lies in its capabilities. Standardized menus make it easy for you to program common features like lines, arcs, pockets, bolt hole patterns, islands, spirals, and ellipses.
To add a feature to your program, simply press the function key and then follow the prompts.

General features of the Millpwr MP2 controller
Ease of use: The system uses conversational, menu-prompted programming, which was designed to be easy to learn without prior programming experience.
Dual functionality: The control was well-suited for shops that required both manual operation and automated milling for increased productivity.
Programming: It could be used to program common features like lines, arcs, pockets, bolthole patterns, and islands directly at the machine.
Feedback: It was a closed-loop system that received positioning feedback from high-resolution glass scales on the machine's axes.
