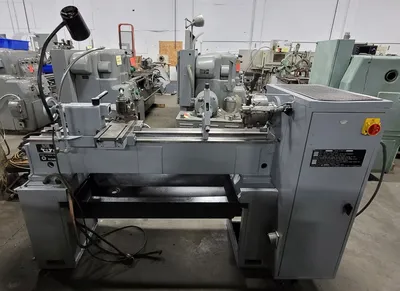

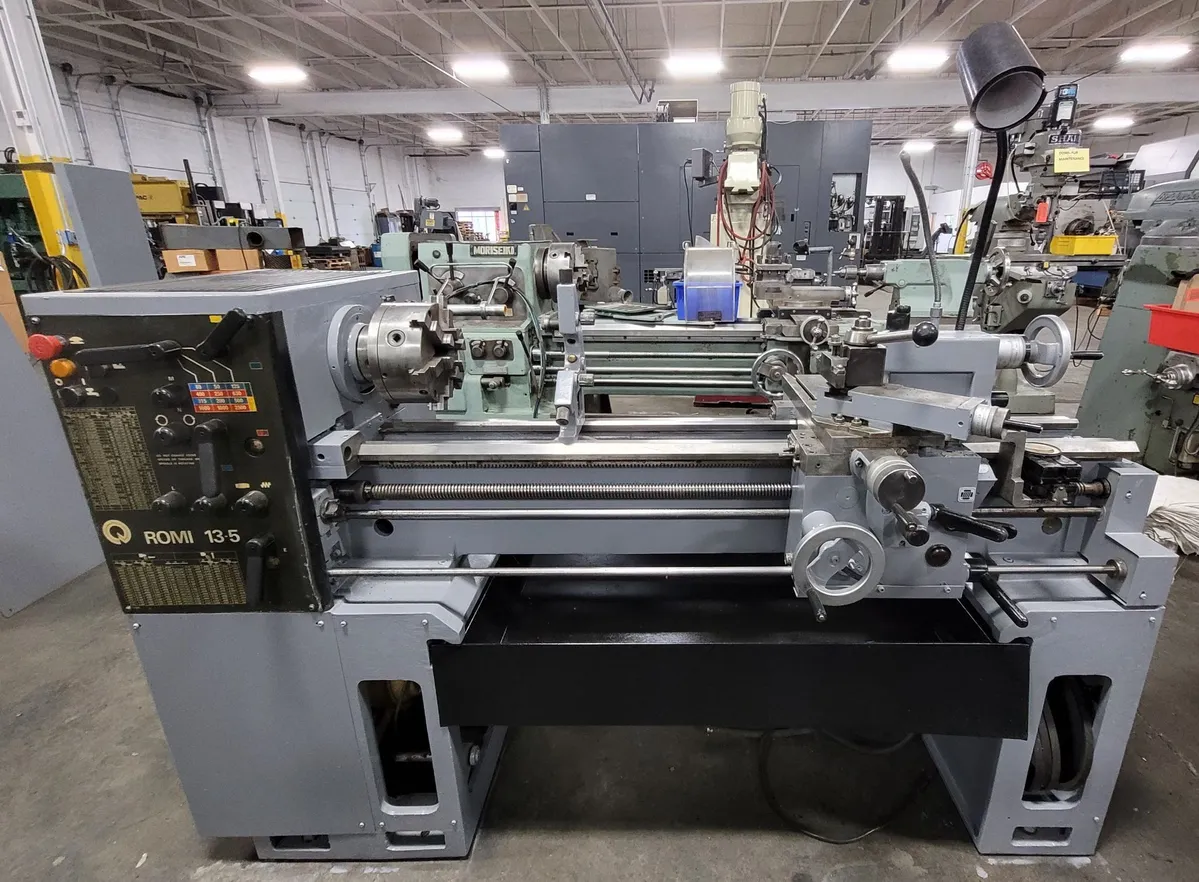

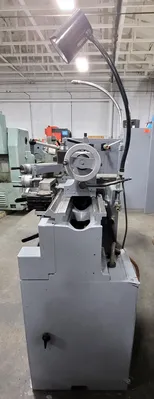

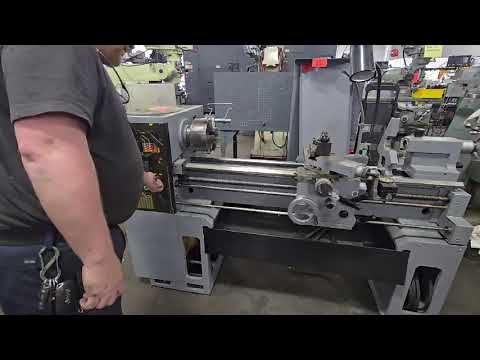

13" x 40" Bridgeport Romi 13-5 Lathe

13" x 40" Bridgeport Romi 13-5 Lathe
SPECIFICATIONS:
Swing Over Ways…………13″
Swing Over Cross Slide…………7.5″
Distance Between Centers…………40″

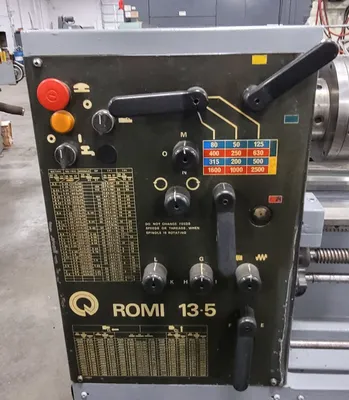

Number of Spindle Speeds…………12
Range of Spindle Speeds…………50 – 2500 RPM
Spindle Bore…………1-3/8″
Spindle Motor…………5 HP
Inch Threads…………4 – 72 TPI
Metric Threads…………0.2 – 7 mm

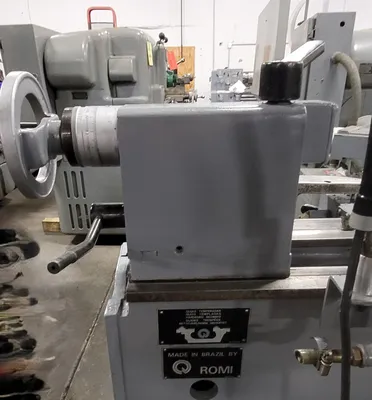

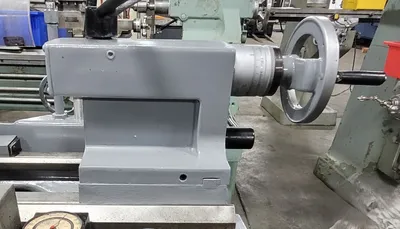

Tailstock Taper…………Morse Taper #3
Tailstock Quill Travel…………4.75″
Electrics…………220/440V/3Ph/60Hz
Dimensions – Approximate…………76″LR x 30″FB x 51″H
Weight – Approximate…………2000 Lbs.
Bridgeport Romi 13 5 Lathe
EQUPPIED WITH:
Inch/Metric Threading

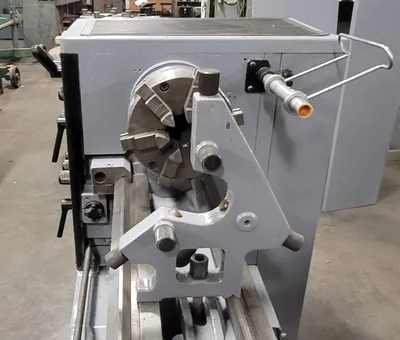

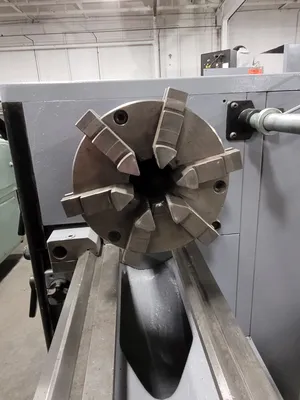

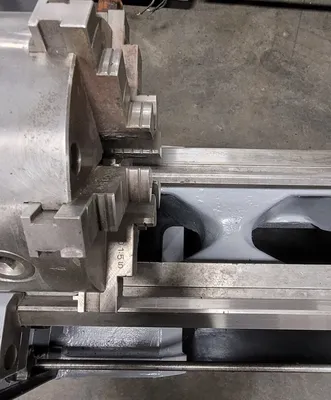

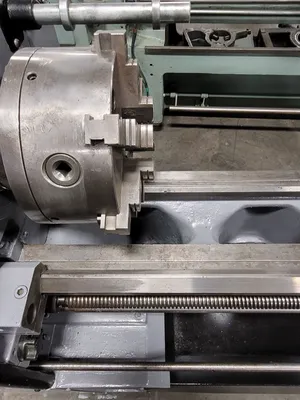

8″ Buck 6-Jaw Chuck w/2" Hole

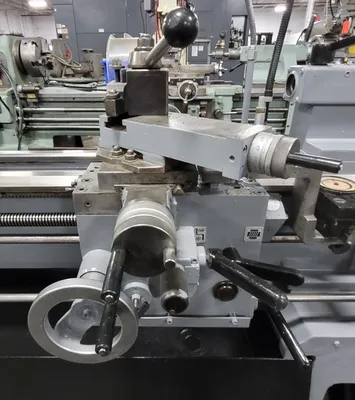

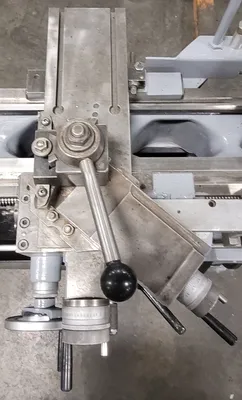

Aloris Tool Post w/ holder
Jacobs Chuck
Threading Dial
Micrometer Carriage Stop

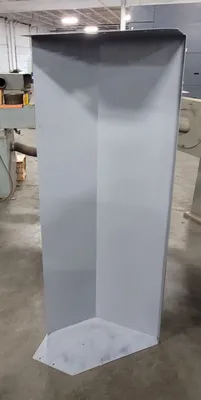

Coolant Pump & Tank, Chip Pan Base
*Preliminary Specifications Subject to Verification
