| X | 41.3" | 1,049 mm |
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT #40 | CAT #40 |
| Pallet-W | 21.65" | 549.91 mm |
| Pallet-L | 51.18" | 1,300 mm |
| # Axis | 4 | 4 |
| Dimensions | 120″ x 112″ x 114″ | 120″ x 112″ x 114″ |
| Weight | 15200 | 15200 |

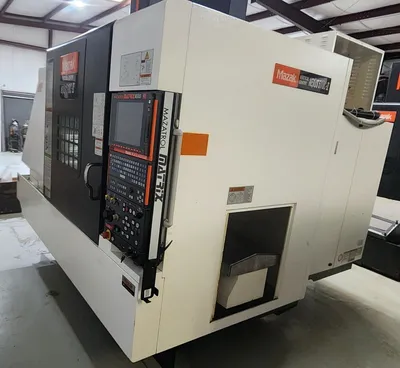

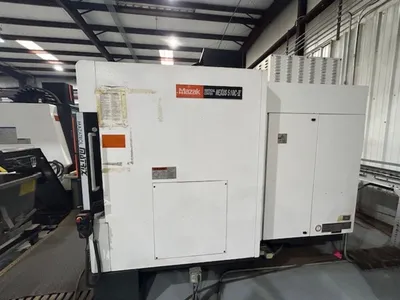

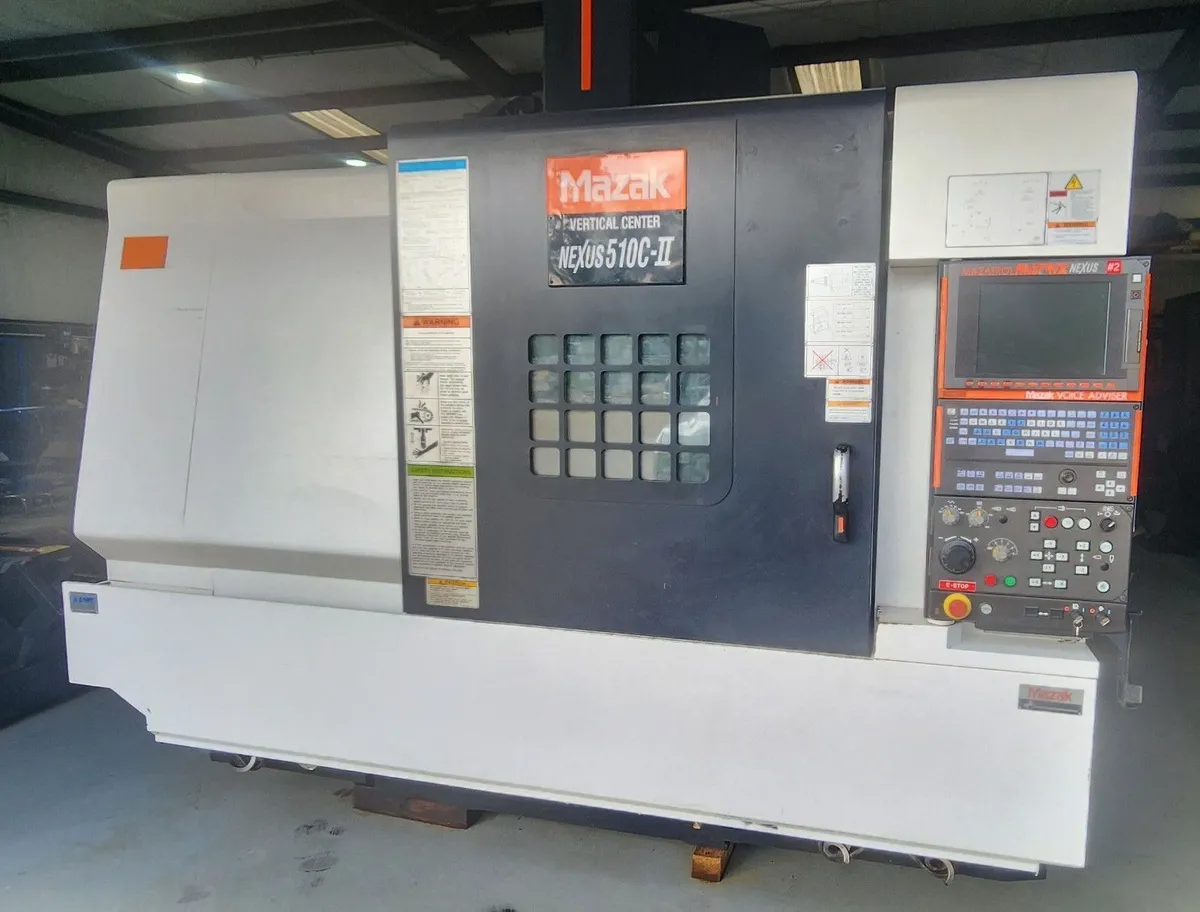

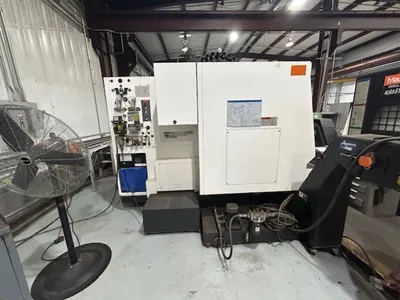

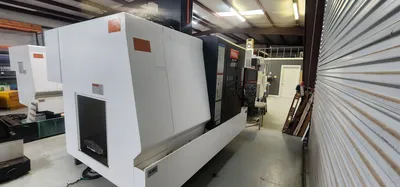

2013 Mazak Nexus 510CII VMC

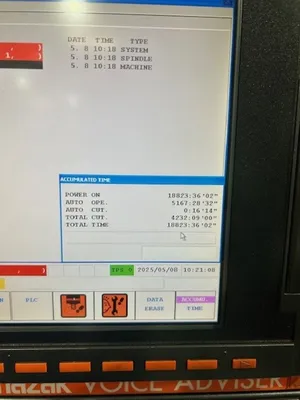

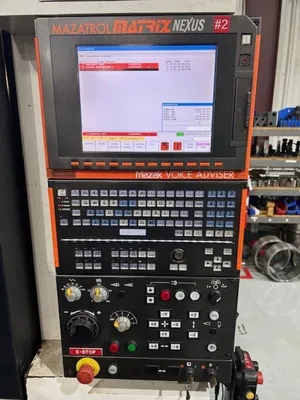

Mazatrol Matrix Nexus CNC control,

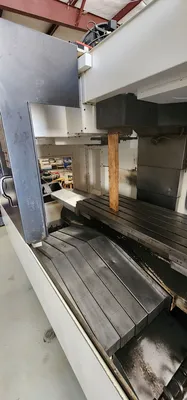

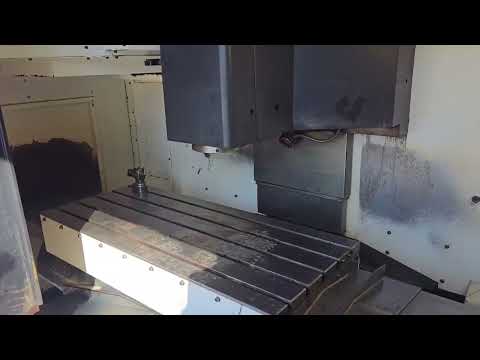

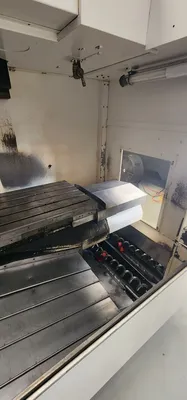

51.18" x 21.65" table,
41.3" X-axis travel,
20" Y-axis travel,
20" Z-axis travel.
Table load capacity: 2,630 lbs
12,000 RPM spindle,
25 HP motor,
30-position automatic tool changer (ATC),
Spindle nose to table: 5.9" - 25.98",
Spindle taper: CAT #40,
Spindle speed: 12,000 RPM,
Spindle motor: 25 HP,
Tool magazine capacity: 30 ATC,
Maximum tool diameter: 4.92",
Maximum tool length: 13.78",
Maximum tool weight: 17.64 lbs,
Rapid traverse rate (X, Y, Z): 1,417 IPM,
Cutting feed rate: 787 IPM,
Coolant: Through-spindle coolant (TSC) prep,

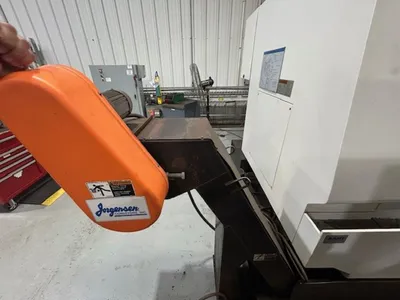

Jorgensen Chip Conveyor,

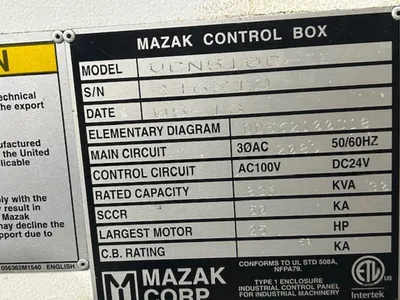

208V 3 phase,
Overall Dimensions: 120″ x 112″ x 114″ High,
Weight: 15200 lbs
