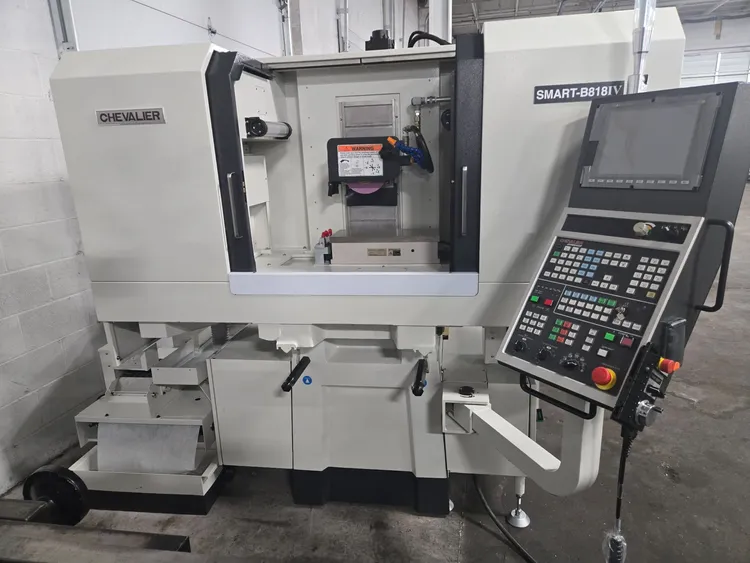

2025 Chevalier Smart B818IV CNC Surface Grinder

2025 Chevalier Smart B818IV CNC Surface Grinder
Control system: SMART iControl
Capacity
Max. grinding length-longitudinal: 460 mm (18.1")
Max. grinding width-crosswise: 200 mm (7.9")
Distance between table to spindle centerline: 395 mm (15.6")
Max. table load: 210 kg (462 lbs.)

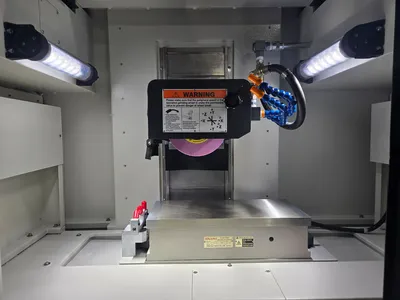

Table
Table size: 200 x 460 mm (7.9" x 18.1")
Table speed (variable): 0~20 m/min 0~65.6 fpm)
Max. table travel: 510 mm (20.1")
Transverse movement (Z)
Max. travel: 220 mm (8.7")
Feed speed: 0~3,000 mm/min (0~10 fpm)

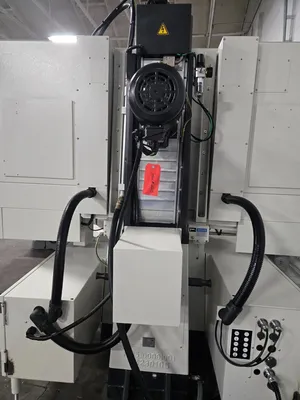

Wheelhead elevation (Y)
Max. travel: 290 mm (11.4")
Feed speed: 0~3,000 mm/min (0~10 fpm)
Spindle
Spindle speed (variable speed): 1,000~7,000 rpm
Spindle motor: 3 kW (4 HP)
Motors
Axis motors (X / Y / Z): X: 2.4 kW, Y/Z: 1.1 kW

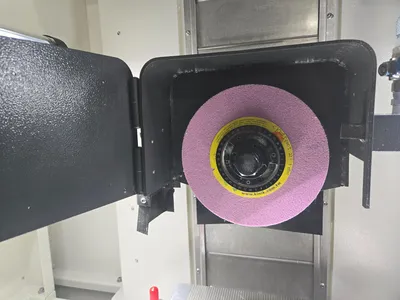

Wheel dimension
OD x Width x Bore: Ø205 x 13 x Ø31.75 mm (Ø8" x 0.5" x Ø1.3")

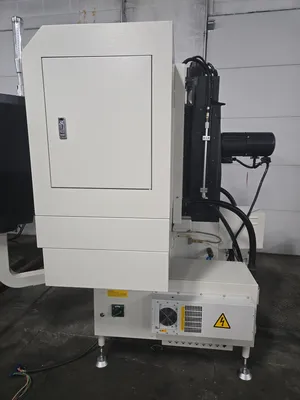

Machine dimensions
Floor space (W x D x H): 2,280 x 2,205 x 2,020 mm (89.8" x 86.8" x 79.9")
Net weight: 1,550 kg (3,400 lbs.)
Wired 230 3 phase power
