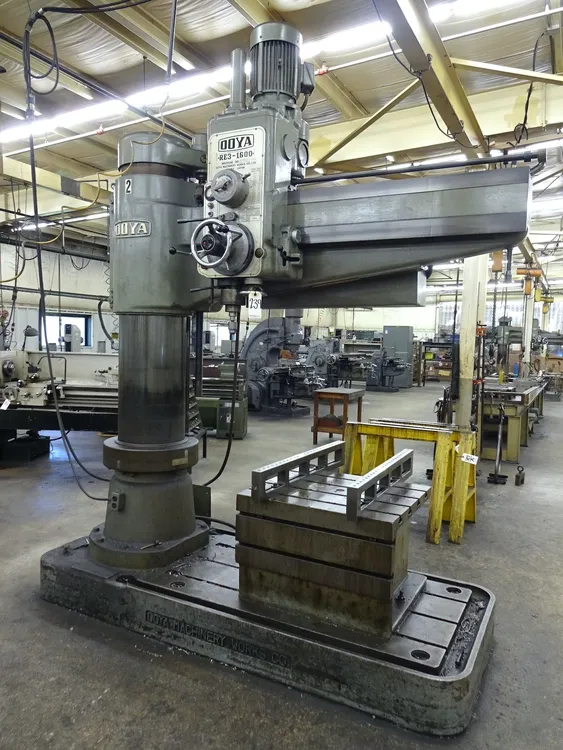

OOYA RA3-1600 radial drill available in used condition, ideal for precision drilling tasks. Known for reliability and durability, perfect for enhancing your workshop capabilities.
Ooya Radial Drill model RE3-1600 with power clamping and power elevation
Specifications:
MACHINING CAPACITY
Drilling capacity - Solid Steel- 3"
Drilliing capacity - Cast Iron- 3 5/8"
Boring capcity in Steel- 7 7/8"
Boring capcity in Cast Iron- 11"
SPINDLE
Diameter of Spindle- 3"
Diameter of Quill- 3 1/2"
Vertical travel of spindle- 15 3/4"
Morse Taper size- #5 MT
Spindle speeds - 20-2180 rpm's
Spindle feeds/rev - .0015" to .125"/rev
Spindle horsepower- 10 HP
MACHINE
Column Diameter- 16 3/8"
Max distance column to spindle center - 63 3/4"
Min disrance column to spindle center - 13 3/4"
Horiz travel of Spindle Head- 50"
Max distrance base to spindle- 61 1/2"
Min distance base to spindle- 14 1/8"
Vertical travel of arm - 32 1/4"
Max height (floor to top of column) - 111 3/8"
Base size- 100 7/8" x 40 1/2" x 9 7/16"
Box table size- L - 29.5" x W - 19.6" x H - 17.7"
Weight - 12,100 lbs
