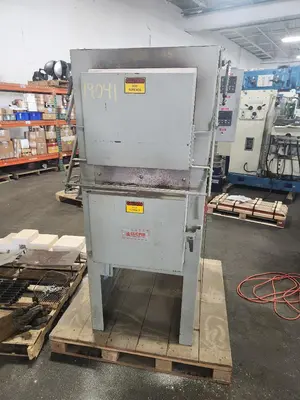

12" x 14" x 24" Lucifer model RD8-KHE24 Over/Under Combination Furnace

12" x 14" x 24" Lucifer model RD8-KHE24 Over/Under Combination Heat Treat/Draw Furnace
Key specifications

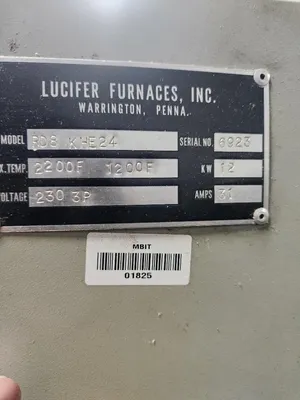

Model: RD8-KHE24 Red Devil Series

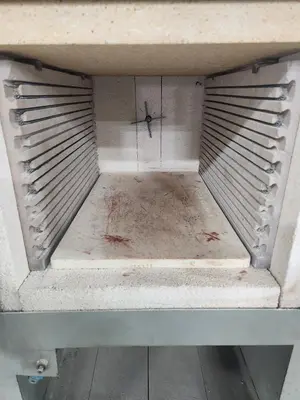

Chamber dimensions: 12"H x 14"W x 24"L (for both upper and lower chambers)
Upper chamber temperature: Up to 2200°F
Lower chamber temperature: Up to 1200°F
Lower chamber feature: Includes a fan for air recirculation and uniform heat distribution
Additional details:
Power: wired for 230 3 Phase 12 Kw 31 Amps
Insulation: Features a multi-layered, energy-efficient insulation system.
Doors: Equipped with insulated, horizontal swing doors with an adjustable latch and a safety micro-switch that shuts off power when the door is opened.

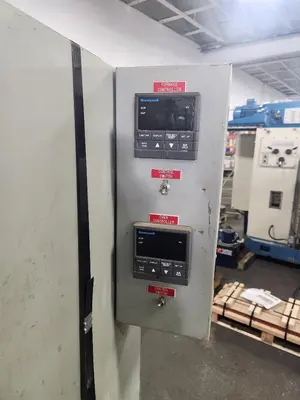

Controllers: Honeywell digital temperature controllers for each chamber.
Applications: Suitable for heat-treating applications like hardening, tempering, drawing, and normalizing for small workloads.
