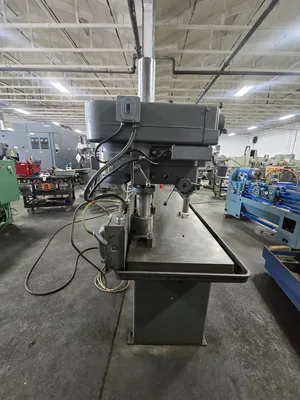

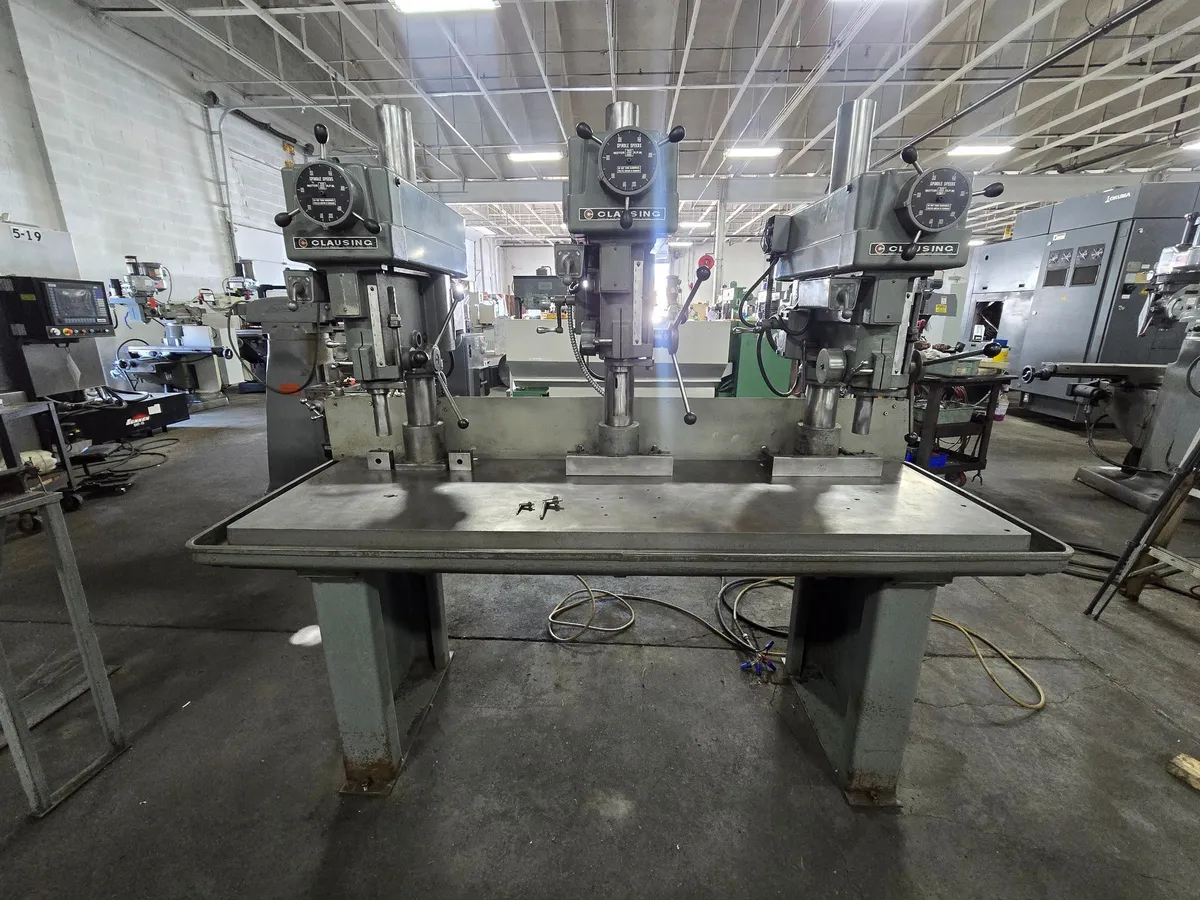

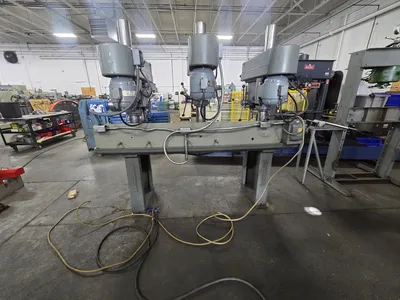

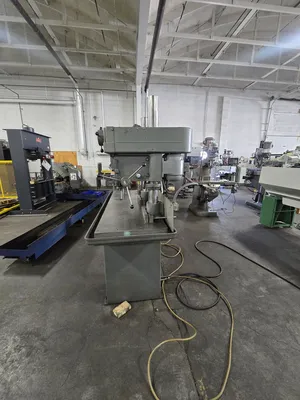

Used Clausing #22VI 3-Spindle Drill Press on a 24"x80" table. Features 20" swing, 1.25" steel capacity, 1.5 hp motor, and adjustable depth stop. Variable speed (150-2,000 RPM) with a heavy-duty precision head. Ideal for professional use.
General specifications
Swing/Drill to center: 20 inches
Drill capacity: Up to 1 1/4 inch diameter (hand feed)
Weight: 1700 lbs
Spindle taper: No. 3 MT (Morse Taper)
Spindle travel: 6 1/2 inches

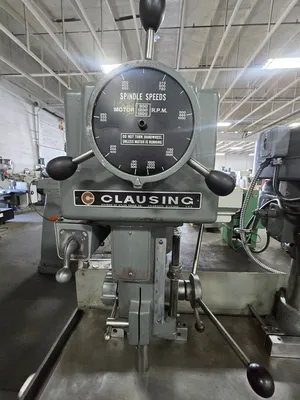

Spindle speeds: A variable range, typically 150 to 2,000 RPM, controlled by a variable-speed drive system.
Spindle nose to table (max): Approximately 33 inches.
Quill diameter: 2 1/2 inches.
Motor and electrical
Motor horsepower: 1 1/2 HP.
Motor type: two-speed, three-phase motor.
Voltage: 220V, 440V, Wired 230 3 Phase now
Table size: 24" x 80"
Column diameter: 4 inches
Features
Variable speed drive with a sheave pulley system for easy speed changes.
Heavy-duty precision head with ball bearings for exact alignment.
Adjustable table with an elevation mechanism.
Adjustable depth stop.
Located in 4E
