DAKE 30" X 30'(360”) 75 TON ELEC-DRAULIC H-FRAME TRAVELING COLUMN HYDRAULIC STRAIGHTENING PRESS
Have one to sell?
$34,500.00 USD
ConditionUsed
1 available
Dake 30' 75-ton hydraulic straightening press, Model 5-075. Equipped with power column traverse, 2 HP Elec-Draulic workhead, variable ram speed, and three adjustable supports. Dimensions: 360" x 64" x 96". Ideal for fabricating needs.

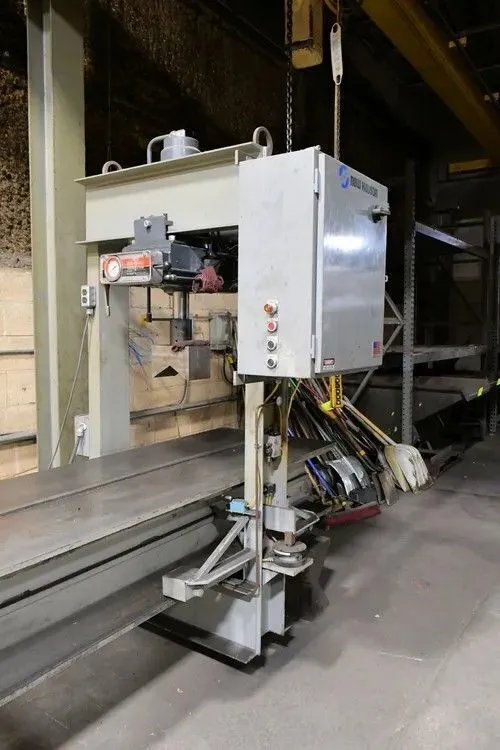

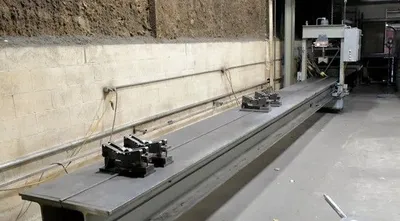

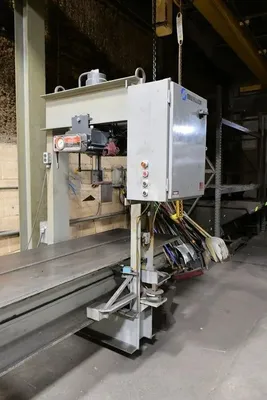

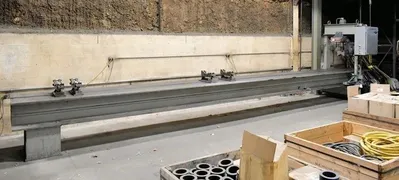

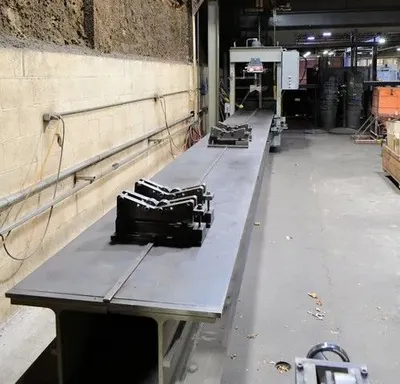

75 TON DAKE ELEC-DRAULIC H-FRAME TRAVELING-COLUMN HYDRAULIC STRAIGHTENING PRESS
Model 5-075
EQUIPPED WITH:
Power Column Traverse

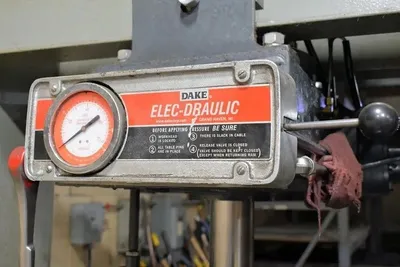

2 HP Elec-Draulic Moveable Workhead
Variable Ram Speed

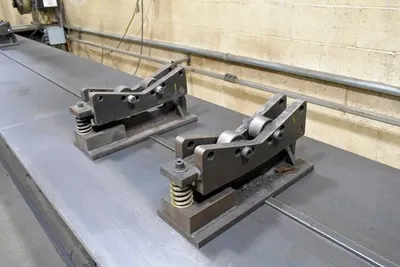

(3) Adjustable Work Supports
CATAOG SPECIFICATIONS:
Tonnage Capacity 75 TON
Stroke Length 10"
Distance Between Housings 35"
Worktable Dimensions, L x W 360" (30') x 32"
Ram Speed, Pressing 5 IPM
Ram Speed, Advancing 28 IPM
Motor, Horsepower 2 HP/1745 RPM
Electrical System 230-460/3/60
Overall Dimensions, L x W 360" x 64"
Overall Height 96"
