DAKE 24" x 25'(300”) 75 TON ELEC-DRAULIC H-FRAME TRAVELING COLUMN HYDRAULIC STRAIGHTENING PRESS "805076-2"
Have one to sell?
$32,500.00 USD
ConditionUsed
1 available
Specifications:

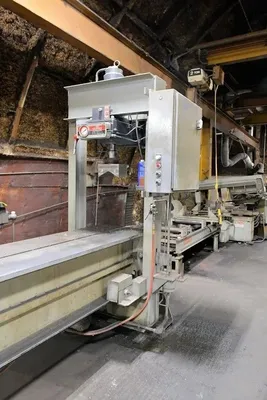

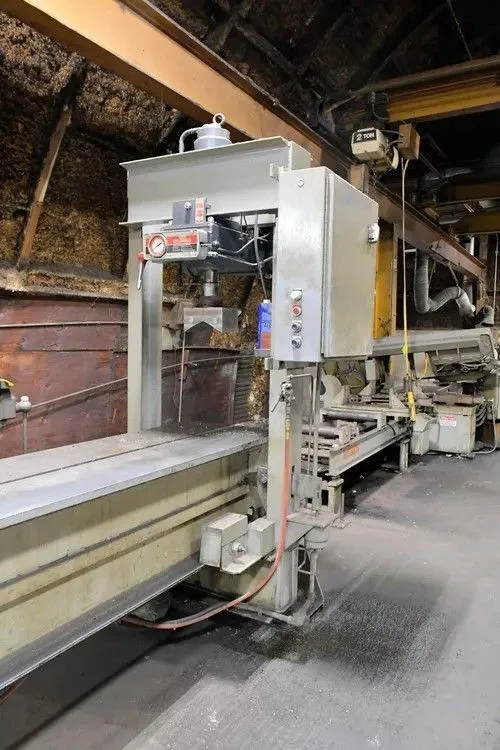

75 TON DAKE ELEC-DRAULIC H-FRAME TRAVELING-COLUMN HYDRAULIC STRAIGHTENING PRESS

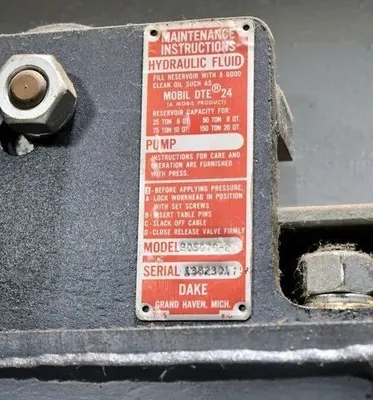

Serial No. 1382301, Model 905076-2
EQUIPPED WITH:
Power Column Traverse

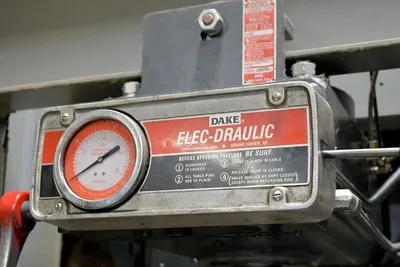

2 HP Elec-Draulic Workhead
Variable Ram Speed

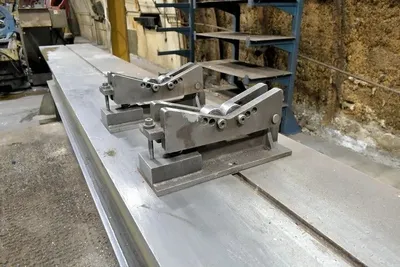

(3) Adjustable Work Suports
CATALOG SPECIFICATIONS:
Tonnage Capacity 75 TON
Stroke Length 10"
Distance Between Housings 30"

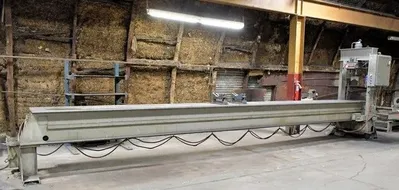

Worktable Dimensions, L x W 312" (26') x 24"
Ram Speed, Pressing 5 IPM
Ram Speed, Advancing 28 IPM
Motor, Horsepower 2 HP/1745 RPM
Electrical System 230-460/3/60
Overall Dimensions, L x W 29' x 55"
Overall Height 102"
