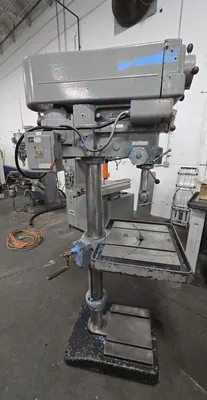

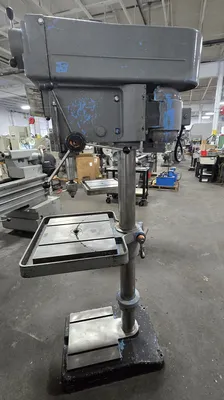

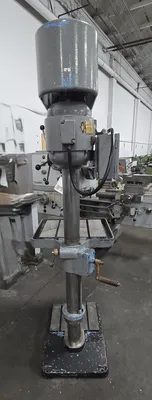

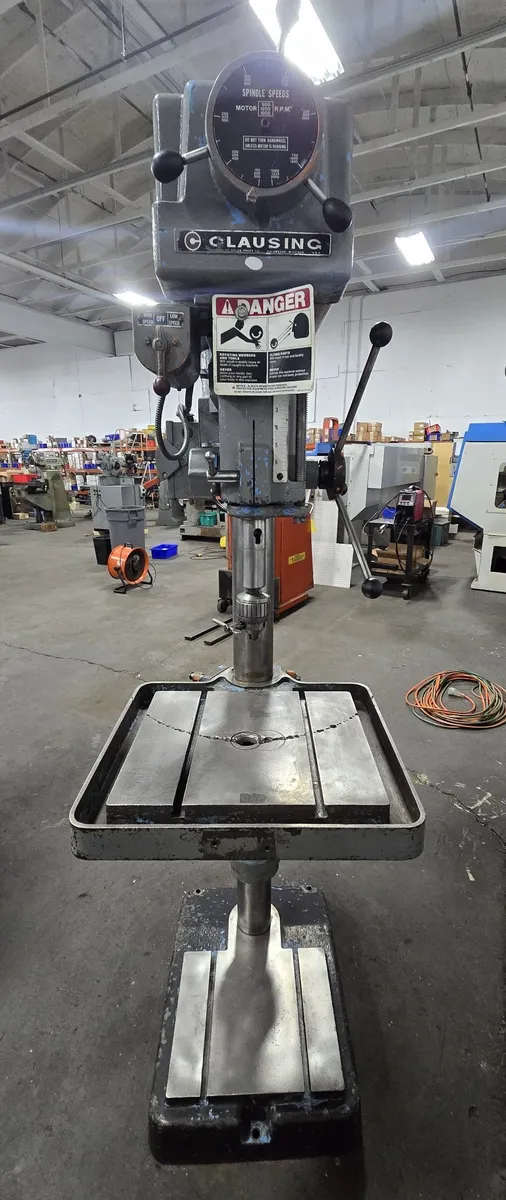

20" Clausing 2276 Single Spindle Drill Press
Have one to sell?
$1,750.00 USD
ConditionUsed
1 available
20" Clausing 2276 single spindle drill press features variable speed (150-2,000 RPM) and can handle up to 1-1/4" diameter in mild steel. Includes a 1-1/2 HP motor, 22"x19.5" table, and 6.5" spindle travel. Excellent for precise and powerful drilling.
Model: Clausing 2276
Machine Style: 20" Floor Drill
Capacity (Hand Feed): 1-1/4" diameter in mild steel
Drilling to Center of Circle: 20" diameter
Spindle Taper: #3 Morse Taper
Spindle Travel: 6.5 inches
Quill Diameter: 2.5 inches
Table Size (Working Surface): 22" x 19.5"
Base Size (Working Surface): 15.5" x 13"
Max Spindle to Table Distance: 33.125"
Max Spindle to Base Distance: 43.375"
Column Diameter: 4 inches
Variable Speed Range: 150 - 1,000 RPM (low range) and 300 - 2,000 RPM (high range)
Motor: 1-1/2 HP / 3/4 HP two-speed motor
Weight: Approximately 700 lbs
Located in 4E
