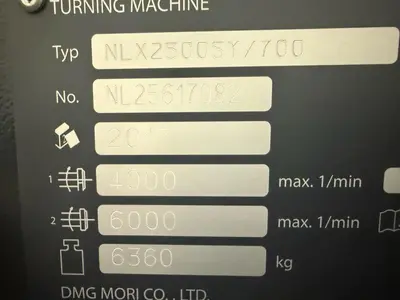

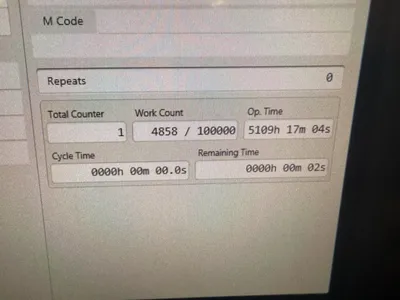

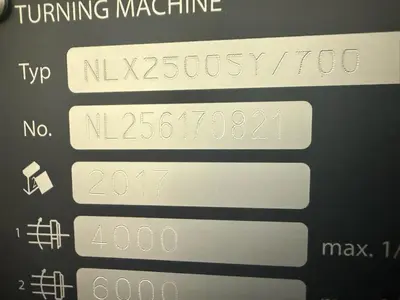

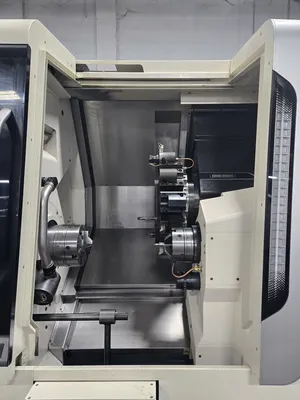

2017 DMG MORI NLX 2500SY/700 5-Axis CNC Turning Center w/Low Hours

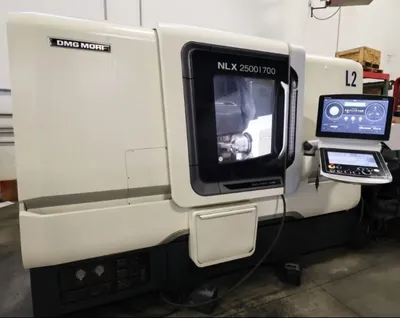

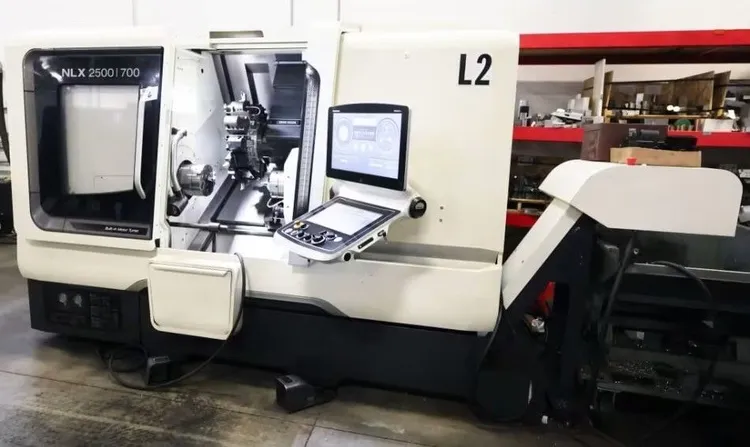

2017 DMG MORI NLX 2500SY/700 5-Axis CNC Turning Center

SPECIFICATIONS:

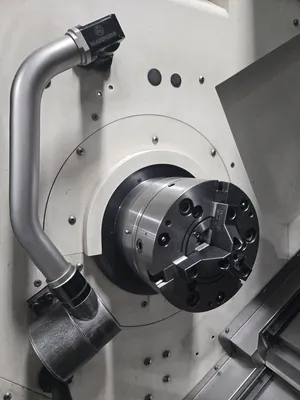

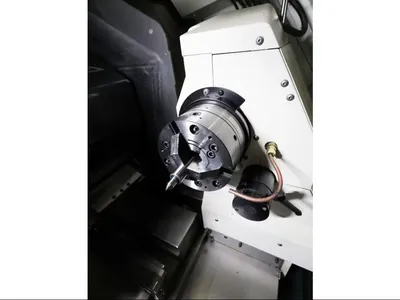

Chuck Size Main/Sub 10”/6” 3 Jaw Hydraulic Power Chuck
Swing Over Bed: 36.4"
Swing Over Front Cover: 29.7"
Max. Turning Diameter: 14"
Max. Turning Length: 27.7"
Bar Work Capacity: 3.1"
X Axis Travel: 10.2"
Y Axis Travel: 3.9<+/-2.
Z-Axis Travel: 31.3"
Headstock 2 Travel B-Axis: 28.9"
Max. Spindle Speed, Main: 4,000 RPM
Max. Spindle Speed , Sub: 6,000 RPM
Thru Spindle Hole Dia., Main: 3.6"
Thru Spindle Hole Dial, Sub: 1.7"
Number of Tool Stations: 12
Max. Rotary Tool Speed: 10,000 RPM
Rapid Traverse Rate X,Z,B: 1,181 IPM
Rapid Traverse Rate Y: 393.7 IPM
Rapid Traverse Rate C: 400 Min.

Equipped With:

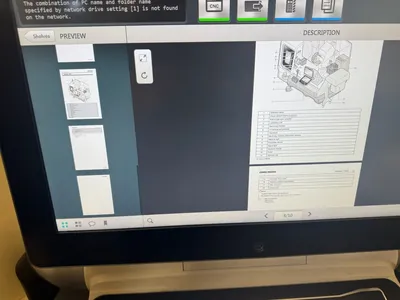

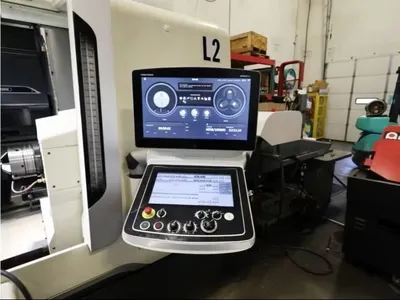

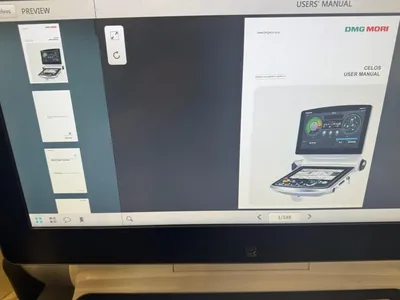

Celos ERGOline Mitsubishi M-730UM Control

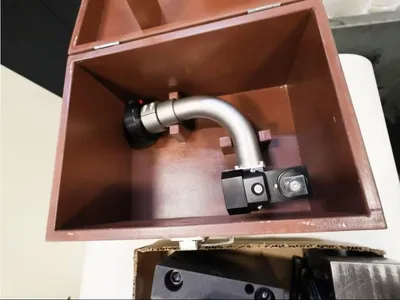

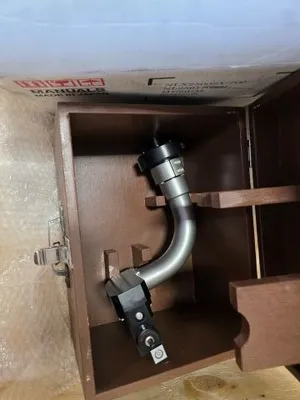

Tool Presetter for Main and Sub Spindle
Parts Catcher

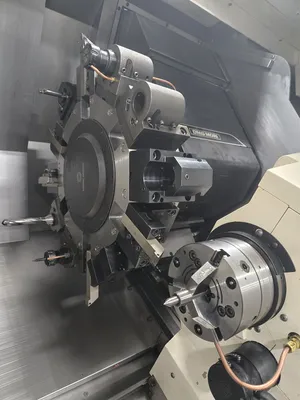

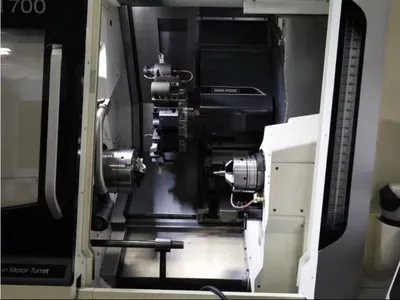

All Live and Turret Tooling as shown in pictures

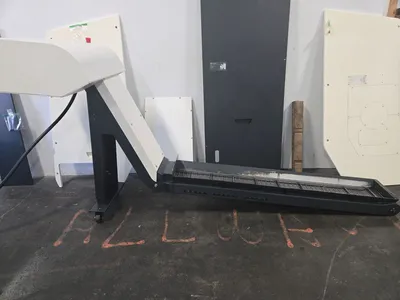

Chip Conveyor
Machine Dimensions: 132" x 83" x 87"
Conveyor Dimensions: 157" x 83" x 60"
Weight: 10,000 Lbs.
