Clausing Kondia FV-1 3HP Mill W/ProtoTrak KMX Control, Kurt PDB

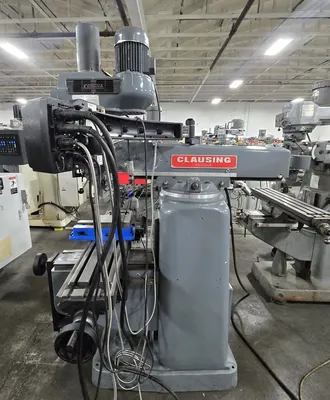

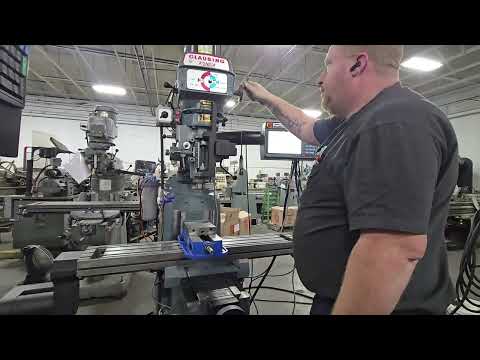

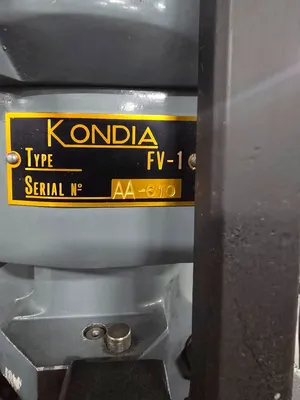

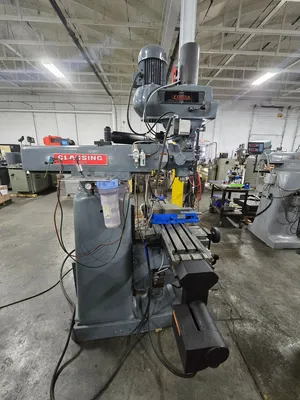

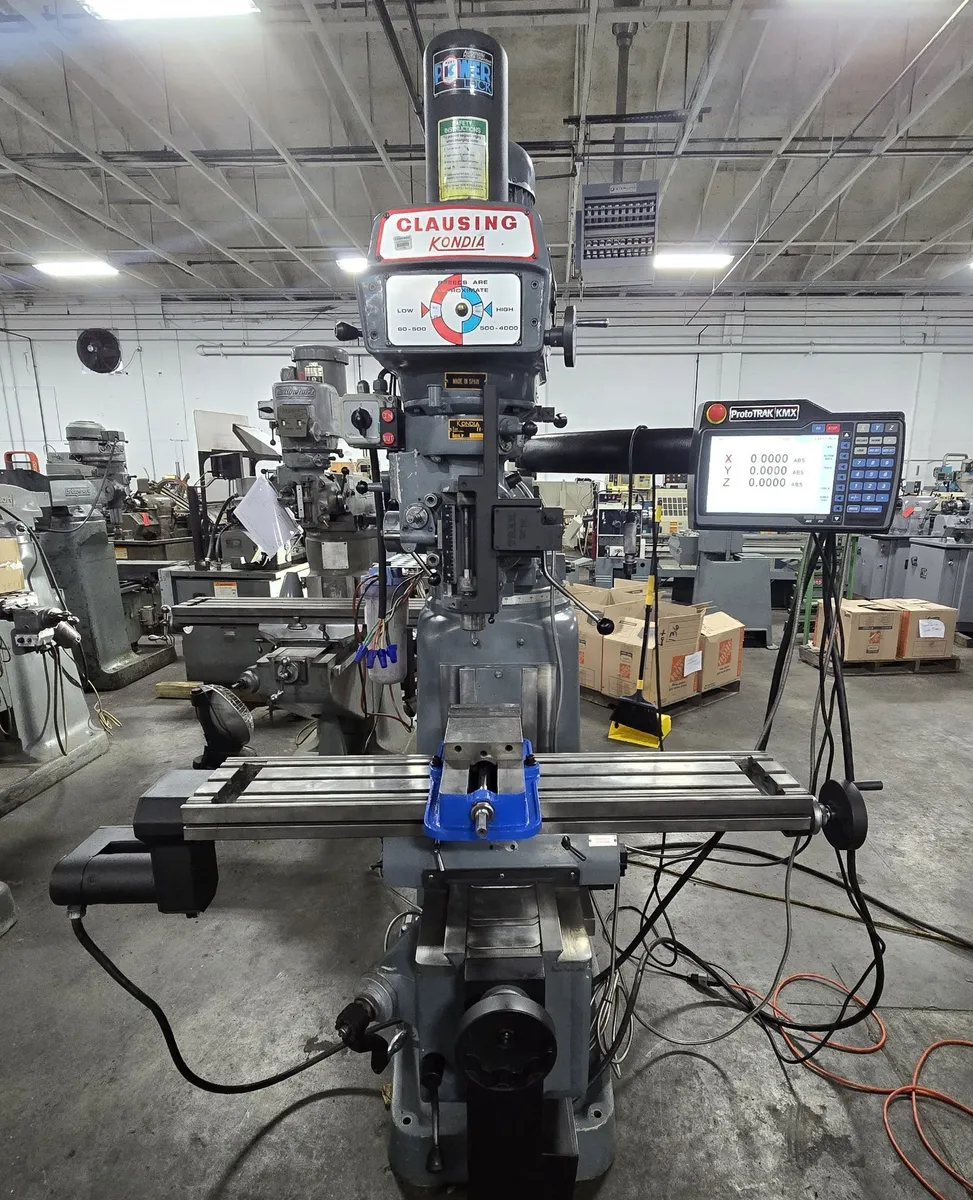

Clausing Kondia FV-1 Vertical Knee Mill W/2023 ProtoTrak KMX Controller
Key Specifications

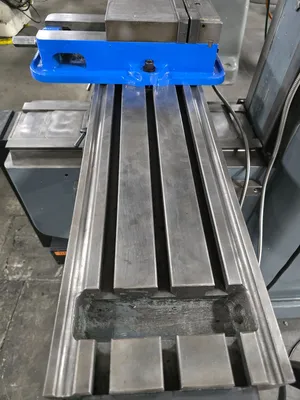

Table Size: 9" x 48"

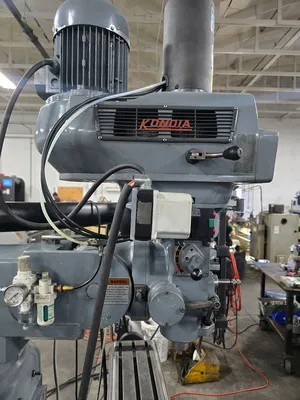

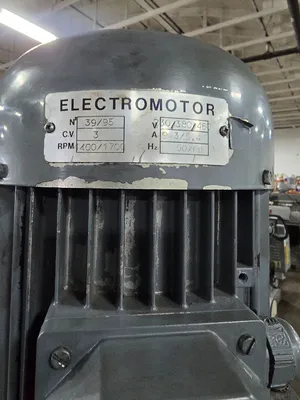

Spindle Horsepower: 3 HP (Rebuilt Top half)
Spindle Taper: R-8
Variable Spindle Speed: 60 – 4,000 RPM
Longitudinal (X) Travel: 36"
Cross (Y) Travel: 15"
Knee (Z) Travel: 16"
Spindle (Quill) Travel: 5"
Quill Feeds: .0015/.0028/.0047 IPR (inches per revolution)
Head Tilt: 90° left/right, 45° front/rear
Approximate Weight: ~3,040-3,500 lbs (varies by source)
Features:

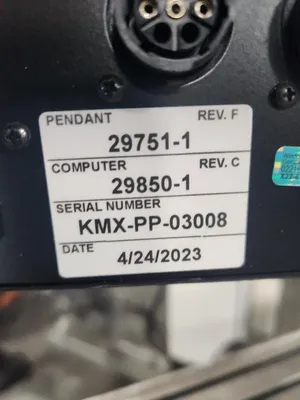

Proto TRAK KMX Controller (New 2023)
Kurt Power Draw Bar
Articulating head for machining compound angles
Power feed on the X, Y, and Z axes(Quill)
Manual operation with handwheels for fine feed and rapid traverse
CNC operation in X and Y axes

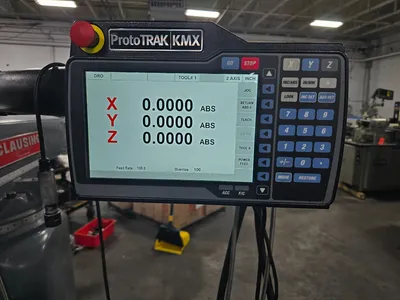

ProtoTRAK KMX CNC
The best CNC ever made for basic CNC needs
Easy to learn and use
Improved Auto Geometry Engine®
Outstanding graphics
Powerful offline programming for using our Advanced Software Options
Can handle quick manual jobs to complex profiling
Powerful Canned Cycles:
Position
Drill
Bolt Hole
Mill
Arc
Face Mill
Circle Pocket
Rectangular Pocket
Irregular Pocket
Circular Pocket
Rectangular Profile
Irregular Profile
Subroutine Repeat
Subroutine Rotate
Subroutine Mirror
Copy Repeat
Copy Rotate
Copy Mirror

Auto Geometry Engine®
Program complex profiles easily with the powerful A.G.E. feature. Enter the information you have and the A.G.E. will calculate missing points for you while you program.
Advanced File Management
Convenient Tool Table
Check Program with Convenient Graphics
View Programmed Toolpath During Program Run
