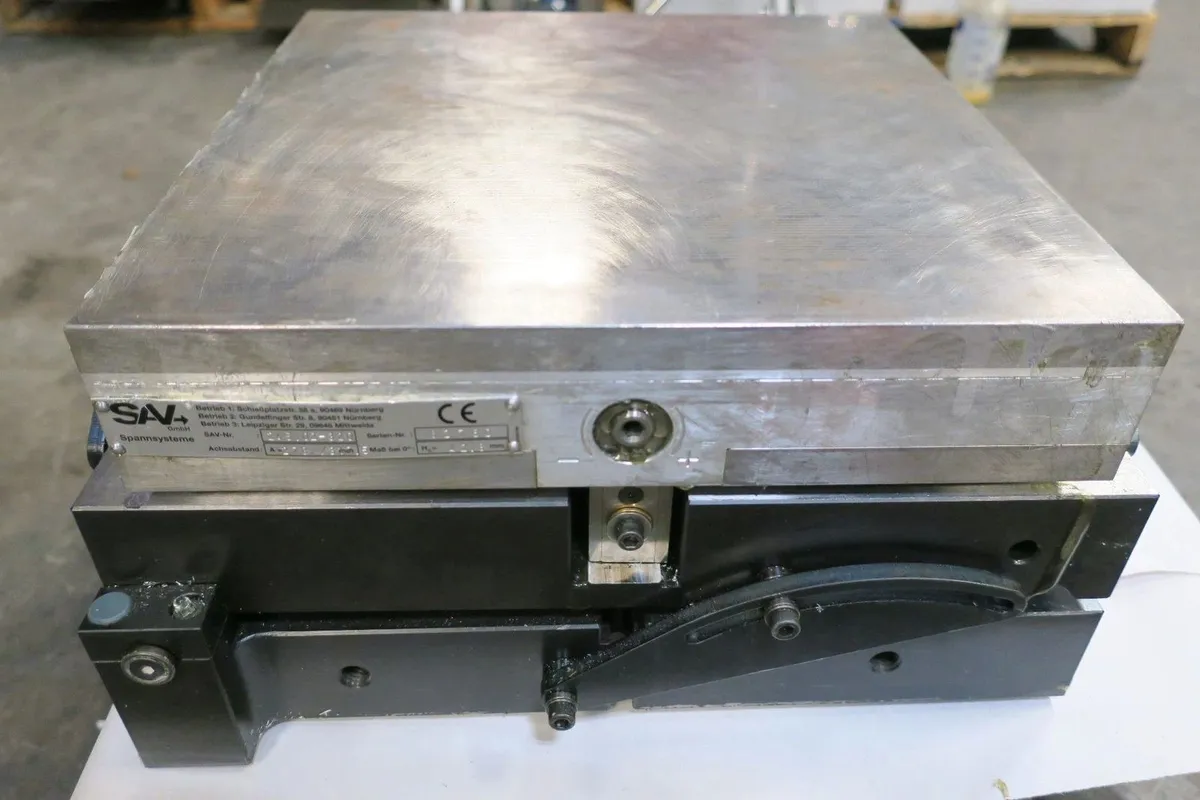

SAV 245.02-320 Precision Magnetic Sine Table. 320mm x 320mm.

SAV 245.02-320 Precision magnetic sine table. 320mm x 320mm.

USED
Swivel about the longitudinal and transverse axis. The base plate of the sine table is made of hardened steel (HRC 60), black-finished and precision ground.

Processing:
flat grinding, circular grinding, milling, turning, drilling, sink erosion, wire erosion, measurement, automation, none
Technical specifications:
Angle precision: ± 5 sec.
Planar parallelism: ± 0.005 / 100 mm
Shimming measure at 0°: 3 mm
Angle range longitudinal axis: 0° to 45°
Angle range transversal axis: 0° to 30°
Nominal holding force: 80 N/cm2
Pole pitch: 1.9 mm
Magnetic field height: 6 mm
Pole plate wearing limit: 8 mm
