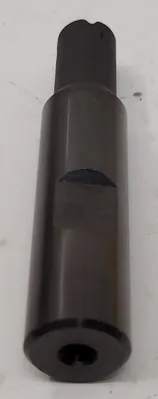

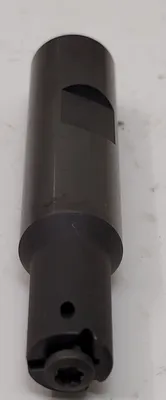

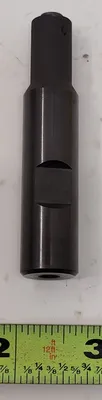

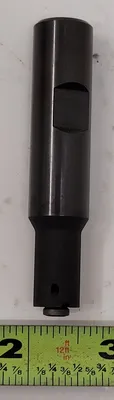

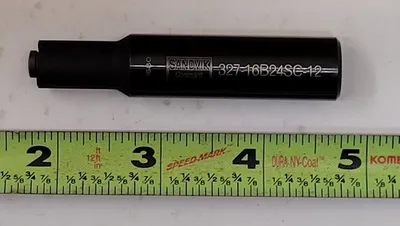

Sandvik Coromant 327-16B24SC-12 Adaptor

Sandvik Coromant 327-16B24SC-12 Adaptor

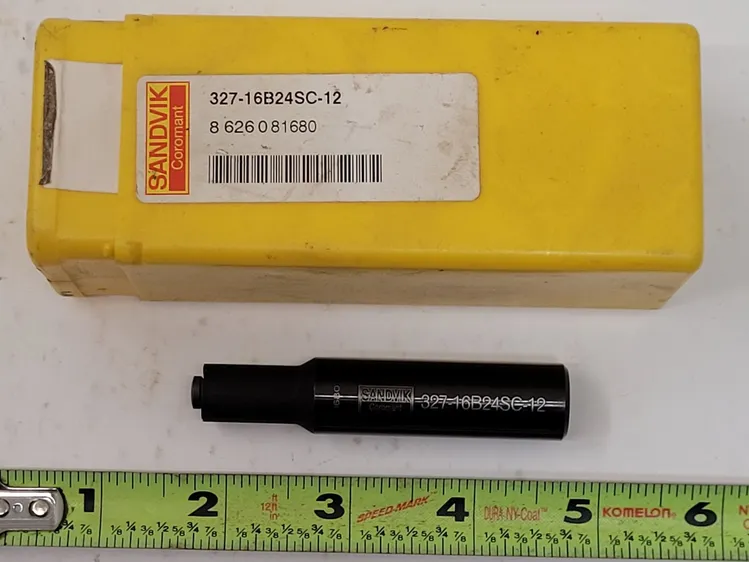

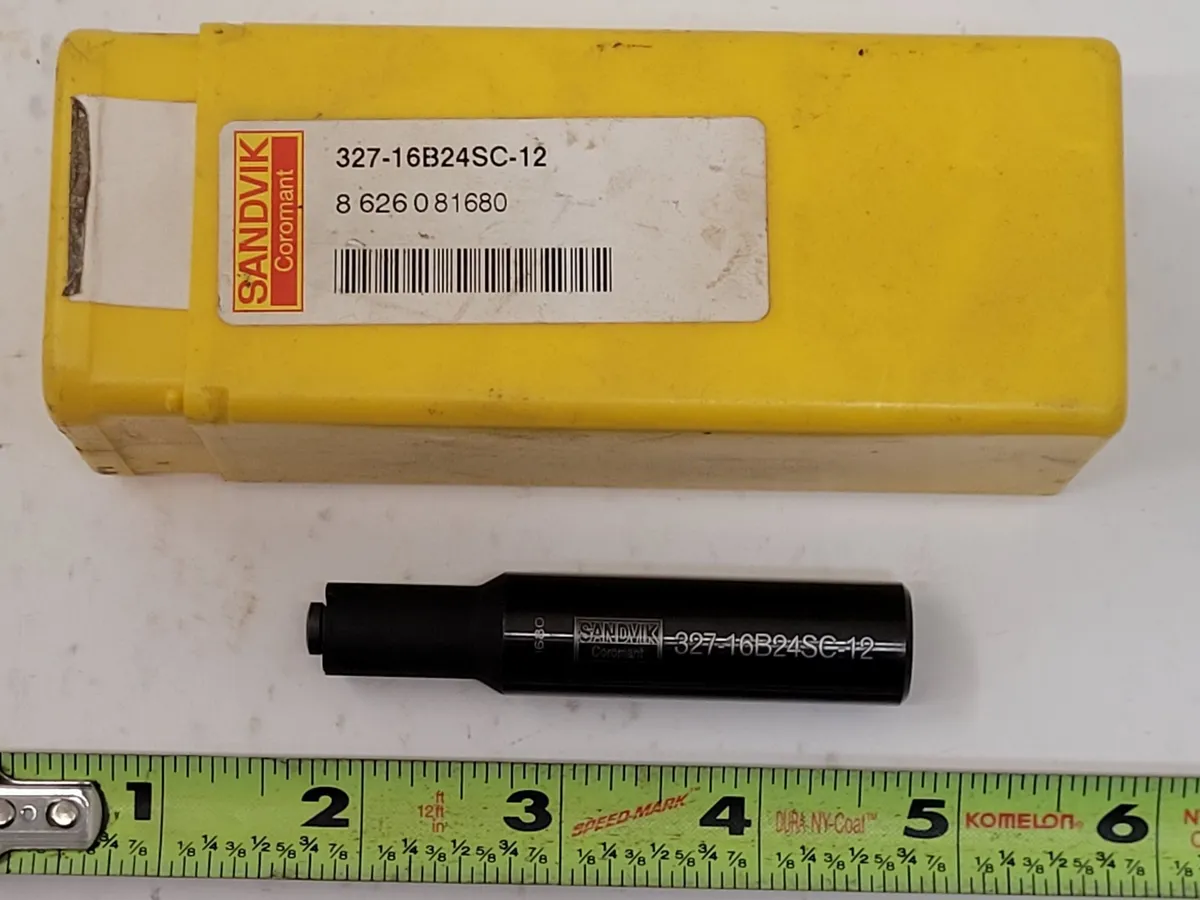

Still in Box!
Brand: Sandvik Coromant
Part Number: 327-16B24SC-12
Tool Type: Adaptor w/ Weldon Coupling to CoroMill 327

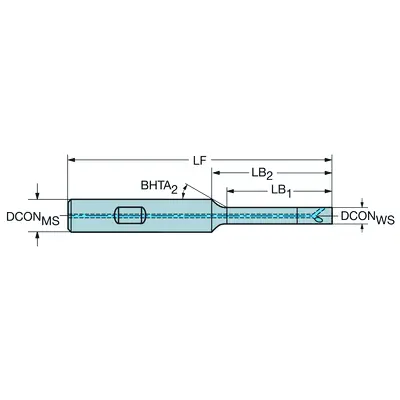

Connection diameter workpiece side(DCONWS): 0.4724 inch
Kappa (z-axis rot)(KAP): 0 °
Functional length(LF): 2.9252 inch
Body diameter(BD_1): 0.4724 inch
Body diameter(BD_2): 0.4724 inch
Body length(LB_1): 0.7205 inch
Body length(LB_2): 0.878 inch
Body half taper angle(BHTA_1): 0 °
Body half taper angle(BHTA_2): 30 °
Torque(TQ): 4.7942 ftlbf
Rotational speed maximum(RPMX): 40,000 1/min
Body material(BMC): Steel
Balancing method code(BLMC): No balancing
Overall length(OAL): 2.9252 inch

Connection - machine side: Weldon (DIN6535-HB) -metric: 16
Connection diameter tolerance: g6
Connection - workpiece side: CoroMill 327 -size 12
Coolant entry style: axial concentric entry
Coolant exit style: axial inclined exit
Coolant pressure: 290.0755 lbf/in2
Connection diameter machine side(DCONMS): 0.6299 inch
