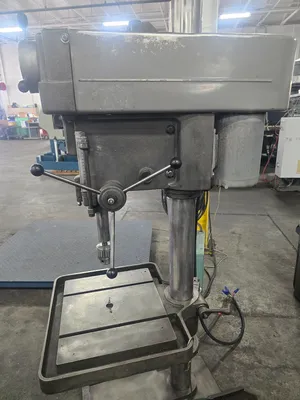

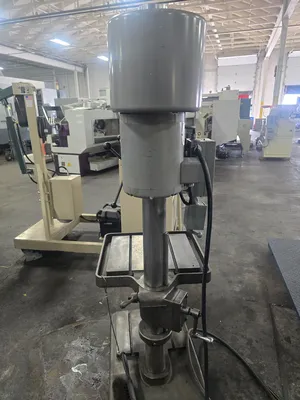

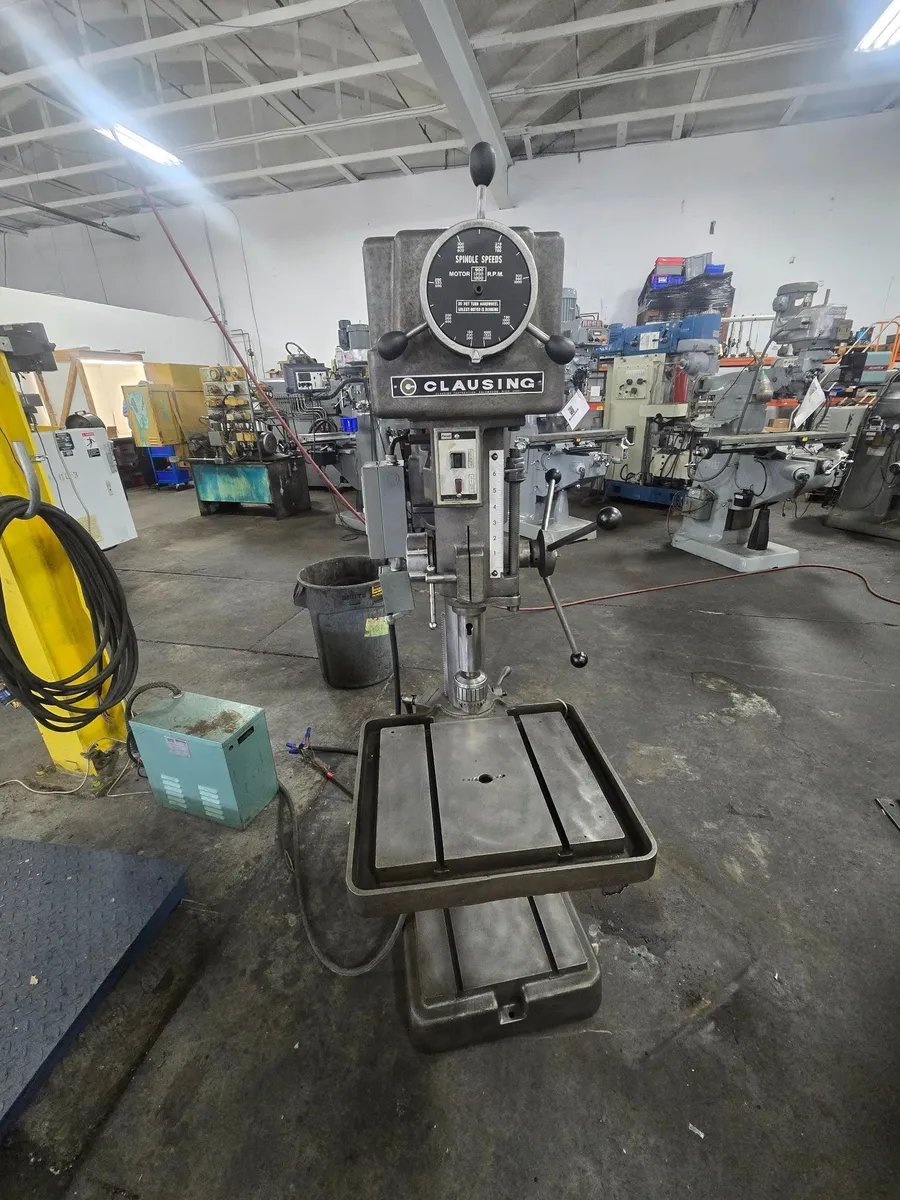

20" Clausing 2275 Single Spindle Drill Press

The Clausing Model 2275 is a 20-inch, heavy-duty, floor-style drill press with a 1.5 HP motor and a variable speed drive system, offering a speed range of approximately 200-1333 RPM.
Key features include a precision ground 22" x 19.5" adjustable table, a rigid 4" diameter steel column, a 2.5" diameter quill with a 6.5" travel, and a #3 MT (Morse Taper) spindle.
It's designed for heavy-duty use in steel and cast iron, with a 7/8" capacity in mild steel.

Key Specifications

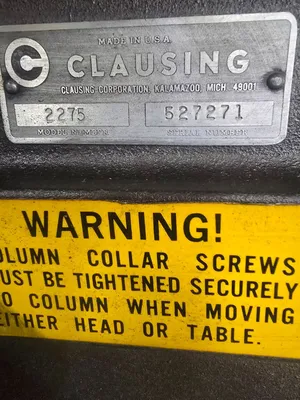

Model: 2275
Type: Floor-style Drill Press
Swing: 20 inches
Spindle Taper: #3 MT (Morse Taper)
Spindle Travel: 6.5 inches
Quill Diameter: 2.5 inches
Column Diameter: 4 inches
Motor: 1.5 HP
Speed Range: Typically 200-1333 RPM, though variations exist

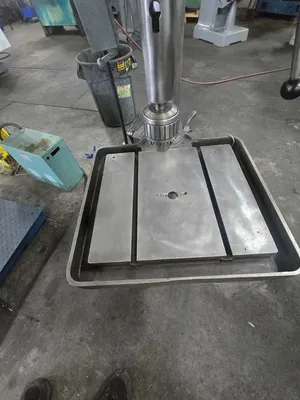

Table Size: 22" x 19.5"

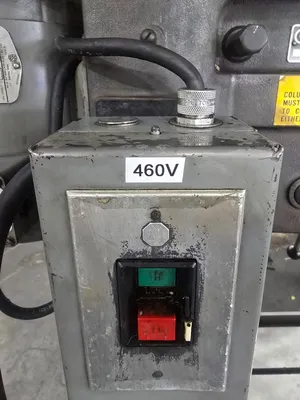

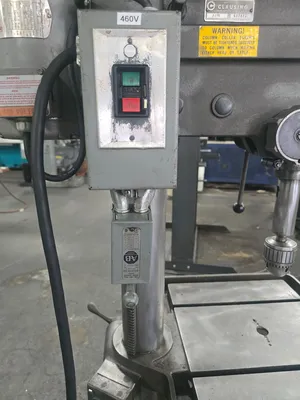

Electrical: 460V/3PH, 208-230/460V 3 Phase Wired 460V
Approx. Shipping Weight: Around 750 lbs
