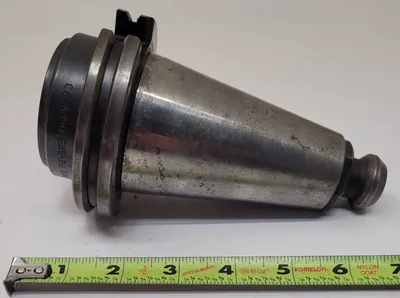

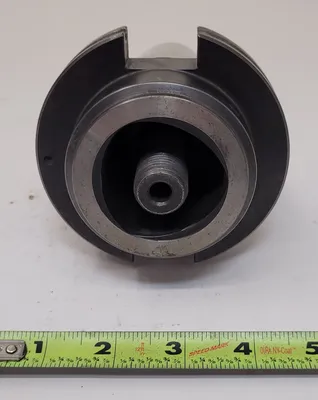

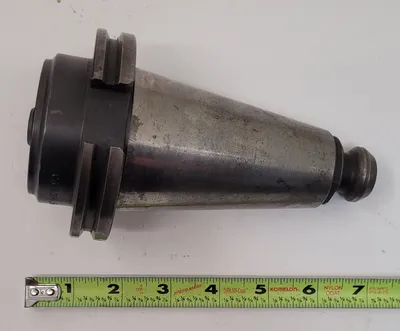

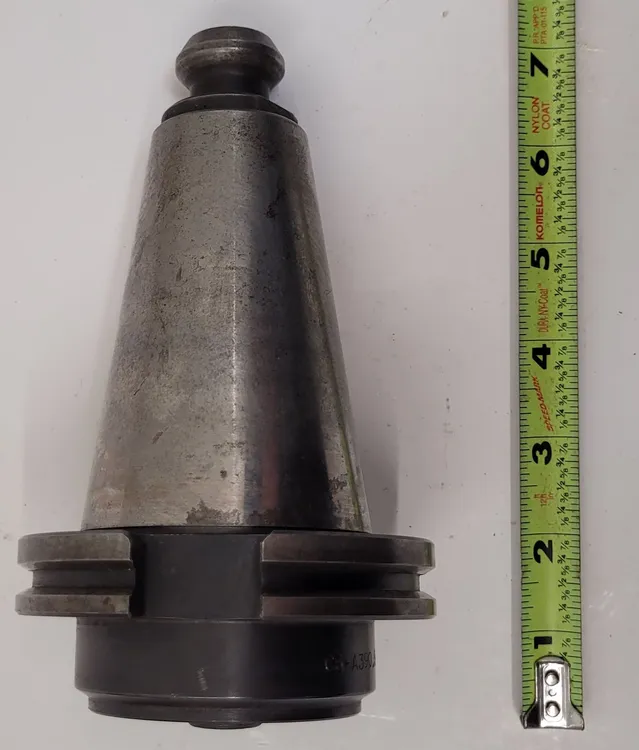

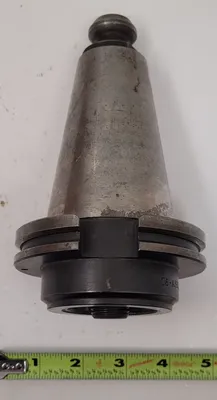

SANDVIK C6-A390.545-50 040 - CAT50 TOOL HOLDER - CAPTO C6

SANDVIK C6-A390.545-50 040 MODULAR TOOL HOLDER CAPTO C6

USED
Brand: Sandvik

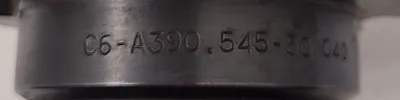

Part Number: C6-A390.545-50 040
Type: Modular Tool Holder
Connection: Capto C6
Taper: CAT50
Functional diameter (DFC): 1.7323 inch
Connection retention knob thread size (CRKS): Inch 1"-8
Connection diameter workpiece side (DCONWS): 2.4803 inch
Functional length(LF): 1.5748 inch
Body diameter(BD_1): 2.4803 inch
Body diameter(BD_2): 2.4803 inch
Body diameter(BD_3): 2.7598 inch
Body diameter(BD_4): 3.874 inch
Body length(LB_1): 0.1181 inch
Body length(LB_2): 0.1969 inch
Body length(LB_3): 0.8228 inch
Body length(LB_4): 1.5748 inch
Overall length(OAL): 5.5827 inch
