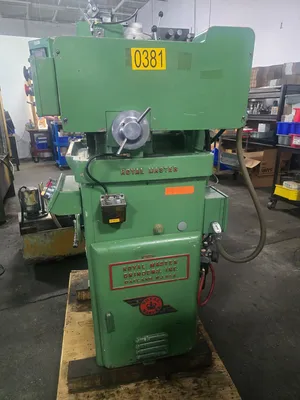

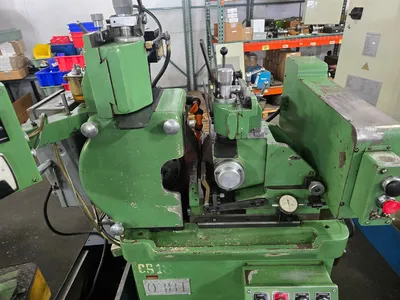

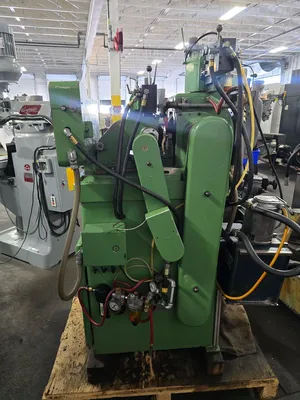

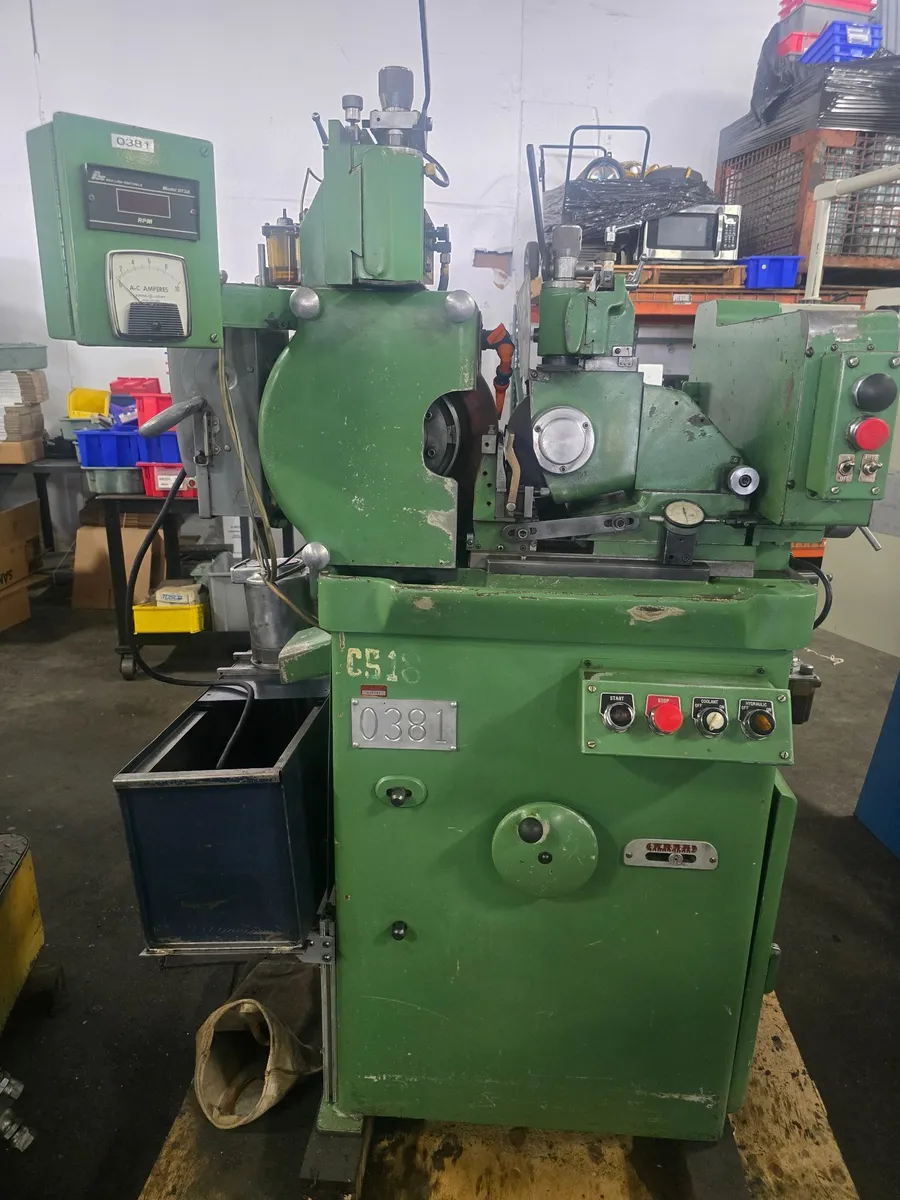

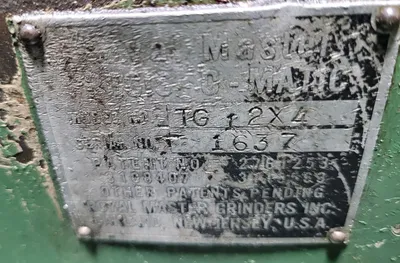

Royal Master TG-12X4 Centerless Grinder

Royal Master TG-12X4 Centerless Grinder

STANDARD SPECIFICATIONS
CAPACITY
In feed……………………………………………………………. 0.004” to 1.5” dia
Thru feed…………………………………………………………. 0.004” to 1.5” dia
Length…………………………………………...………………. 12 ft on .5” dia

WHEELS
Grinding Wheel (max)…………………………………………....12” dia x 4” wide
Grinding Wheel (min)…………………………………………… 10” dia x ” wide
Regulating Wheel (max)…………………...……………………. 6” dia x 4” wide
Regulating Wheel (min)…………….…………………………… ” wide with spool

SPINDLE SPEEDS
Grinding Wheel……………………………..…………………… 2,040 RPM (constant)
Regulating Wheel………………………………………………... 25 to 480 RPM (varies)

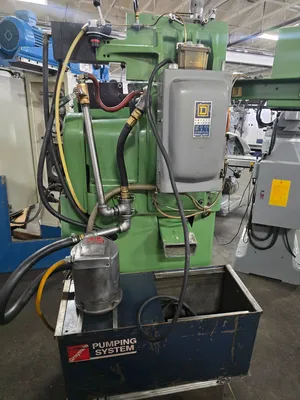

COOLANT EQUIPMENT
Coolant Tank (3 stage)………………………………………….. 40 gallons

DIAMOND TOOLS
Wheel……………………………………………………………. 10” dia (min)
Work Wheel Dresser…..………………………………………… 1 ct. Part# TG 199 105
Regulating Wheel Dresser……………………………………….. 1/3 ct. Part# TG 222 50

FLOOR SPACE………………………………………………….24”x 48”

WEIGHT
Approximate Weight……………………………………………. 2,000 lbs.

MOTOR
Main Drive………………………………...7.5 HP, 1,725 RPM, double end spindle

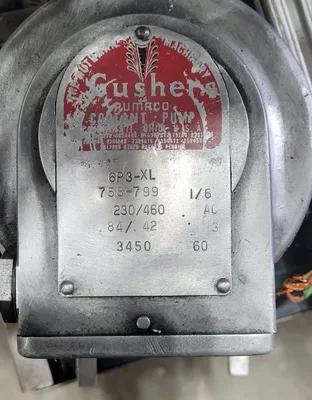

Coolant Pump……………………………...1/6 HP, 3,450 RPM, 12 gal. per min. at 5 PSI

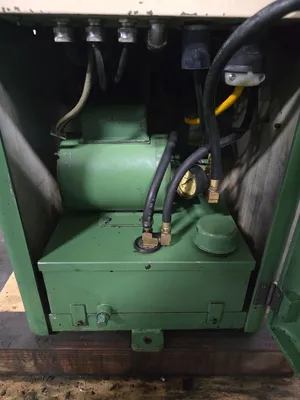

Hydraulic Pump…………………………… HP, 1,725 RPM, .5 gal. per min.at 150 PSI
Hydraulic Tank…………………………… 3 to 3 gallons of Mobil DTE-24

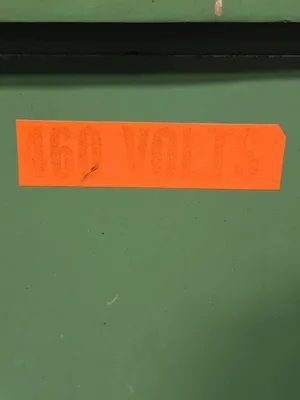

Wired 460V 3 Phase

EQUIPMENT FEATURES
In feed work rest.
Thru feed work rest.
Coolant tank pump.

Specifications are deemed accurate, however, subject to verification or prior sale.
