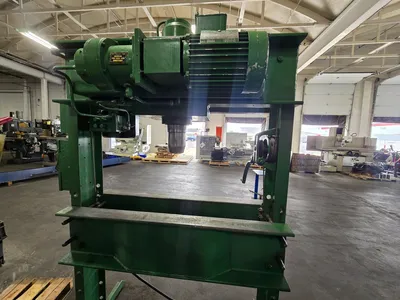

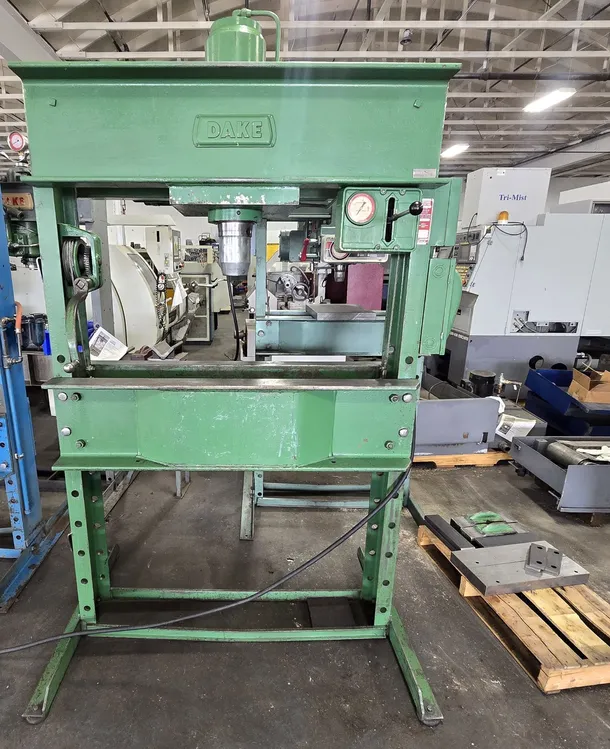

Dake 75 Ton Electric-Hydraulic H Frame Press Model 908075

The Dake 908075 press is a 75-ton, dual-acting, electric-hydraulic H-frame press with a 2 HP motor and a 10-inch ram stroke.
Key specifications include a 44-inch width between uprights, an 8 1/4-inch width between table channels, a maximum daylight opening of 33 inches, and a 5 IPM pressing speed.
Its approximate dimensions are 55.5 inches long x 36 inches wide x 86 inches high, with a weight of about 1,950 lbs.
Dake 75 Ton Electric-Hydraulic H Frame Press Model 908075
General Specifications:

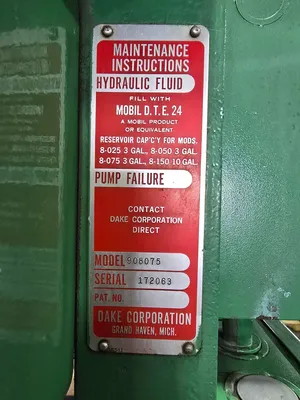

Model Number: 908075 (also listed as 8-075)
Press Type: Electric-hydraulic
Capacity: 75 tons (pressing), 28 tons (pulling)

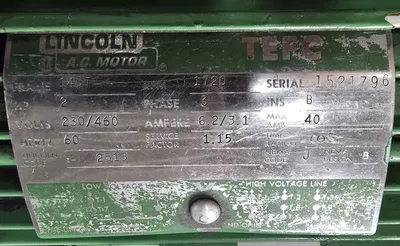

Motor: 2 HP
Voltage: 220V or 440V, 3-phase- Currently wired for 440V
Frame & Bed
Width Between Uprights: 44 inches
Width Between Table Channels: 8 1/4 inches
Footprint/Base: Approximately 55.5 x 36 inches
Overall Height: Approximately 86 inches

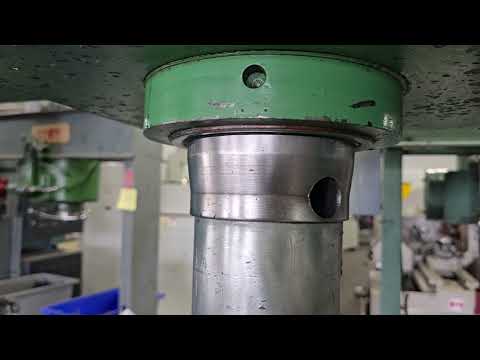

Ram & Workhead
Ram Stroke: 10 inches
Max. Daylight Opening: 33 inches
Ram Travel Speed: 5 IPM (inches per minute)
Weight
Approximate Machine Weight: 1,950 lbs
