JAFO/TOOLMEX FWR 40J2 Universal Horizontal Mill, used. Table: 15.75"x55.12", Long Travel: 39.37", Cross Travel: 13.78". Power: 9.8 hp, RPM: 2,500, Taper: ISO 50 DIN 2080. Versatile with motorized overarm, uniswivel head, and digital screen.

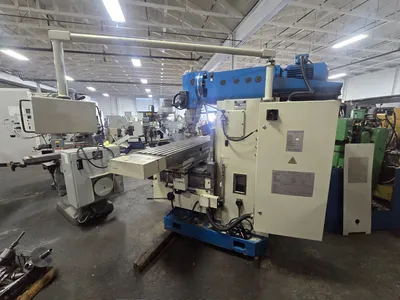

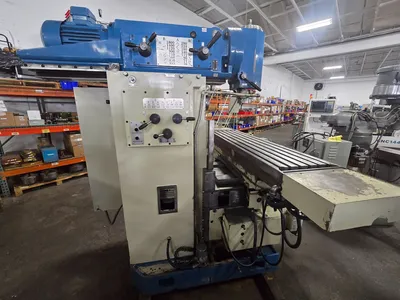

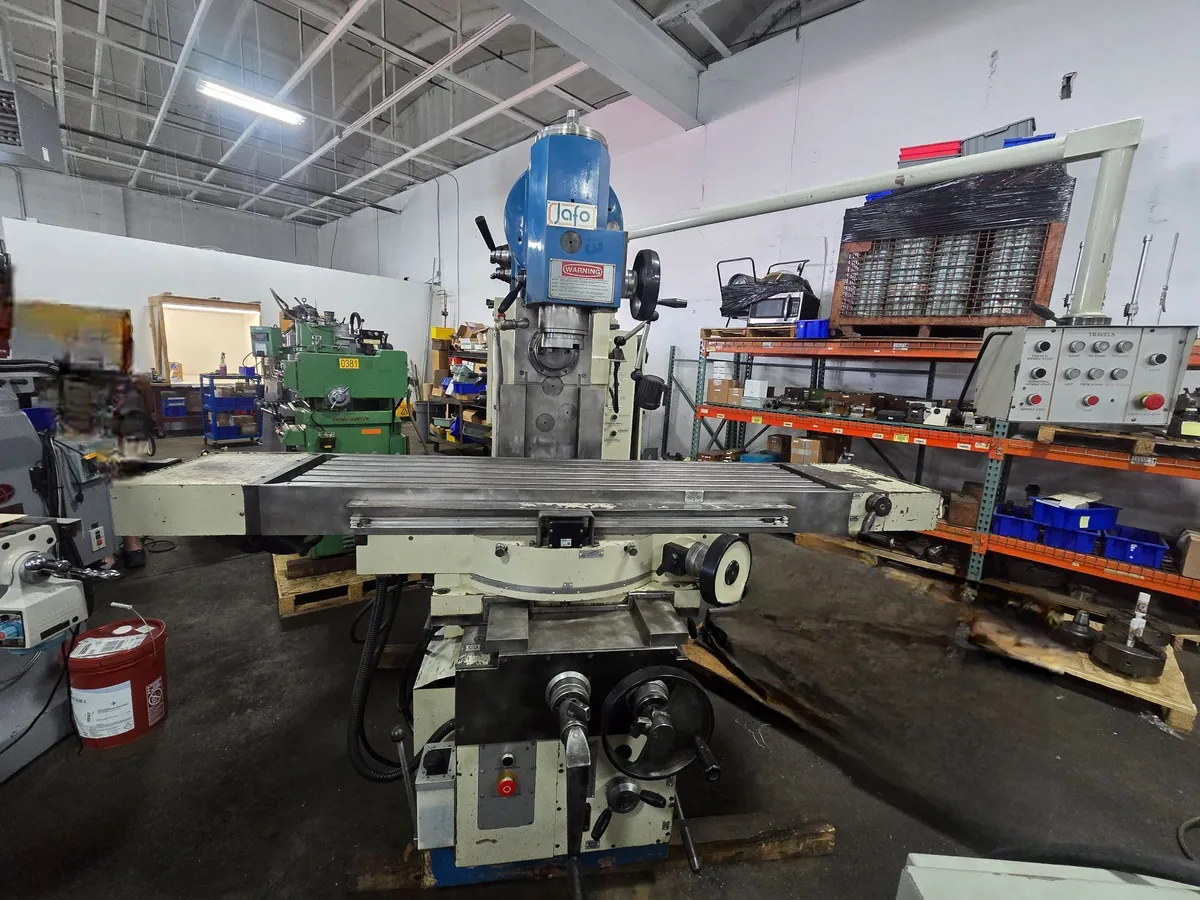

The JAFO/TOOLMEX Model FWR 40J2 is a universal horizontal milling machine with a table size of 400x1400mm.

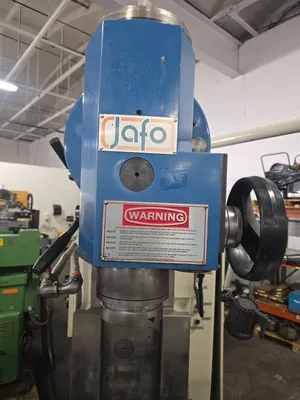

It features a motorized overarm with its own spindle drive and a Uni-Swivel head (J2).
The horizontal spindle has 16 gear steps with speeds ranging from 56-1800 rpm and a ISO 50 DIN 2080 taper.
The machine also offers stepless speed adjustment for the vertical spindle, with speeds ranging from 70-2500 rpm and an ISO 50 DIN 2080 taper, along with stepless feeds adjustment
The JAFO/TOOLMEX Model FWR 40J2 Universal Horizontal Mill is a versatile machine with the following specifications:
Type: Universal milling machine with a motorized overarm and a uniswivel head J2.

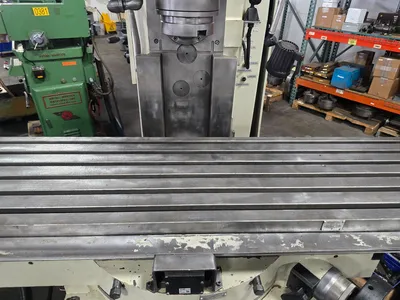

Table Size: 400x1400mm.
Spindle Taper: ISO 50 DIN 2080 for both horizontal and vertical spindles.

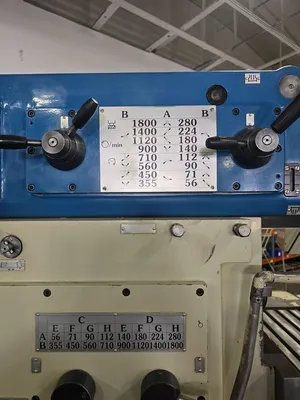

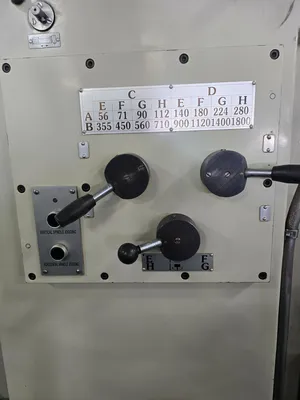

Spindle Speed (Horizontal): 16 gear steps with a range of 56-1800 rpm.
Spindle Speed (Vertical): Stepless adjustment with a range of 70-2500 rpm.
Feeds: Stepless adjustment for all axes.
Power: 7.3 pk on the spindle.
Max Longitudinal Travel (X-axis): 1000 mm.
Max Cross Travel (Y-axis): 350 mm.
Max Vertical Travel (Z-axis): 500 mm.
Max Workpiece Height: 750 mm.
Boring Head: 2 x 90° swivel.
Max Quill Travel (Z'): 150 mm.
Admission in Boring Head (ISO): ISO 50.
Table Turning Angle: 45°.

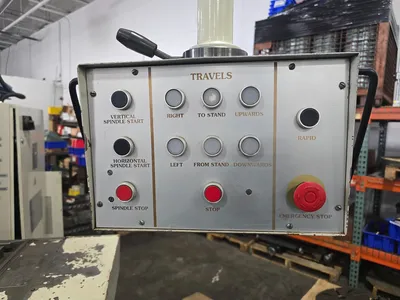

Control: Manual and mechanical.
Digital Screen: Wizard 3.

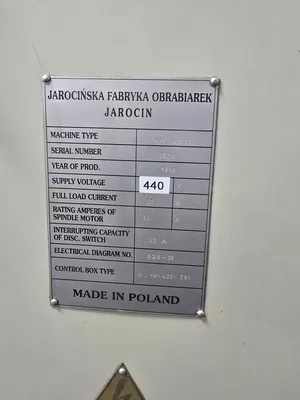

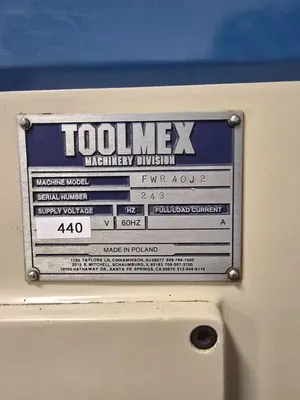

Power Needed: 3x380V.
Dimensions: Length: 2200 mm, Depth: 2600 mm, Height: 2100 mm.
Weight: 3600 kg.

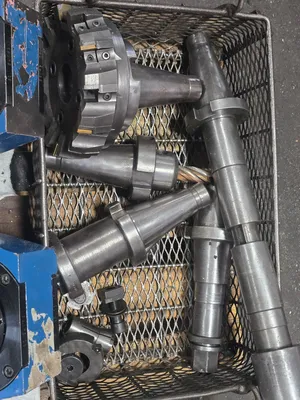

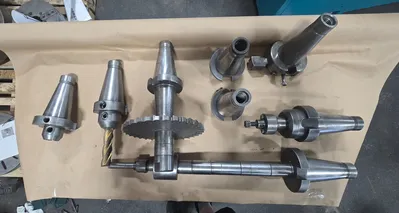

Accessories: Includes a Coolant Pump, Various Tooling.
Note: Some sources may list slightly different specifications depending on the exact model year or potential customizations.
Always refer to the specific machine's documentation for the most accurate details
