Sandvik 570-SDXCL-32-11 CoroTurn 107 Head for Turning

Sandvik 570-SDXCL-32-11 CoroTurn 107 Head for Turning

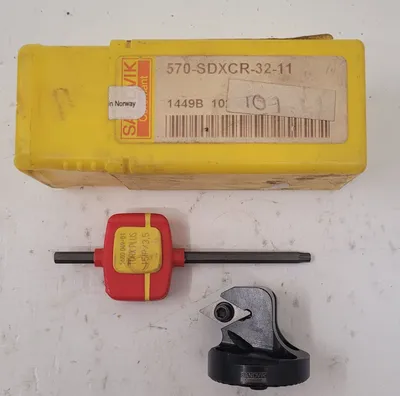

Still in Box!
Brand: Sandvik Coromant
Part Number: 570-SDXCL-32-11

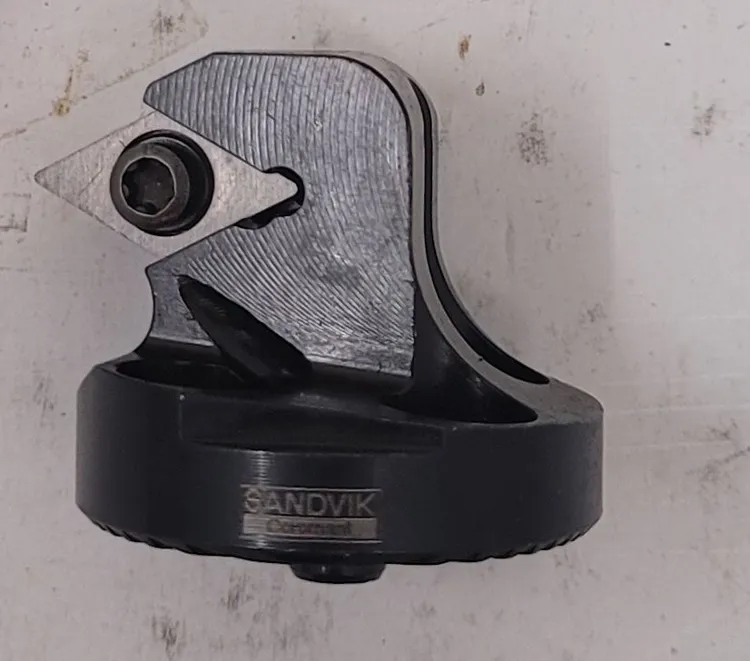

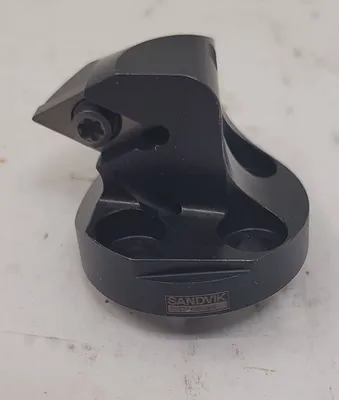

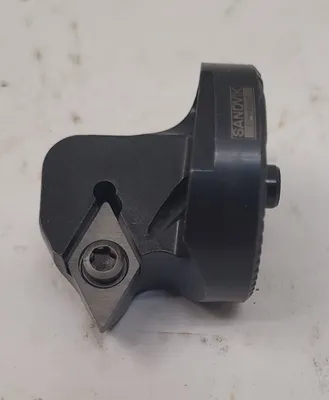

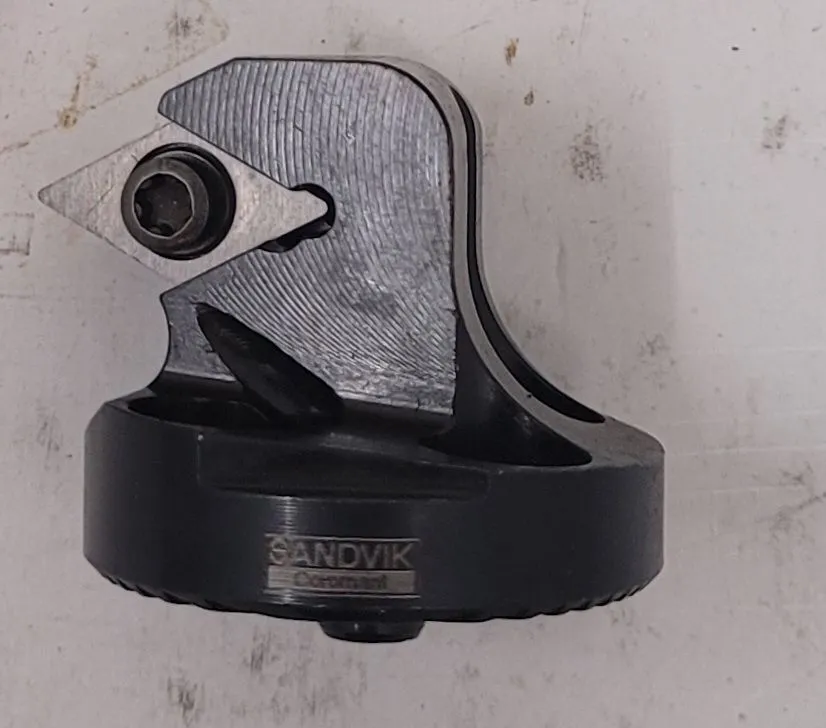

CoroTurn 107 Head for Turning

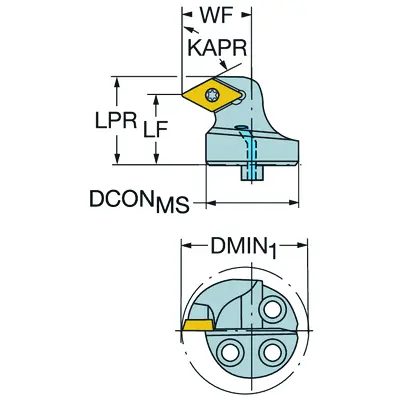

Diagram in photos for below specs:
Tool cutting edge angle(KAPR_1): 62.5 °
Tool cutting edge angle(KAPR_2): 62.5 °
Lead angle(PSIR): 27.5 °
Maximum ramping angle (RMPX): 60 °
Minimum bore diameter (DMIN_1): 1.5748 inch
Maximum overhang (OHX): 0.7874 inch
Hand: Right
Connection diameter machine side(DCONMS): 1.2598 inch
Protruding length(LPR): 1.1024 inch
Functional length(LF): 0.7874 inch
Functional width(WF): 0.8661 inch
Overall length(OAL): 1.252 inch
