Kennametal BT30TG075075M - CAT 30 Taper – Collet Chuck
Have one to sell?
ConditionUsed
1 available

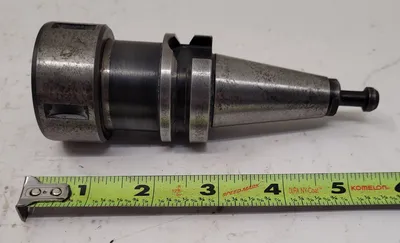

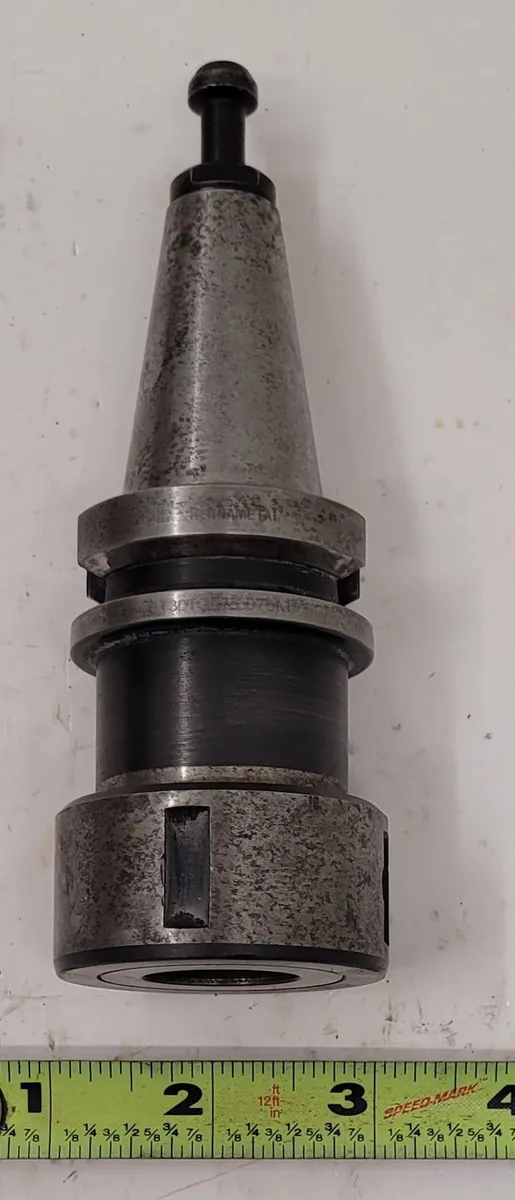

Kennametal BT30TG075075M CAT 30 Taper collet chuck, used but functional. Features CAT 30 taper size, TG75 collet series, 50mm lock nut diameter, and 75mm gage length. Precision tooling and accessories. See spec sheet for full details.
Kennametal BT30TG075075M - CAT 30 Taper – Collet Chuck

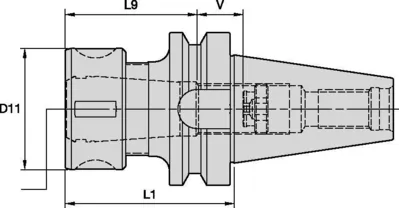

USED - Diagram in photos for reference for below specs.
Brand: Kennametal

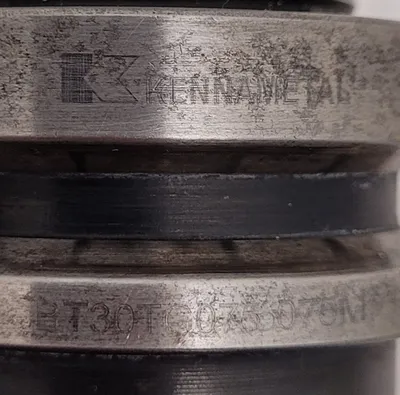

Part Number: BT30TG075075M
Shank Type Taper
Taper Size CAT 30
Catalog Collet Series TG75
[D11] Lock Nut Diameter 50 mm
[L1] Gage Length 75 mm
[L9] Clamping Length 55 mm
[V] Adjustment Range 17 mm
Torque Catalog Newton Meters 136
Stop Screw ID Drive Size 4 mm & 5/32
