| Max Thickness | 0.188" | 4.7752 mm |
| Length of Blade | 48" | 1,219.2 mm |
| Hyd/Mech | 'Hyd' | 'Hyd' |
| Back Gauge | 24" | 609.6 mm |
| Power | 3 hp | 2.2 kW |
| SPM | 60 strokes/min. | 60 strokes/min. |

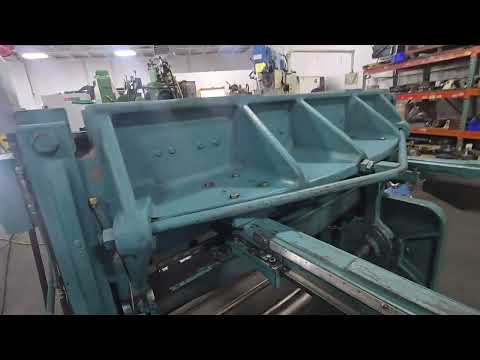

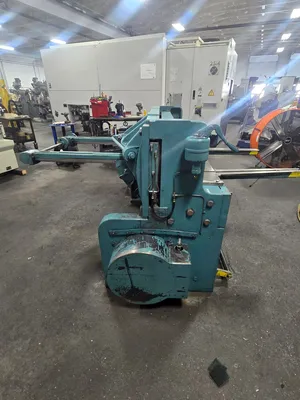

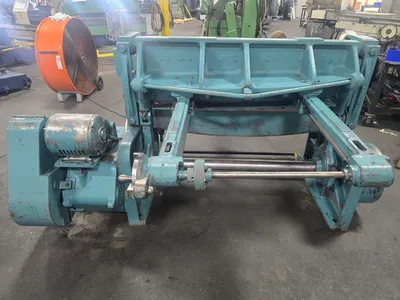

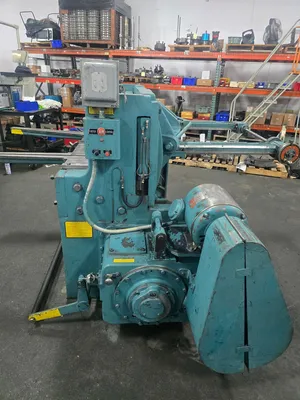

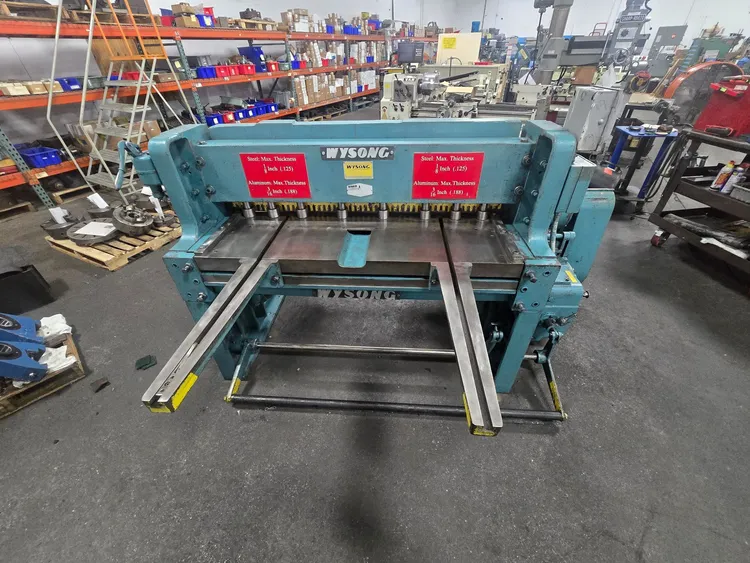

WYSONG 48” HYDRAULIC METAL SHEAR Model 1048 Specifications
Capacity:
Maximum Width of Cut: 48 inches.
Maximum Length of Cut: 24 inches.
Maximum Thickness:
Aluminum: 0.188 inches
Steel: 0.125 inches
3 HP Motor
The shear operates at 60 strokes per minute.
Features:

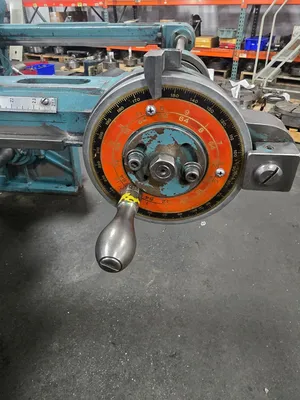

The shear includes a 24" back fence for precise cuts.
It features a robust, high-tensile frame and bed construction.
The T-shaped ram has reinforcing ribs and operates within a non-metallic gibbing system.
Additional features include an adjustable holddown, safety guards, a four-edge blade with 8-point adjustment, and a totally enclosed transmission.
It is equipped with a nine-jaw clutch, cam-operated brake, air filter and regulator, electro-pneumatic clutch control, and a remote foot switch.

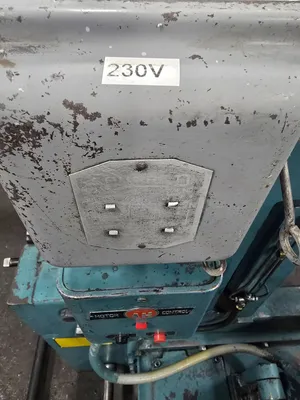

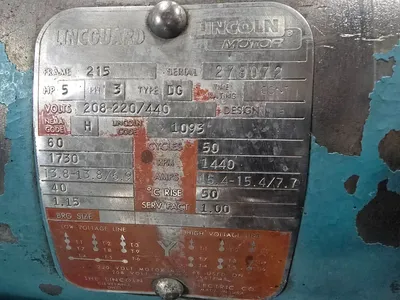

The motor is 1730 RPM, 3 phase, 60 Hz, 230.
80" L x 60" W x 60" 4500lbs
