This Rekord CK 300-TH has two grinding heads for simultaneously grinding both bevels up to 90° inclusive at once for burr-free finishing. Ability to grind single bevel knives from -10° to +70° bevel angles. Automatic knife rotation driven by geared motor at 14 RPM.

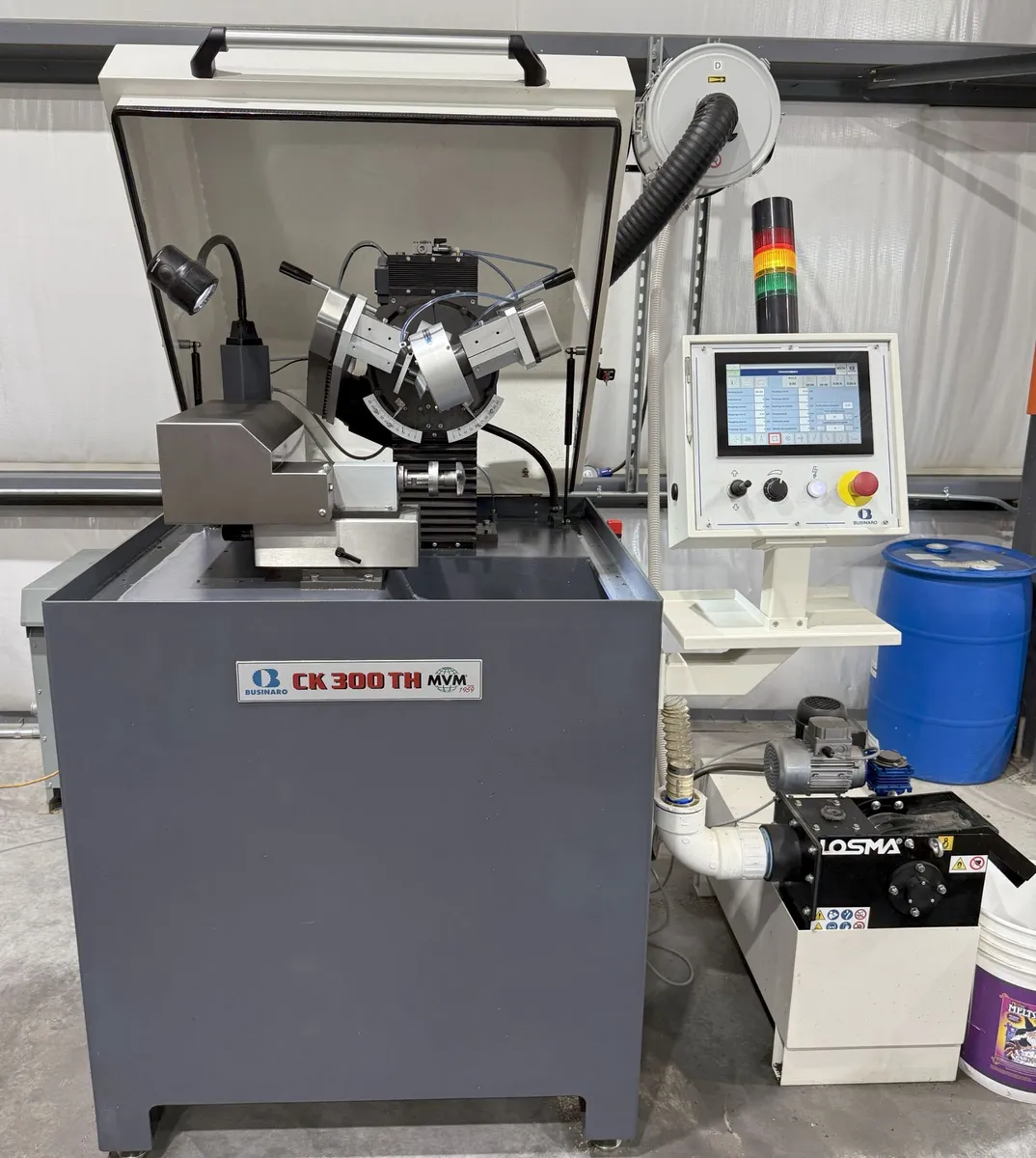

2024 Rekord CK 300-TH Twin Head Grinder up to 12″

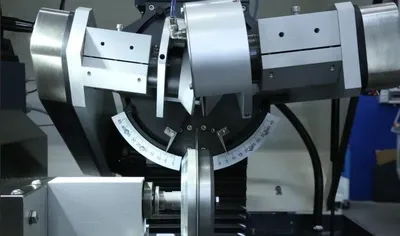

Two grinding heads for simultaneously grinding both bevels up to 90° inclusive at once for burr-free finishing.
Ability to grind single bevel knives from -10° to +70° bevel angles.
Automatic knife rotation driven by geared motor at 14 RPM.
Machine PLC controlled
Cabin for full working area enclosure

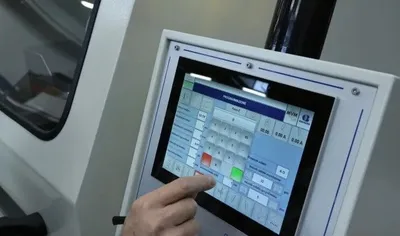

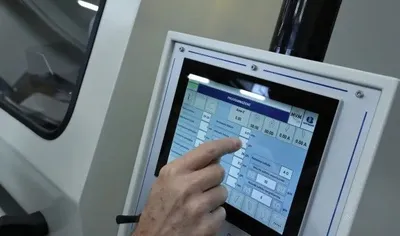

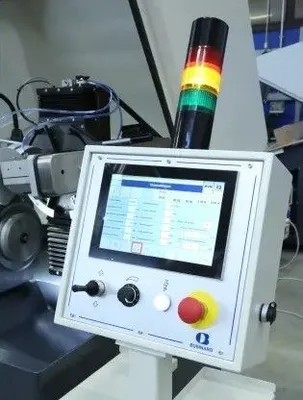

Control board equipped with panel PC with 10” (16:9) touch screen display
Grinding of both bilateral bevels at once, for burr free finishing
Grinding of unilateral bevel
Grinding with emulsion or neat oil coolant
Electronically controlled variable speed of circular knife rotation
Easy adjustment for bevel angle
Lateral fine adjustment of the knife position for centering of the cutting edge
Quick assembly of circular knife
Manual centralized lubrication
LED lamp, adjustable for position, for working area lighting
Fully enclosed
Variable Speed
Coolant System
Quick Change Knife Holder - 5/8"

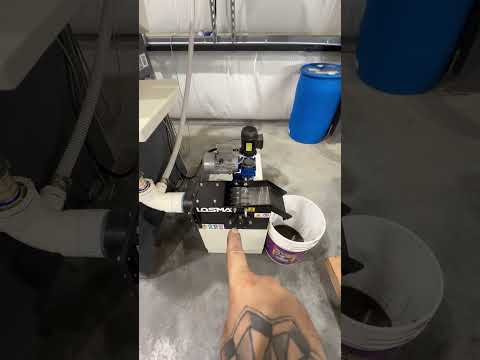

Coolant System with Magnetic Separator
Darwin 600D Mist Collector
Wifi Communications USB Adaptor with remote support hardware & software package
Knife Diameters: 40mm-350mm (1.6”- 13.75”)
Maximum Stroke: Up to 25mm (1”)
Grinding Motor: 1 HP per motor
Grinding Wheel Diameter: 125mm
Grinding Wheel Bore: 20mm
Grinding Wheel Speed: 4700 rpm
Voltage: 480v, 3 phase, 60 cycle.
Shipping Weight: 500kg (1100lbs)
