SANDVIK AA3B14-50 40 105 – CAT 50 - ER40 COLLET CHUCK
Have one to sell?
$75.00 USD
ConditionUsed
1 available
SANDVIK AA3B14-50 40 105 – CAT 50 - ER40 COLLET CHUCK
USED
Holder Brand: Sandvik

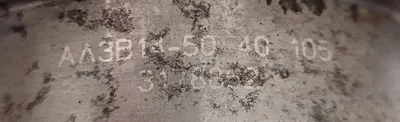

Part Number: AA3B14-50 40 105
Holder Type: CAT 50

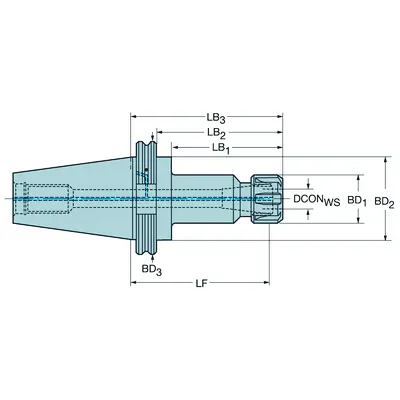

Functional diameter: 2.75 inch
Connection diameter workpiece side(DCONWS): 1.6142 inch
Functional length(LF): 3.4094 inch
Body diameter(BD_1): 2.4803 inch
Body diameter(BD_2): 2.75 inch
Body diameter(BD_3): 3.8748 inch
Body length(LB_1): 2.4956 inch
Body length(LB_2): 3.22 inch
Overall length(OAL): 8 inch
