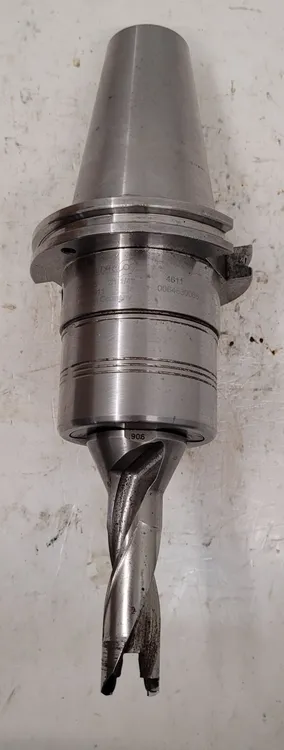

SCHUNK 233785 TRIBOS-R CAT 50 TOOL HOLDER
Have one to sell?
$220.00 USD
ConditionUsed
1 available
SCHUNK 233785 TRIBOS-R CAT 50 Tool Holder, used. Features include ASME B5.50 standard, 1 1/4" clamping diameter. Key dimensions: D2: 67mm, D3: 69.85mm, L1: 90mm. Ideal for machining tasks requiring precision and reliability.

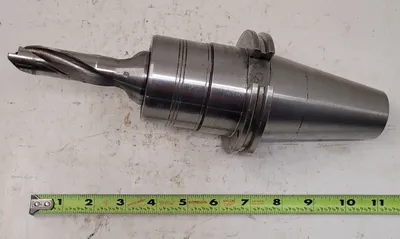

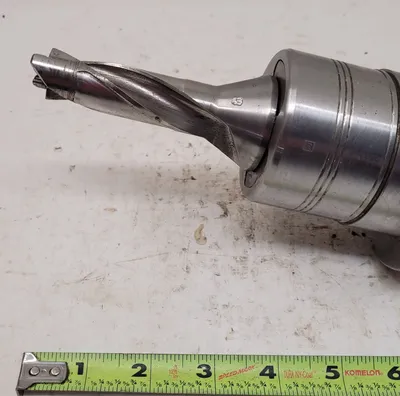

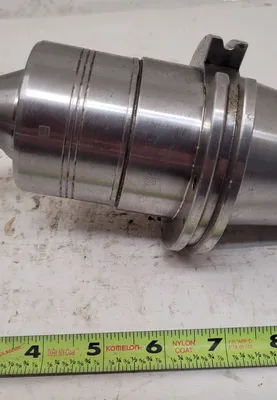

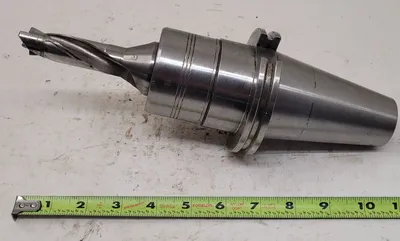

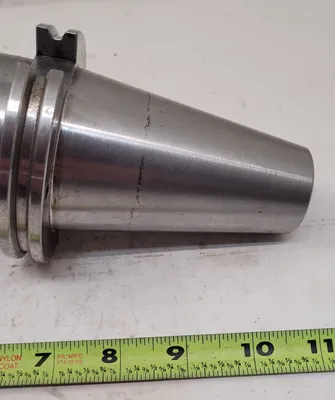

SCHUNK 233785 TRIBOS-R CAT 50 TOOL HOLDER

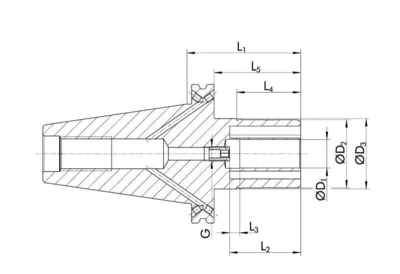

USED - Diagram in photos for below specs.

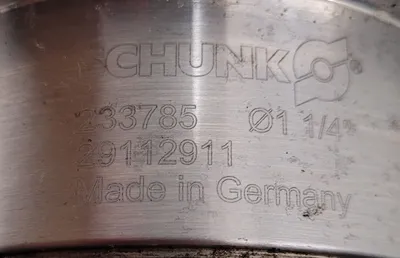

Brand: SCHUNK
Toolholder interface: CAT 50
Toolholder standard: ASME B5.50
Clamping diameter D1: 1 1/4"
D2 [mm]: 67
D3 [mm]: 69.85
Projecting length L1 [mm]: 90
L2 [mm]: 61
L3 [mm]: 10
L4 [mm]: 45
L5 [mm]: 70.95
G: M10x1
Min. torque [Nm]: 330
