ERICKSON CV50BTG100300G COLLET CHUCK
Have one to sell?
$119.00 USD
ConditionUsed
1 available

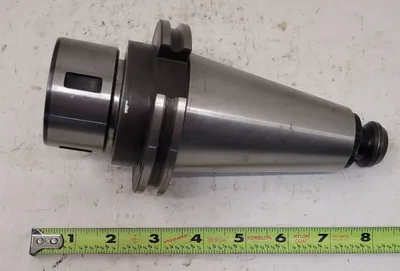

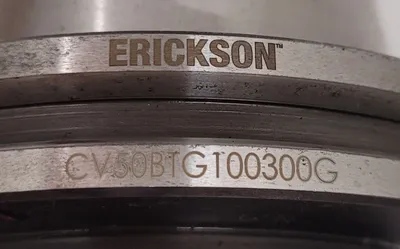

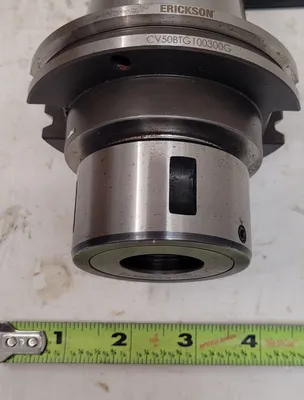

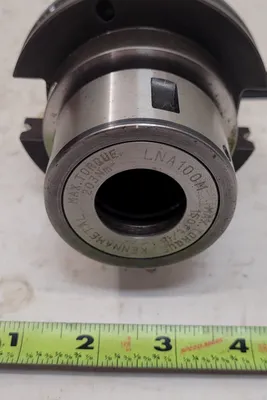

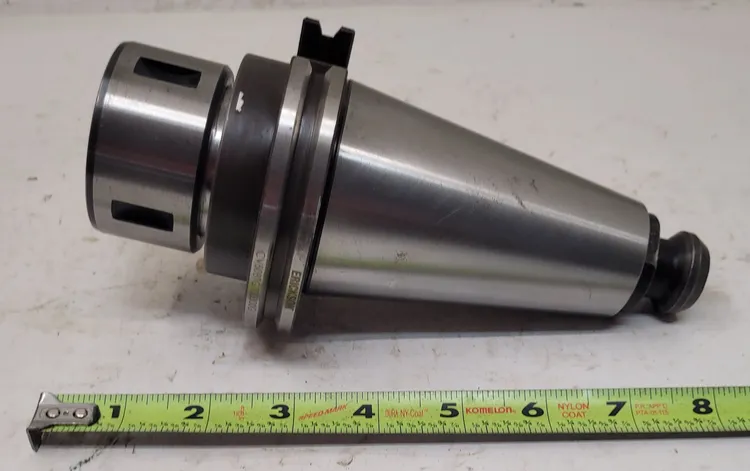

ERICKSON CV50BTG100300G used collet chuck, model CV50BTG100300G. This tooling accessory features CAT50 holder type, neutral cutting direction, and both metric/inch measurements. Specs include 76.19 mm depth and 6.002 mm hole diameter.
ERICKSON CV50BTG100300G COLLET CHUCK
Brand: ERICKSON
Part Number: CV50BTG100300G
Holder Type: CAT50
Dimensions:
Closed Depth: 76.190 mm
Hole Diameter: 6.002 mm
Measurement: Both Metric & Inch
Shank Diameter: 69.850 mm
Shank Length: 104.775 mm
Usable Length: 41.950 mm
Cutting Direction: Neutral
Shank Size: 2 3/4
Shank Type: CV CHUCK, CV V-Flange
Tool Type: TG Collet Chuck
Type: Taper Shank
