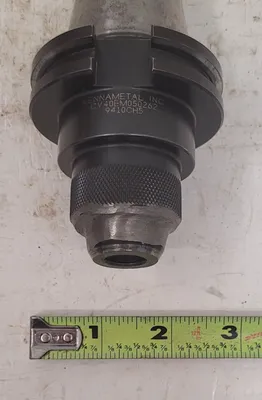

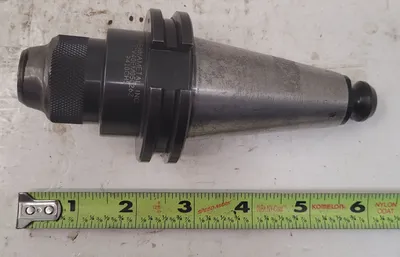

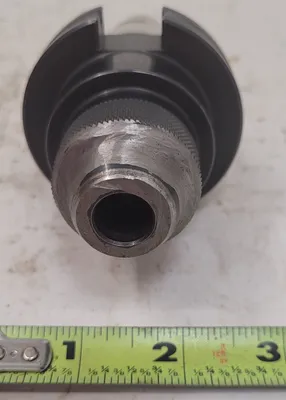

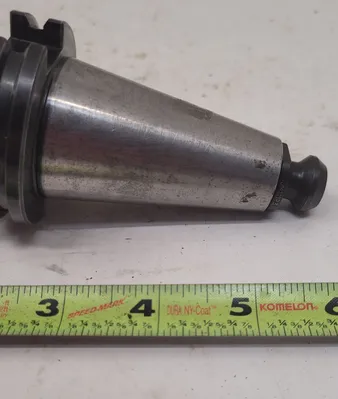

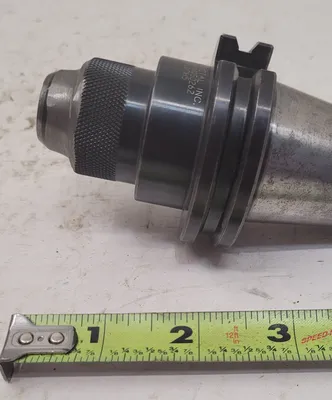

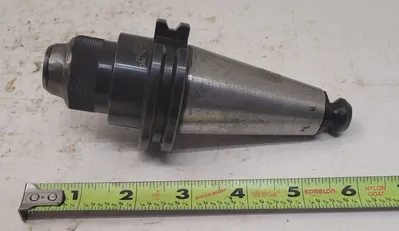

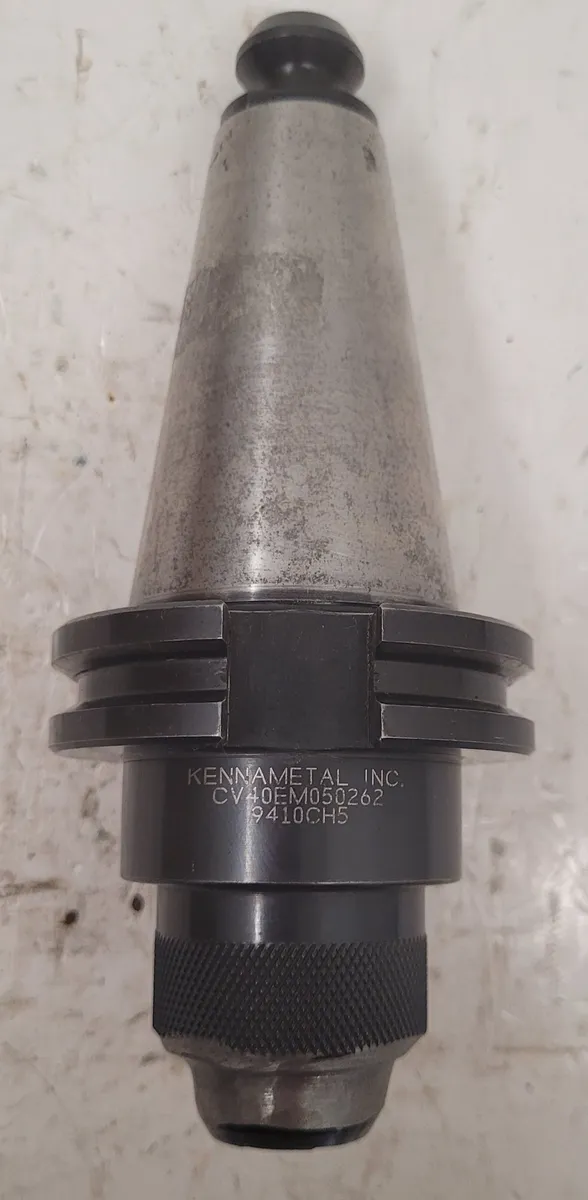

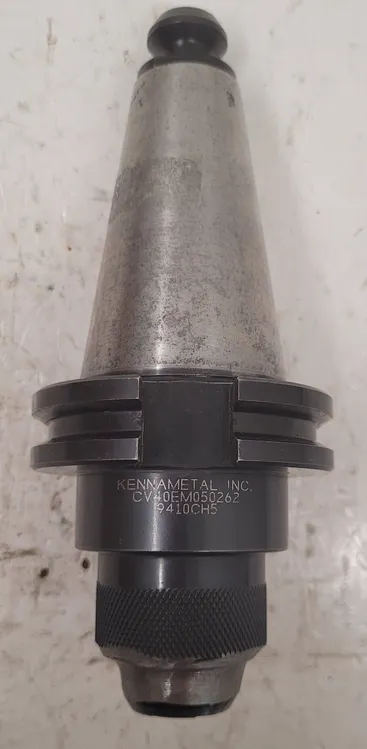

KENNAMETAL CV40EM050262 CAT 40 End Mill Holder
Have one to sell?
ConditionUsed
1 available
$59.00 USD
KENNAMETAL CV40EM050262 CAT 40 End Mill Holder in used condition. Features a 5.3" overall length, 1.75" adapter diameter, and 4.13" clamping length. Ideal for machining applications. Model: CV40EM050262.
KENNAMETAL CV40EM050262 CAT 40 End Mill Holder
USED
Brand: Kennametal
Part Number: CV40EM050262
Holder Type: CAT 40
Overall Length (mm) 134.798 / 5.30in
Adapter/Shank/Bore Dia (in) 1.7500
Adapter/Shank/Bore Dia-Workpiece Side (in) 0.5000
Body Dia-Workpiece Side (in) 1.3750
Clamp Screw Size 7/32"
Clamping Length (in) 4.1300
Gage Length (in) 2.6200
Shank Length (in) 2.8120
System Size Machine Side CV40
Torque 20 ft/lb
Clamping Length (mm) 104.902
Gage Length (mm) 66.550
Usable Length (mm) 30.625
Body Dia-Workpiece Side (mm) 34.920
Usable Length (in) 1.2057
Adapter/Shank/Bore Dia (mm) 44.450
Shank Length (mm) 71.425
Adapter/Shank/Bore Dia-Workpiece Side (mm) 12.700
