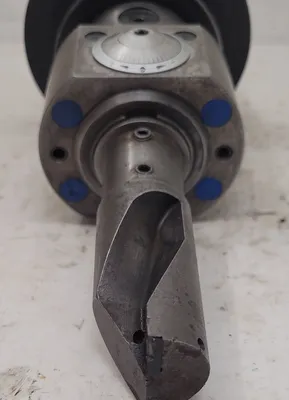

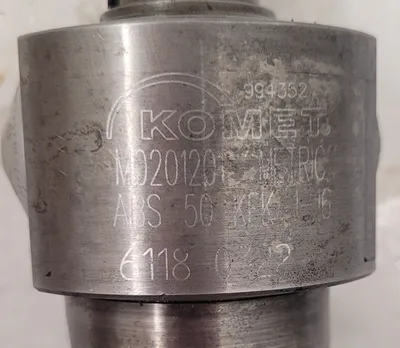

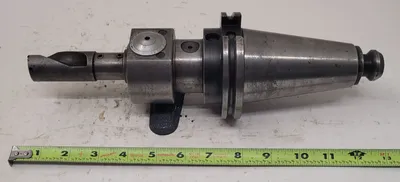

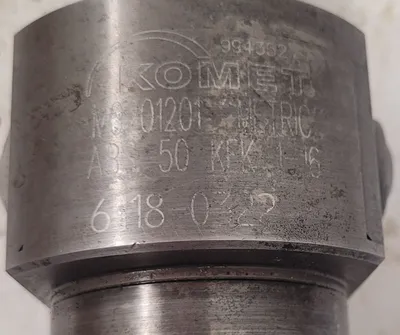

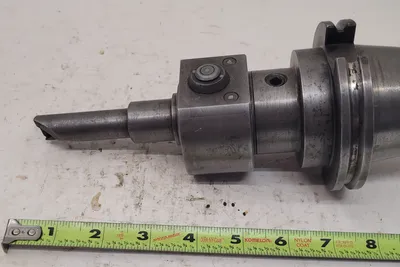

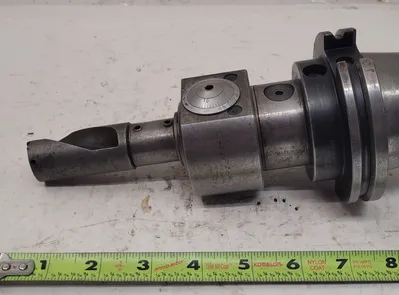

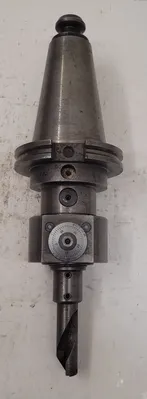

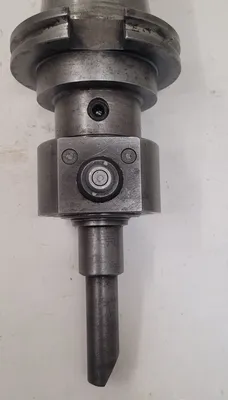

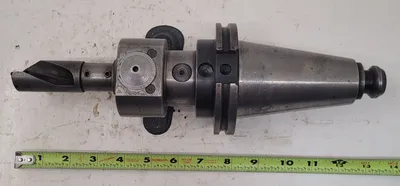

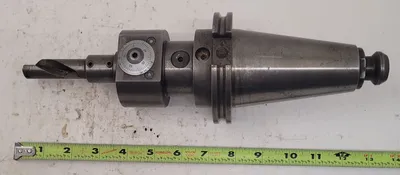

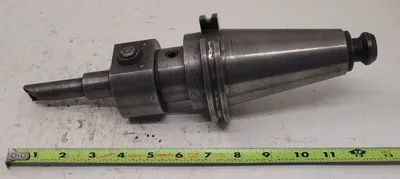

KOMET M0201201 - ABS 50 KFK 1-16 Metric Micro Adjustable Finish Boring Head

KOMET M0201201 - ABS 50 KFK 1-16 Metric Micro Adjustable Finish Boring Head

PRICED FOR EACH ITEM.

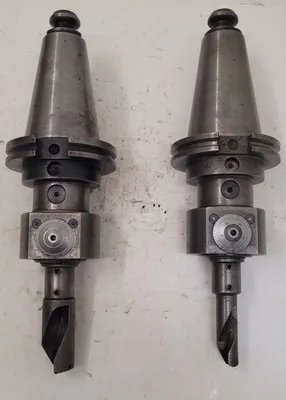

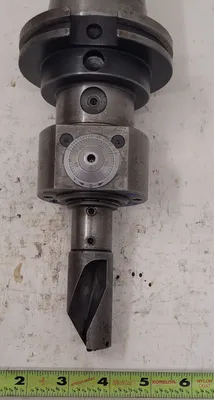

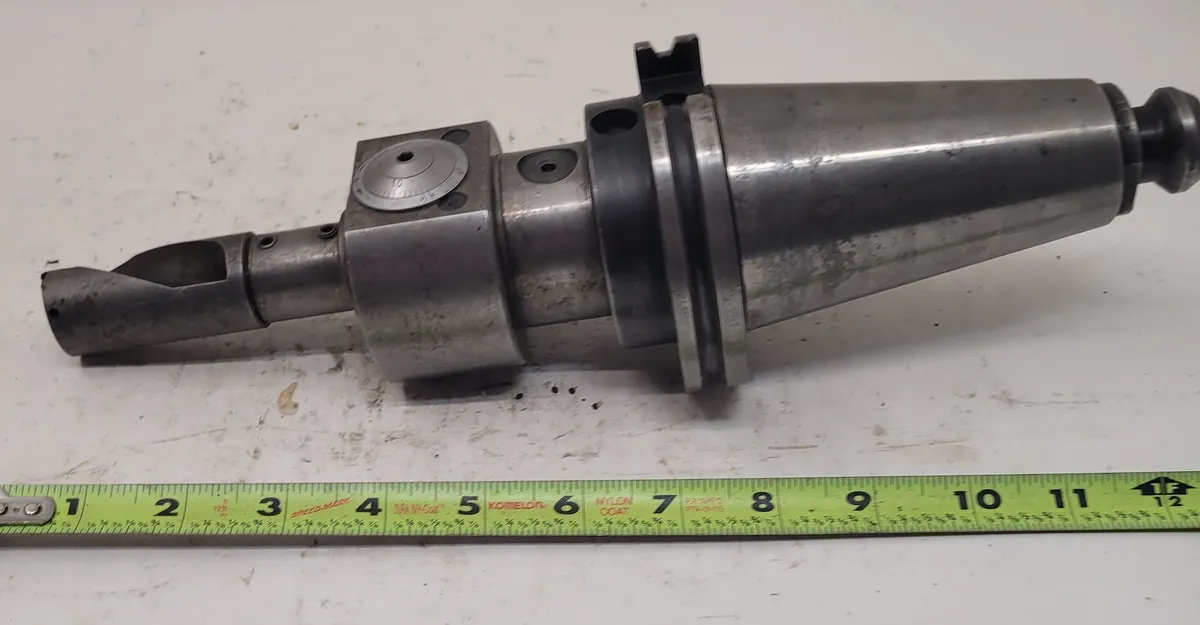

LAST PHOTO TO SHOW AVAILABILITY OF ITEM!

USED
Brand: Komet
Part Number: M0201201

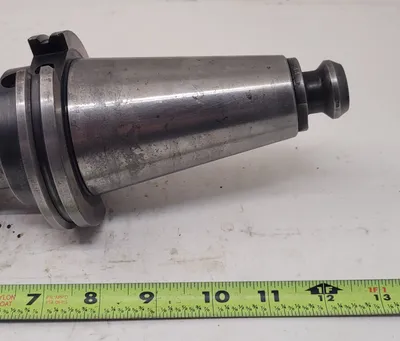

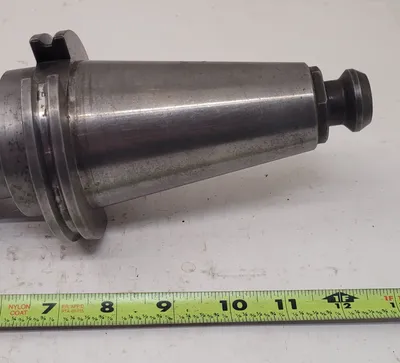

Taper Size: CAT50 Holder

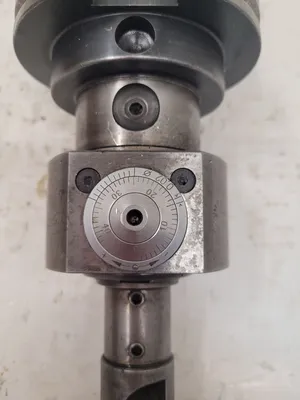

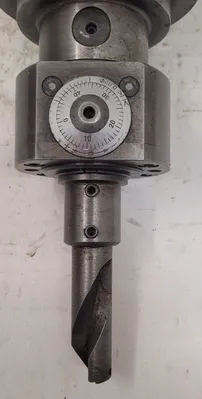

The KOMET M0201201 ABS 50 KFK 1-16 Micro Adjustable Finish Boring Head is a precision boring head designed for accurate and fine adjustments in boring operations. It features an ABS 50 connection and a KFK 1-16 interface, indicating its modular design and compatibility with various tool holders. The head offers a radial adjustment range of -0.25 to 5 mm, allowing for precise diameter adjustments. It is known for its accuracy, with an adjustment accuracy of 0.0004" (0.01 mm) per graduation and 0.0001" (0.002 mm) with a vernier.

Machine Interface: ABS 50.
Clamping Diameter: 0.6299 inch (16 mm).
Mounting Spigot Diameter: 1.1024 inch (28 mm).
Body Diameter Maximum: 2.3622 inch (60 mm).
Flange Diameter: 1.9685 inch (50 mm).
Protruding Length: 2.6378 inch (67 mm).
Clamping Length Maximum (Machine Side): 1.563 inch (39.7 mm).
Adjustment Range (Radial): -0.25 - 5 mm.
Overall Length: 3.8583 inch (98 mm).
Adjustment Path: Up to 0.197" (5 mm).
Connection: KFK 1-16.
