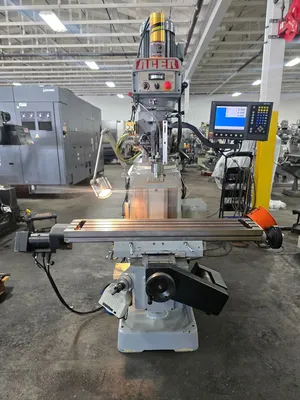

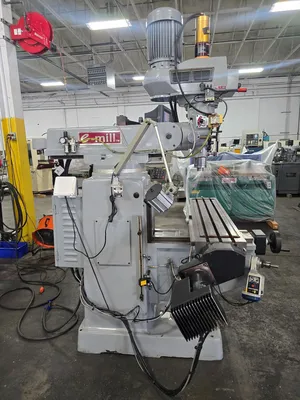

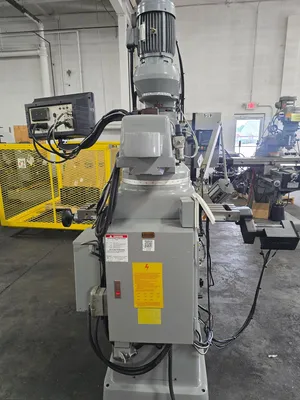

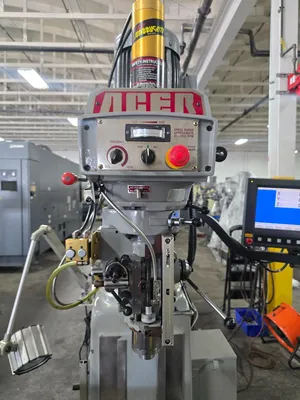

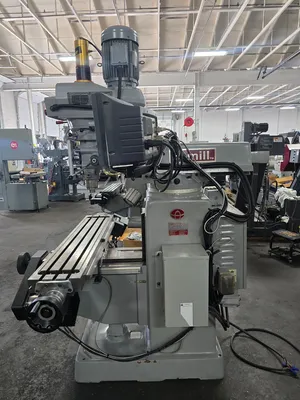

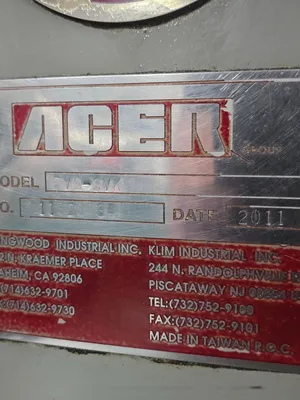

Acer E-Mill 3VK 2-Axis CNC Vertical Mill w/Acu-Rite MP2 MillPwr Control

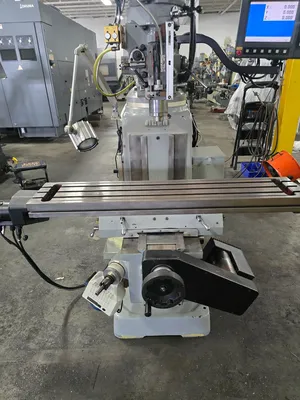

Acer E-Mill 3VK 2-Axis CNC 10″ x 50″ Vertical Milling Machine with Acu-Rite MP2 MillPwr Control
Specifications:

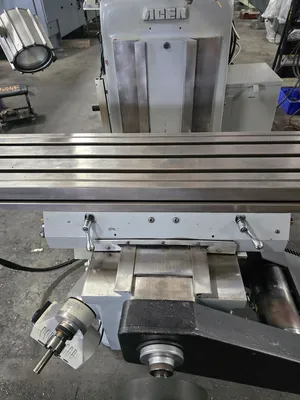

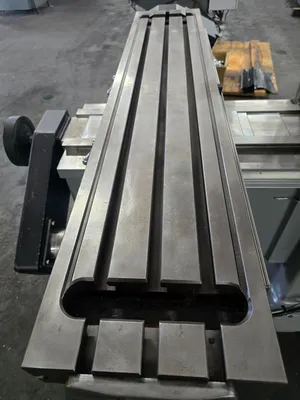

Table Size: 10″ x 50″
Longitudinal Travel: 34″
Cross Travel: 16″
Ram Traverse: 20″
Vertical Knee Travel: 16″

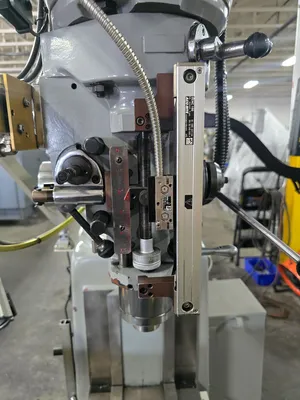

Quill Travel: 5″
Quill Diameter, Chromed: 3 3/8″
Quill Power Rate: 0.0015″, 0.003″, 0.006″ /rev.
Max. Load on Table: 900 lbs.
Table T-Slots: (3) 5/8″

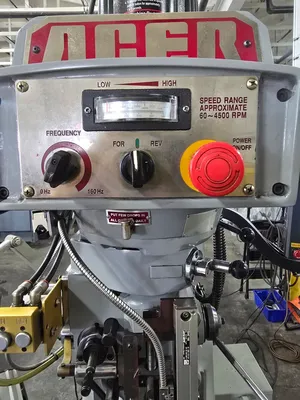

Spindle Speeds: 0 – 4,500 RPM
Spindle Taper: R8
Motor: 3 HP / 480v / 3ph

Standard Features:
Torque Rite Power Draw Bar
Powered Knee

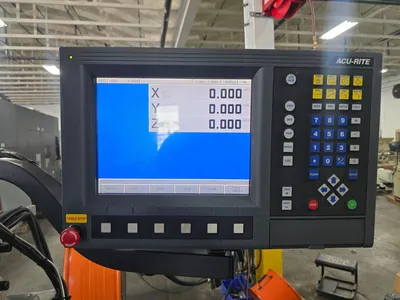

MILLPWR MP2 controller specifications
The ACU-RITE MILLPWR MP2 (MillPWR II) controller is designed for vertical knee mills and offers a combination of manual and automated operation features.
Key features and specifications:
Control type: 2-axis CNC control with a 3-axis digital readout system.
Programming: Conversational, menu-prompted programming for ease of use, even for those with no prior experience.
Display: 10” flat panel, color LCD display.
Memory: 1.25 MB CNC user memory.
Storage: 2.5 GB flash (user) for internal storage.
Processor: 1 GHz Intel Celeron microprocessor.
Peripherals:
Ethernet connectivity.
Two USB ports.
RS-232 port.
Floppy disk drive built into the operator console.
Remote Stop/Go switch.
Feedback: Closed-loop feedback through servo amplifiers and precision glass scales (2µm resolution).
Axis Control:
Precision ground ball screws.
Powerful DC servo motors.
Error compensation: Linear & bidirectional non-linear.
Protection:
IP 54 rated (front).
IP 40 rated (back).
User interface: Intuitive navigation with standardized menus for common milling features like lines, arcs, pockets, bolt hole patterns, islands, spirals, and ellipses.
Graphics: 2D line, 3D line, and 3D solid graphics views to help visualize and review programs.
Program size: Limited to 9999 steps

Mechanical Specifications:
Dimensions: 96″ x 62″ x 89″ H
Weight: approx. 3,050 lbs.
