| Table Size-W | 9" | 228.6 mm |
| Table Size-L | 48" | 1,219.2 mm |
| Control | CNC (ACU-RITE MP2 MILLPWR) | CNC (ACU-RITE MP2 MILLPWR) |
| Dimensions | 76 L x 67 W x 83 H | 76 L x 67 W x 83 H |
| Weight | 2600 lbs | 2600 lbs |
Specs:
Table Size: 9" x 48"
Longitudinal Travel: 30"
Cross Travel: 12"
Quill Travel: 5"
Knee Travel: 16"
Spindle Taper: R8
Spindle Speeds: 60 to 4200 RPM Variable
Spindle Drive: 2HP
Ram Travel (Adjustment Range): 12"
Spindle Center to Column: 6.75" to 18.75"
Max Table Load: 750lbs
Equipped With

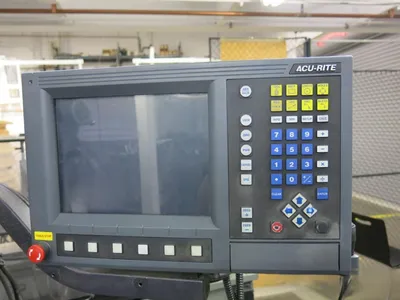

ACU-RITE MP2 MILLPWR Control
Kurt Power Draw Bar
Crome ways
Three-axis digital readout during manual operations
BIJUR one-shot lubrication system
2 H.P. 3/60/230 spindle drive motor and electrical controls
Machine is wired for 230 volt operation.
Machine weight- 2600 Lbs.
Machine dimensions- 76” L x 67” W x 83’’ H
