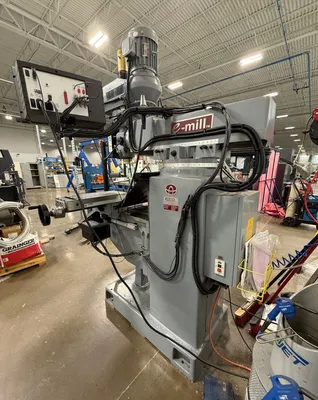

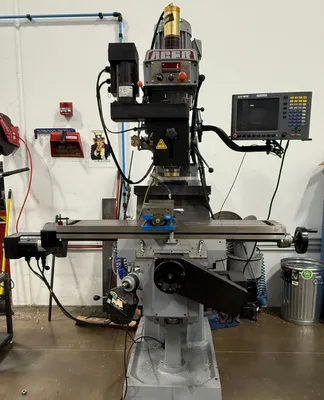

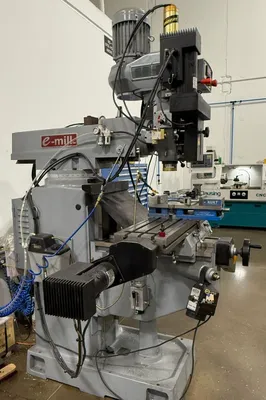

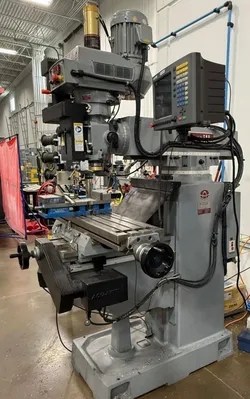

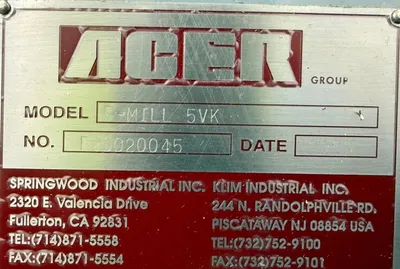

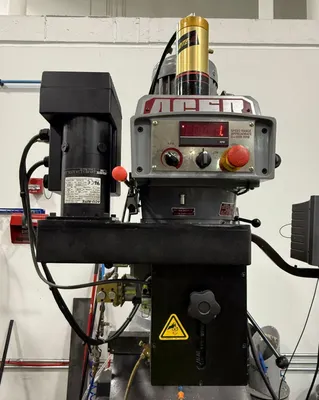

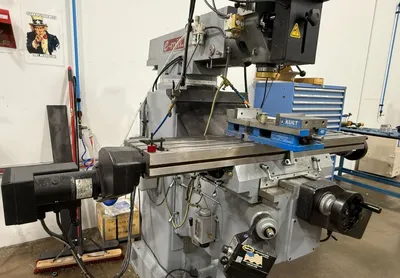

2020 Acer 5VK CNC Vertical Milling Machine w/Acu-Rite G2 MillPWR 3 AXIS Control

10″ x 50″ Acer 5VK Vertical Milling Machine w/Acu-Rite MillPWR 3 AXIS Control
Specifications:
Table Size: 10″ x 50″
Longitudinal Travel: 34″
Cross travel: 12″
Vertical Knee Travel: 16″
Spindle Motor: 5 H.P.
Spindle Speeds: 60 – 4,500 RPM Frequency Drive
Spindle Taper: NST#40
Maximum Table Load: 850 Lbs.
Quill Travel: 5″
Machine Weight: 3,050 Lbs.
Machine Dimensions: 96″ x 62″ x 89″ H
Turcite-B Coated Slideway and Gibs
Precision ABEC-7 Spindle Bearings
Meehanite Casting
1″ Diameter Ball Screws
Hardened & Ground Ways
Dual Knee, Table & Saddle Locks

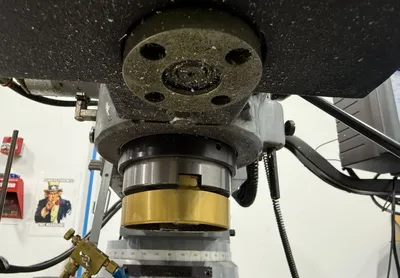

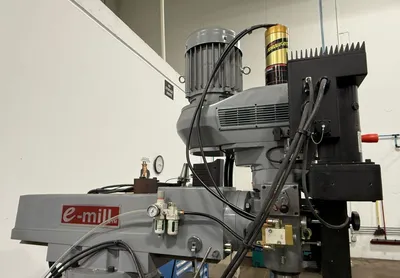

“TORQUE-RITE” Power Drawbar Assembly & Safety Ring

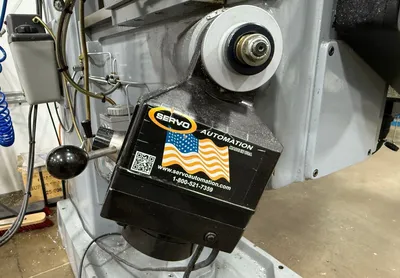

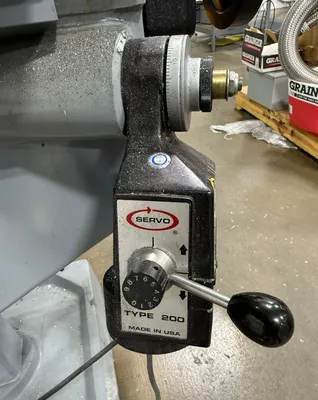

“Servo Brand” Knee Power Feed

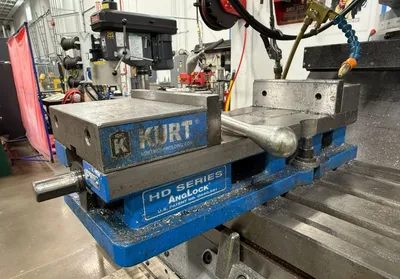

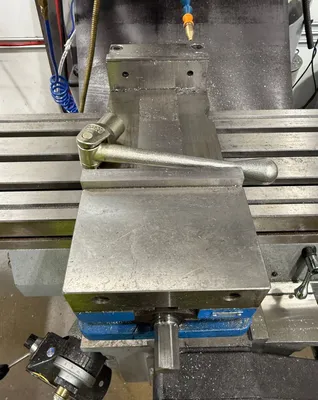

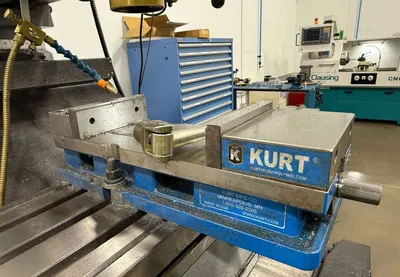

Kurt Vice
Machine Can Run Single Phase or 3 Phase

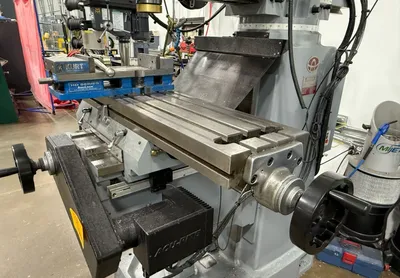

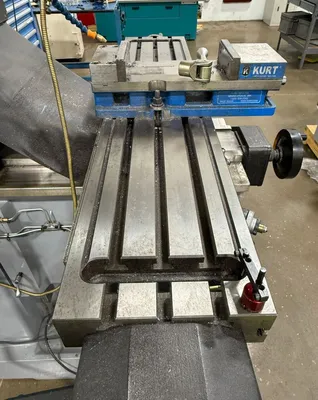

HRC 52 Degree Hardened and Ground Table
Automotive Paint

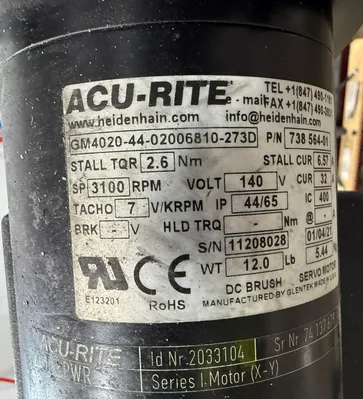

AcuRite Millpwr G2 CNC3 axes control (Longitudinal, Cross)
G code and conversational type programming
3 axes precision ball screws
Safety handwheels
Auto lube system
3 axes Digital Readout System (table, saddle, quill)
MILLPWR G2 TURNKEY CNC SYSTEM W/SOFTWARE AND HARDWARE
Dimension Functions:
ABS/INC, POLAR/CARTESIAN, INCH/METRIC.
Programming:
PROGRAM IN/OUT, POSITION/DRILL, MILL LINES, MILL ARC, BLEND (CORNER RADIUS)
HOLES (BOLT CIRCLE, RECTANGULAR ARRAY, RECTANGULAR FRAM, LINE),
CIRCLE (POCKET, FRAM, RING), RECTANGLE (POCKET, FRAME, SLOT, FACING) 9,999 STEPS OF PROGRAM SIZE
Special Features:
CUSTOM POCKETS, REPEAT, ROTATE, MIRROR IMAGE.
Run Options:
SINGLE STEP, DRY RUN, GRAPHICS ONLY, MANUAL POSITIONING.
Calculator Functions:
GEOMETRY, TRIG.
HARDWARE
Operator Console:
EASY TO USE FORMAT. CONVERSATIONAL ENGLISH. THREE DIMENSIONAL HARD KEYS. 10” FLAT PANEL, COLOR LCD DISPLAY. REMOTE STOP/GO SWITCH.
Controller Cabinet:
HEAVY DUTY ENCLOSURE MODULAR CONSTRUCTION, 1 GHz Intel Celeron MICROPROCESSOR.
USB AND RS232 INTERFACE
1” HIGH RESOLUTION DISPLAY WITH 3 D GRAPHICS
115VAC – 20 AMPS

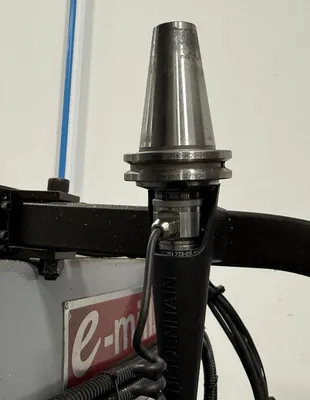

Probe:40 Taper probe
