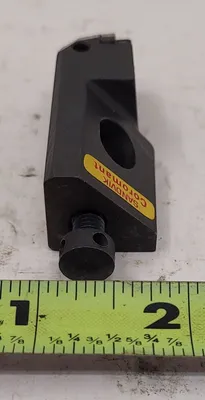

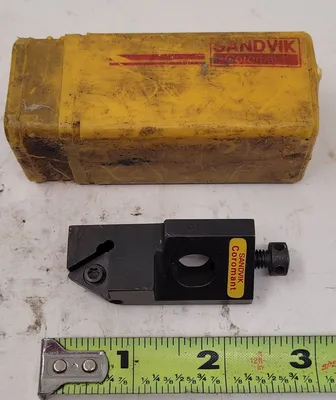

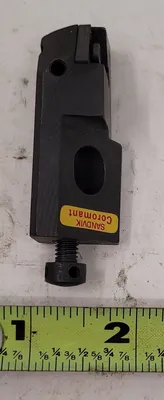

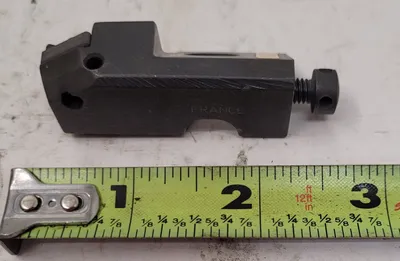

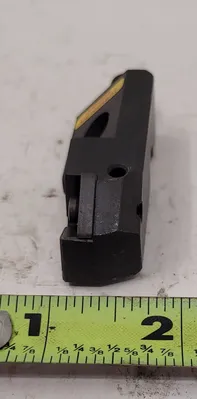

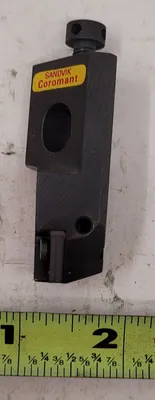

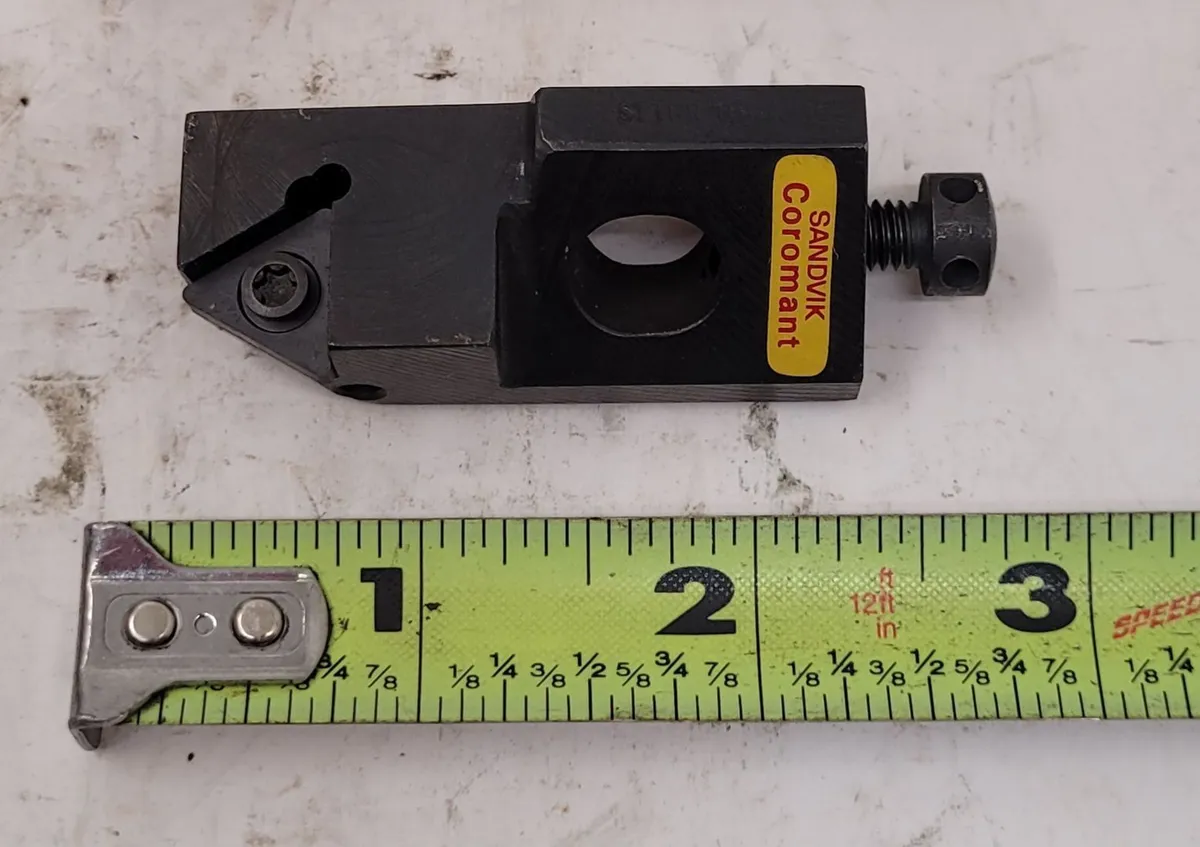

Sandvik STTCR 16CA-16 CoroTurn 107 CARTRIDGE
Have one to sell?
ConditionUsed
3 available
$49.00 USD
Sandvik STTCR 16CA-16 CoroTurn 107 Cartridge by Sandvik Coromant, used tooling accessory. Right-hand with minimum bore 1.9685–2.9528 inches, max overhang 2.1654 inches. Dimensions: Shank width 0.5906x0.7874 inches, mounting hole 0.7874 inches.
Sandvik STTCR 16CA-16 CoroTurn 107 CARTRIDGE
Minimum bore diameter: 1.9685 inch
Minimum bore diameter: 2.9528 inch
Maximum overhang: 2.1654 inch
Hand: Right
Shank width: 0.5906 inch
Shank height: 0.7874 inch
Mounting hole distance: 0.7874 inch
Functional length: 2.1654 inch
Functional width: 0.5236 inch
Functional height: 0.4724 inch
Torque: 2.2127
OAL: 2.1654 inch
