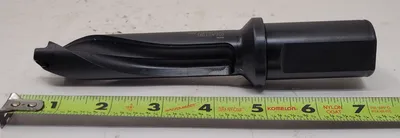

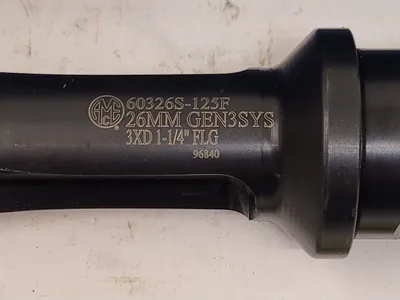

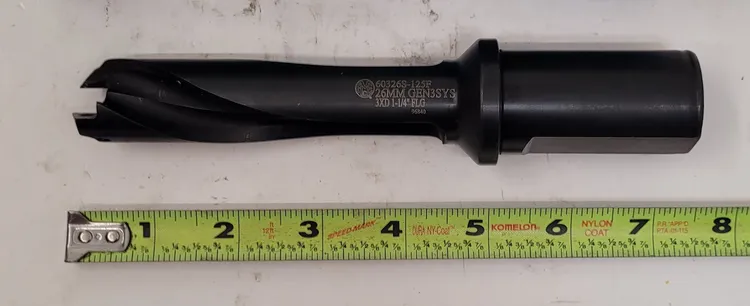

AMEC 60326S-125F - 26 Series Straight Flute Indexable Spade Drill
26.00mm Diameter
31.75mm Shank
Type of Product: Replaceable Drill Body
Series: 26
Minimum diameter inch: 1.0236
Minimum diameter mm: 26
Maximum diameter inch: 1.1416
Maximum diameter mm: 28.99
Drill depth inch: 3-27/64
Body length inch: 5-1/16
Overall length inch: 7-11/32
Shank diameter inch: 1-1/4
Shank type: Flanged
Flute Type: Straight
Length Type: 3xD
Flat: Yes
Coolant Inlet Style Rear: TSC
Pipe tap rear inch: 1/8 (NPT)
Shank length inch: 2-9/32
Tool Reference Length inch: 5-11/64
