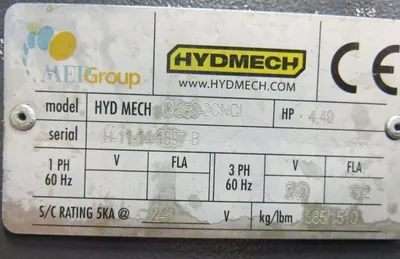

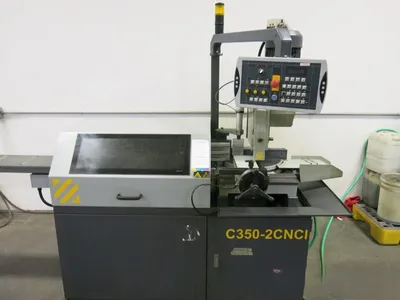

Hydmech C350-2CNC1 CNC Programmable Ferrous Only Cold Saw
Here are some of its key specifications:
Capacity:
Round Hollow: 4-1/2″
Square Hollow: 3-3/4″
Rectangular Hollow (L x H): 7″ x 3-3/4″
Round Solid: 3-3/4″
Square Solid: 3-1/2″
Rectangular Solid (L x H): 3-1/2″ x 3-1/2″
Mitering:
Left: 60°
Right: 45°
Blade:
Blade Size: Max 14″ (Min 12″)
Blade Drive: 3.5 Hp
Blade Speed: 12-40 and 36-120 rpm or 15-90 rpm (through an inverter)
Other Specifications:
Operation: Automatic via MEP 50 controller
Material Feed: 23″ single stroke, multi-indexing system

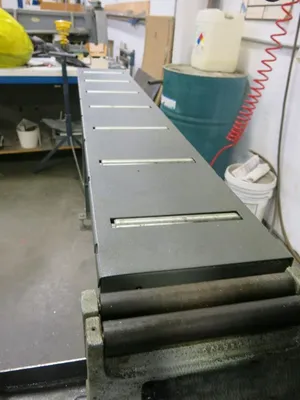

9-1/2" Roller Topped Infeed Conveyor

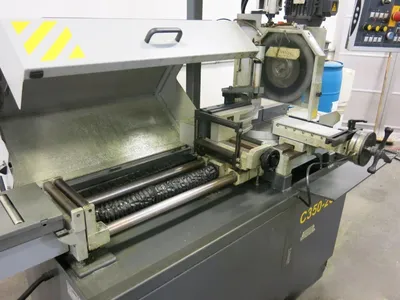

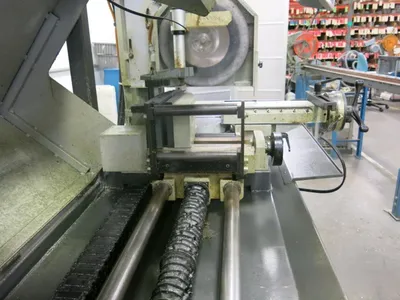

Vise: Vertical pneumatic vise with anti-burr clamp
Remnant Length: 5.9″
Weight: 2,332 lbs
Voltage: 240 or 480 v
Dimensions (W x L x H): 84″ x 47″ x 79″

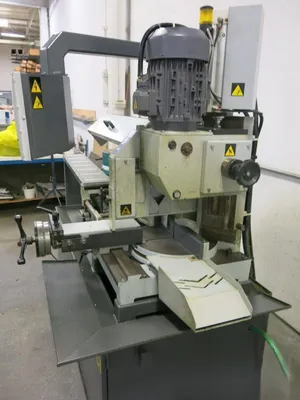

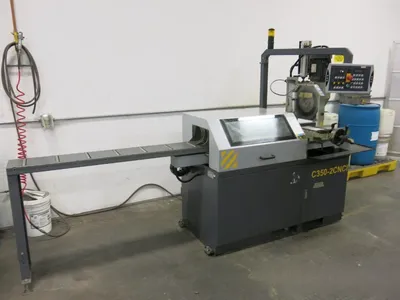

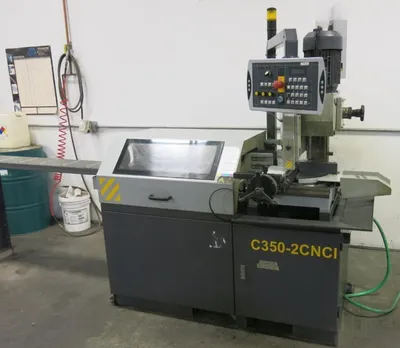

The Hyd-Mech C350-2CNC is an automatic vertical column circular cold saw designed for cutting various metal shapes.
Here are its key specifications:
Cutting Capacity (90°) | Round Hollow: 4 1/2” (114 mm), Square Hollow: 3 3/4”, Rectangular Tube (L x H): 7" x 3 3/4", Square Solid: 3 1/2", Round Solid: 3 3/4", Rectangular Solid: 3 1/2" x 3 1/2"
Cutting Capacity (45° Left & Right) | Round Hollow: 4 1/4”, Square Hollow: 3 3/4”, Rectangle Tube: 4 3/4" x 3 3/4", Square Solid: 2", Round Solid: 3", Rectangle Solid: 2 1/2" x 3 1/2"
Cutting Capacity (60° Left) | Round Tube: 3 1/2", Rectangle Tube: 3 1/2" x 3 3/4", Square Solid: 1 1/2", Square Hollow: 3”, Rectangle Solid: 1 3/4" x 3 1/2"
Included Blade | One blade (350 x 2.5 x 32 z=180)
Operation | Automatic
Mitering | 60° Left to 45° Right
Material Feed | 23” single stroke, multi-indexing system
Standard Remnant Length | 5.9"
Control | MEP 50 controller
Job Storage | Stores up to 99 jobs
Key features include programmable sawing stroke, feed rate control, a heavy-duty sawing head with manual movement, a two-stage gearbox, and various blade speeds. The saw also has an anti-burr clamp, a vertical pneumatic vise, and an enclosed steel base with a chip drawer and coolant system.
