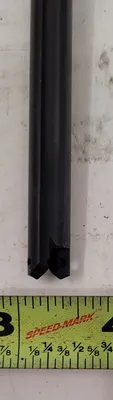

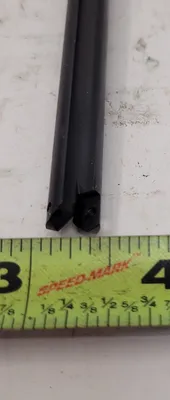

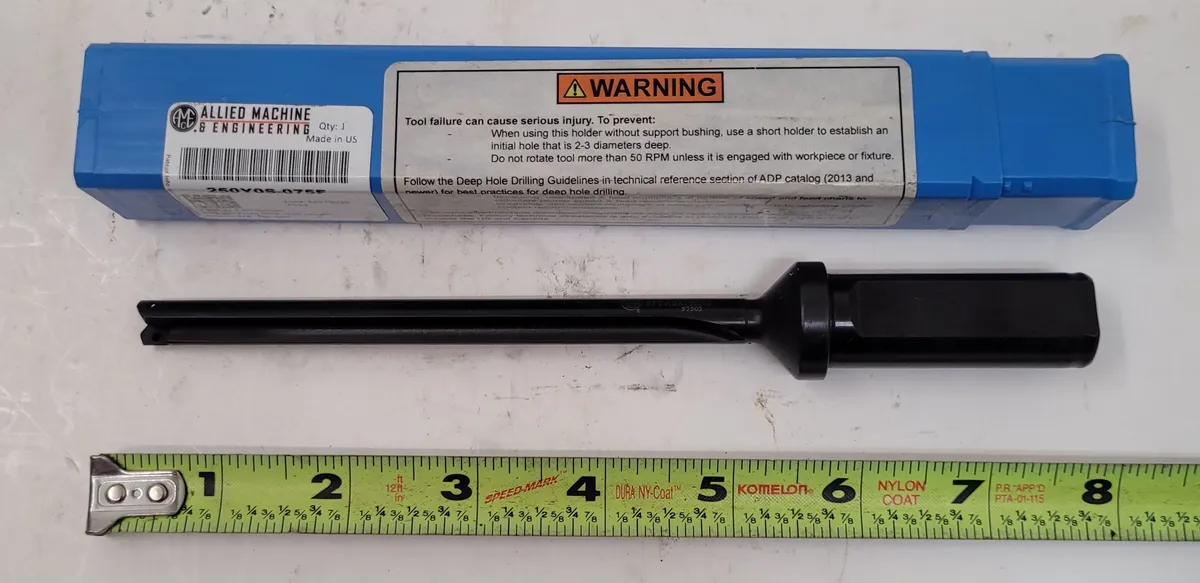

AMEC 250Y0S-075F Straight Flute Spade Drill

AMEC 250Y0S-075F 3/8" to 27/64" Diam 4-3/8" Max Depth Straight Flute Spade Drill

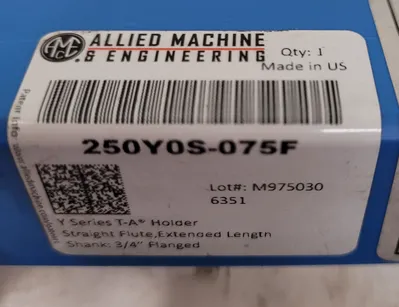

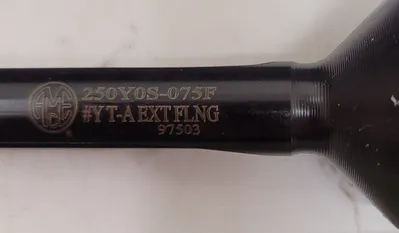

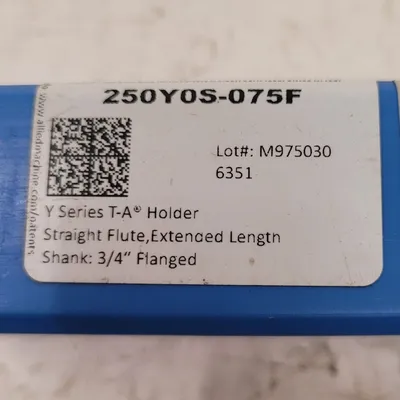

Manufacturer Part #: 250Y0S-075F
Minimum Drill Diameter (Inch) 3/8
Maximum Drill Diameter (Inch) 27/64
Maximum Drill Depth (Inch) 4-3/8
Spade Drill Length Extended
Shank Type Flatted
Shank Diameter (Inch) 3/4
Length Type Extended
Tool Material Steel

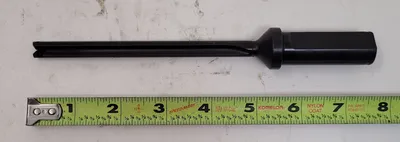

Overall Length (Inch) 7-9/16

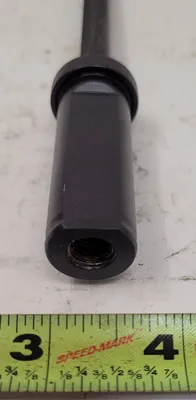

Coolant Entry Style Code 1-Axial Concentric Entry
Flute Type Straight
Flute Length (Inch) 4-3/8
Body Length (Inch) 5-17/32
Shank Length (Inch) 2-1/32
Tool Performance General Purpose
Coolant Hole Thread Size 1/8
Coolant Through Yes
