Allied Machine & Engineering 21005S-20FM Drill Tool Holder
Have one to sell?
$129.00 USD
ConditionUsed
3 available

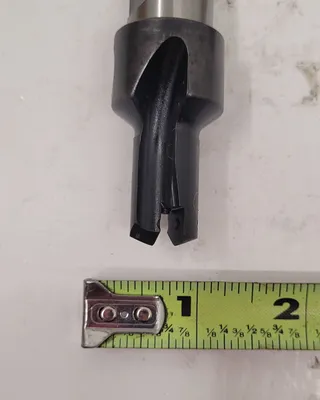

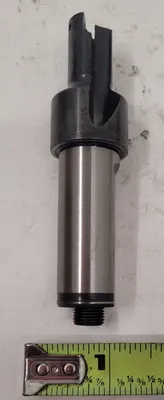

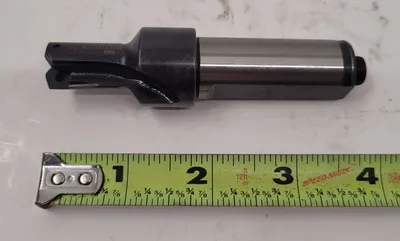

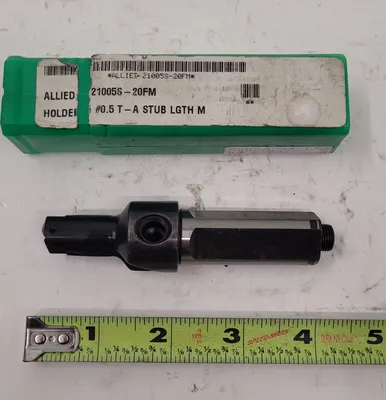

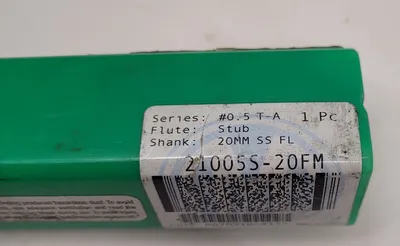

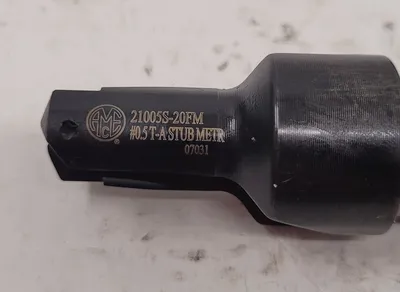

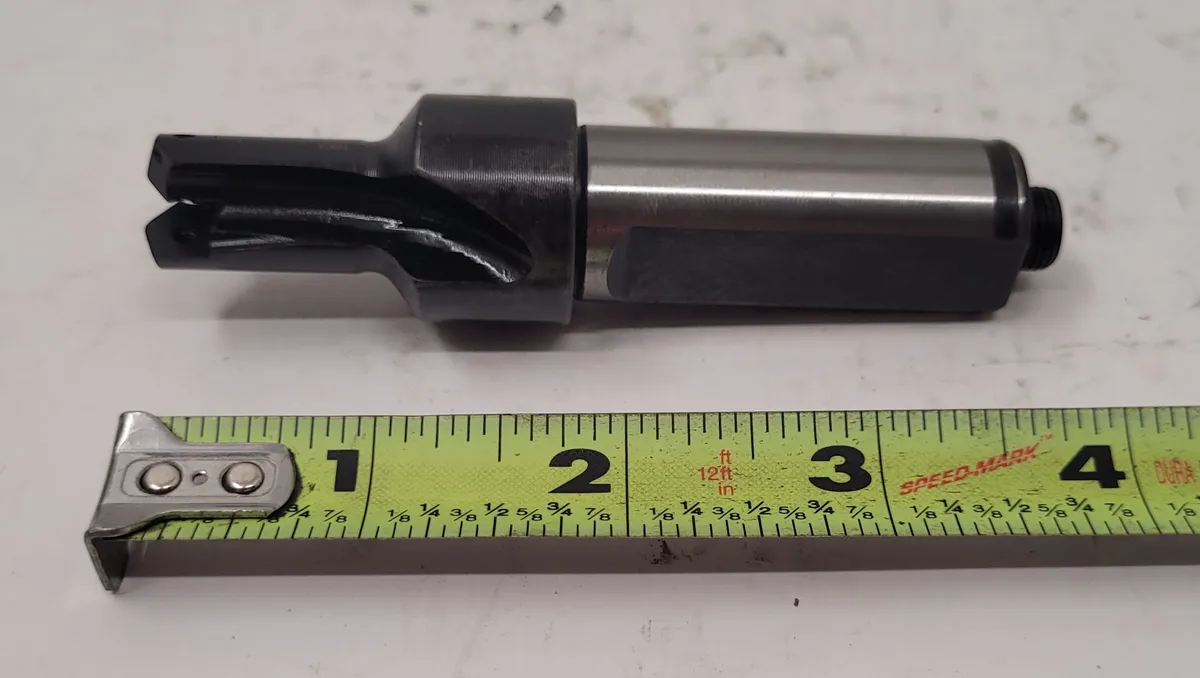

Allied Machine & Engineering 21005S-20FM Drill Tool Holder
Series0
Sub-Series: .5
Minimum diameter mm: 15.48
Maximum diameter mm: 17.67
Length Type: Stub
Flute Type: Straight
Overall length mm: 97.6
Tool Reference Length mm: 50.3
Body length mm: 47.6
Drill depth mm: 24.0
Shank type: Flanged
Shank diameter mm: 20
Shank length mm: 50.0
Pipe tap rear inch: 1/8
Pipe tap rear mm: 1/8 BSPT
Pipe tap side inch: 1/8
Pipe tap side mm: 1/8 BSPT
Deep Hole Guidelines: No
Type of Product: Replaceable Drill Body
Product Application: General Purpose
