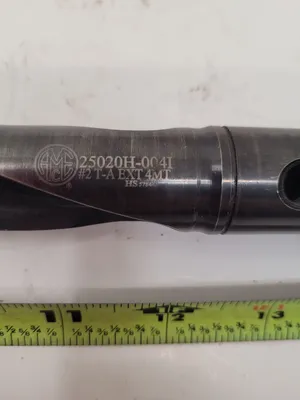

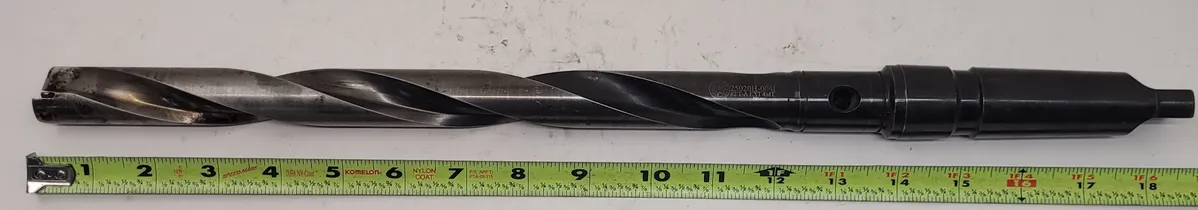

Allied Machine & Engineering 25020H-004I #2 T-A EXT 4MT Carbide Insert Spade Twist Drill
USED
Series: 2
Minimum diameter inch: 0.9610
Maximum diameter inch: 1.3809
Length Type Extended
Flute Type Helical
Overall length inch: 18.781
Tool Reference Length inch: 14.296
Body length inch: 12.500
Drill depth inch: 11.850

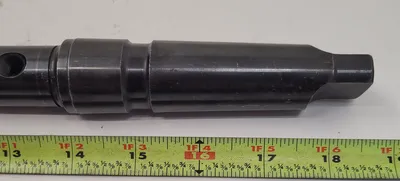

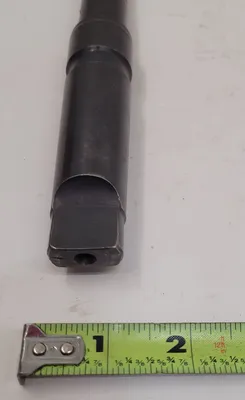

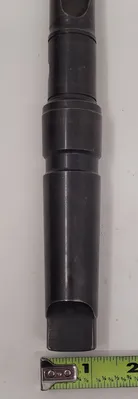

Shank type Morse Taper
Shank diameter inch: #4 MT
Pipe tap side inch: 1/8 NPT
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
