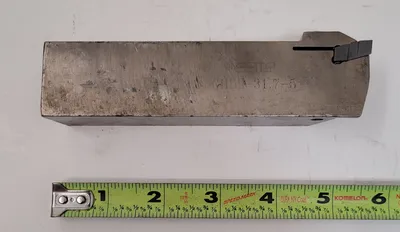

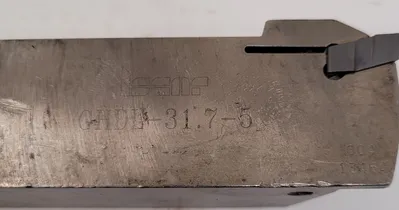

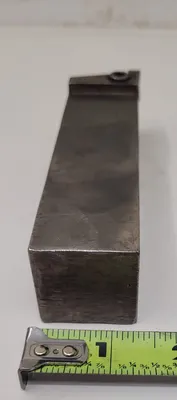

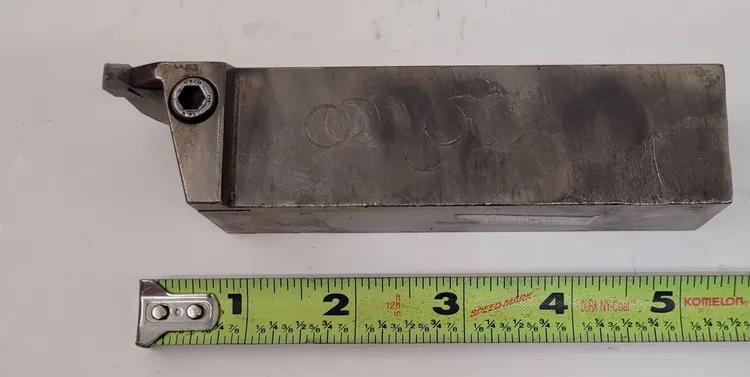

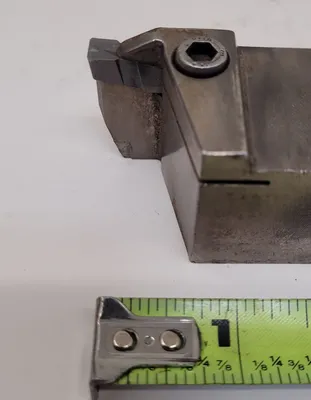

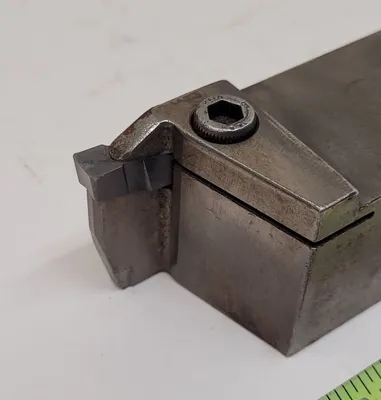

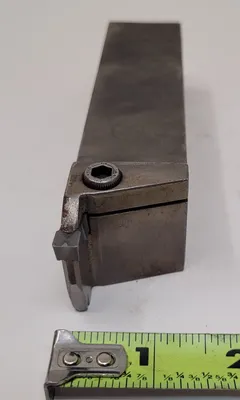

ISCAR GHDL-31.7-5 - Groove/Turn Indexable Holder
Have one to sell?
ConditionUsed
1 available
$39.00 USD
ISCAR GHDL-31.7-5 Groove/Turn Indexable Holder for versatile machining. Used condition. Specs: Cutting Width 0.2"-0.252", Length 7", Max Depth 1/2". Suitable for grooving, profiling, threading, and more. External coolant supply included.
ISCAR GHDL-31.7-5 - Groove/Turn Indexable Holder
USED

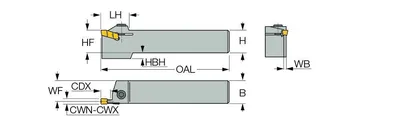

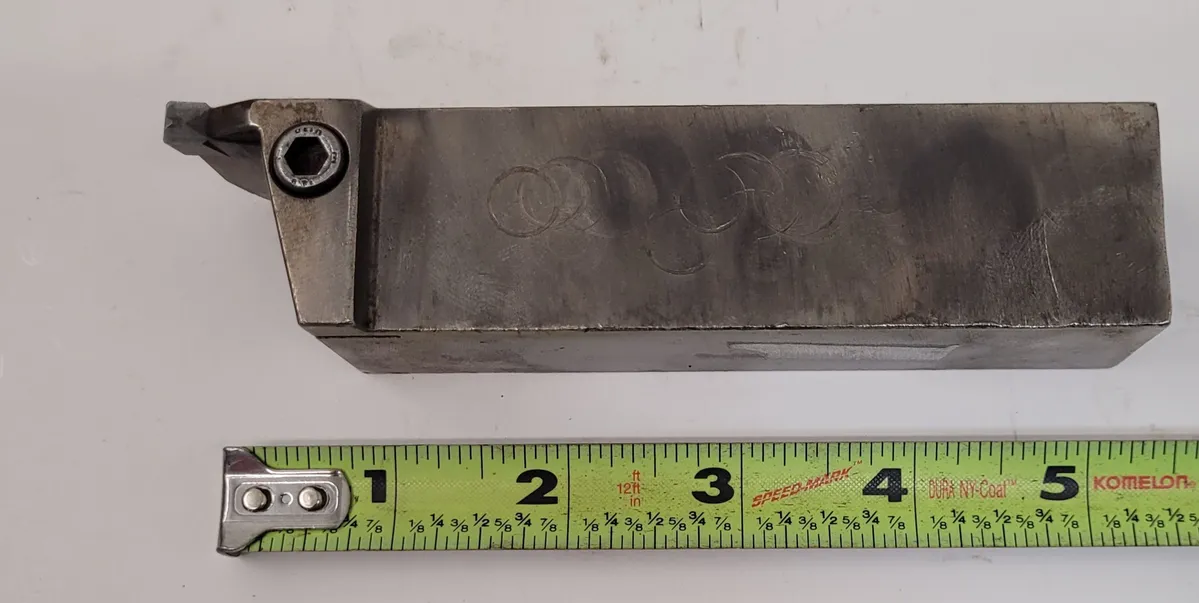

Diagram in Photos for reference for below information:
Cutting Width Minimum (CWN) 0.2″
Overall Length (OAL) 7″
Cutting Width Maximum (CWX) 0.252″
Coolant Supply Property (CSP) External
Cutting Depth Maximum (CDX) 1/2″
Application | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T |
Shank Height (H) 1.3″
Shank Width (B) 1-1/4″
Tool Type Turn-Groove Tools
Functional Width (WF) 1.17″
Head Length (LH) 1.2″
