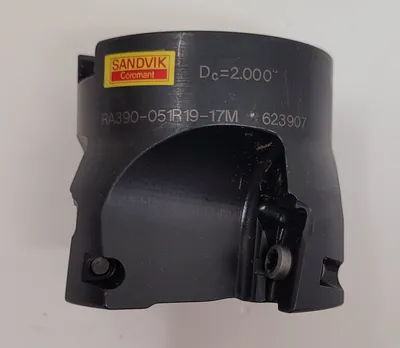

Sandvik RA390-051R19-17M - 2" Square Shoulder Cutter Mill
New in Box

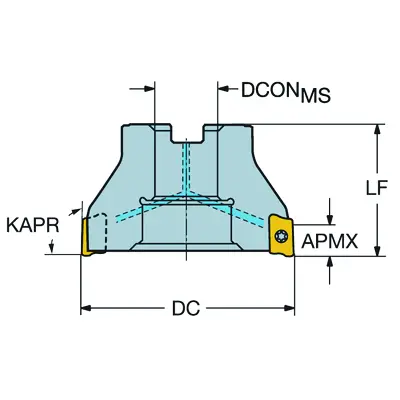

Diagram in Photos for below specs:
Tool cutting edge angle (KAPR) 90 °
Cutting diameter (DC) 2 inch
Cutting item count (CICT_1) 4
Clamping type code (MTP) clamp with screw through hole
Part 2 of cutting item interface identifiers (CUTINT_MASTER_1) CoroMill 390 -size 17 (R390-17)
Depth of cut maximum (APMX) 0.6181 inch
Working engagement ratio maximum (AERMX) 1
Maximum ramping angle (RMPX) 2.7 °
Maximum plunge depth (AZ) 0.0591 inch
Hand (HAND) Right
Functional length (LF) 1.575 inch
Radial rake angle (GAMF) 1.341 °
Axial rake angle (GAMP) 19.709 °
Overall length (OAL) 1.575 inch
