Seco SD105 Crownloc Indexable Drill
Have one to sell?
$350.00 USD
ConditionUsed
2 available

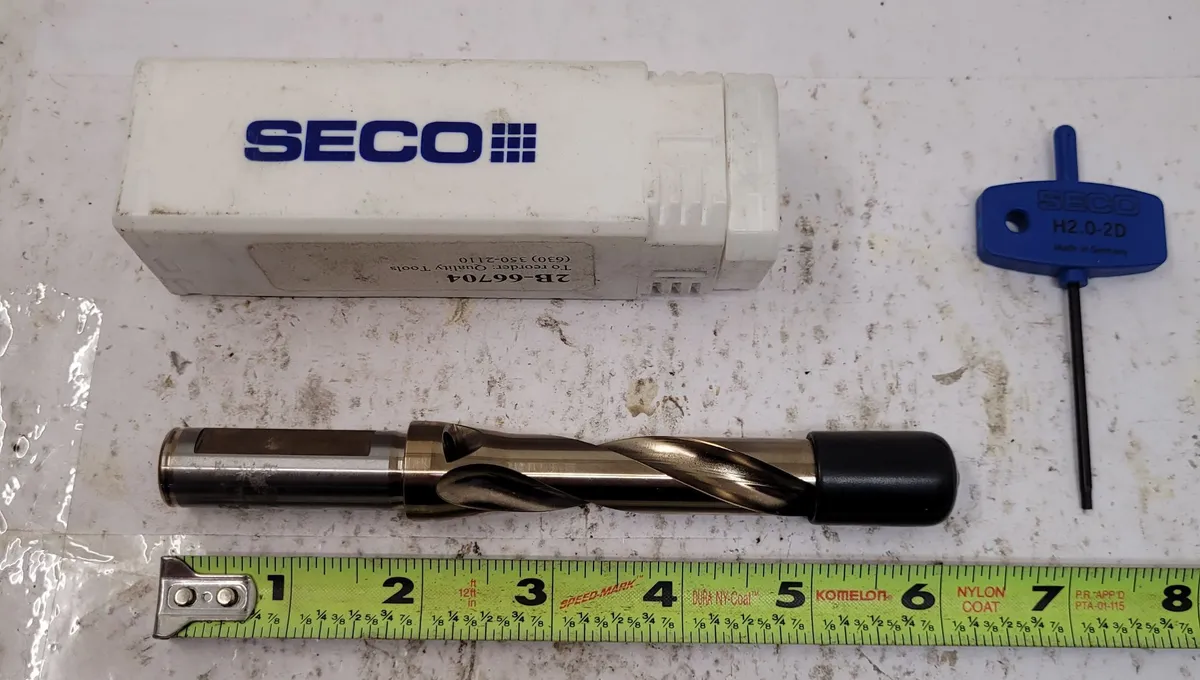

Seco SD105 Crownloc Indexable Drill available. Manufactured by SECO, this used tooling and accessories drill comes with a body diameter of 0.610 in and overall length of 6.260 in. Ideal for precision jobs with a cutting diameter max of 0.669 in. Model: SD105-16.00.
Seco SD105 Crownloc Indexable Drill SD105-16.00/16.99-80-0625R7
NEW IN BOX
Body diameter 0.610 in
Cutting diameter minimum 0.630 in
Cutting diameter maximum 0.669 in
Flange diameter 0.787 in
Shank diameter 0.625 in
Item Number 02445840
LFS Functional length secondary 4.370 in
LS Shank length 1.890 in
LU Usable length 3.150 in
LUX Usable length maximum 3.583 in
OAL Overall length 6.260 in
Shank type ISO 9766
