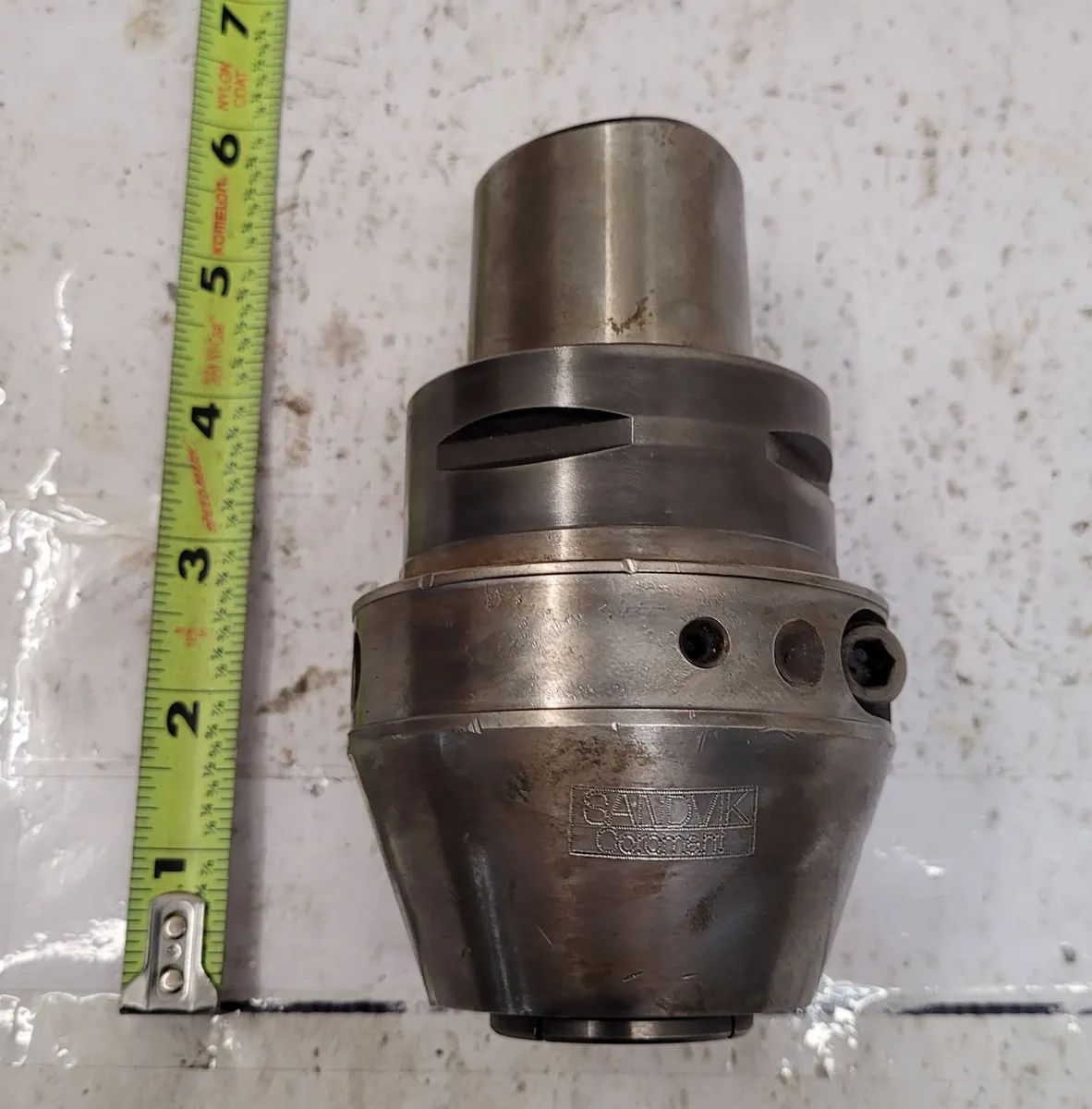

SANDVIK C6-391.CGA-32 084 CAPTO C6 Hydro-Grip Hydraulic Chuck - Set of 2

SANDVIK COROMANT CAPTO to HYDRO-GRIP C6-391.CGA-32 084

USED Set of 2
1 comes with a drill bit.

SANDVIK COROMANT CAPTO to HYDRO-GRIP C6-391.CGA-32 084 PRECISION CHUCK

Product data Adaptive interface machine direction (ADINTMS) Coromant Capto (bolt and segment clamping) -size C6
Adaptive interface workpiece direction (ADINTWS) Hydraulic Membrane chuck -metric: 32
Damping property (DPC) false
Coolant entry style code (CNSC) 3: axial concentric and radial entry
Coolant exit style code (CXSC) 1: axial concentric exit
Coolant pressure (CP) 80 bar
Connection diameter (DCON) 32 | 63 mm
Functional diameter (DFC) 44 mm Standard number (STDNO1) ISO26623-1
Functional length (LF) 84 mm
Body diameter (BD1) 47.8 mm
Body diameter (BD2) 69.5 mm
Body length (LB1) 40.5 mm
Body length (LB2) 84 mm
Body half taper angle (BHTA1) 15 deg
Body half taper angle (BHTA2) 0 deg
Torque (TQ) 6 Nm
Rotational speed maximum (RPMX) 25000 1/min
