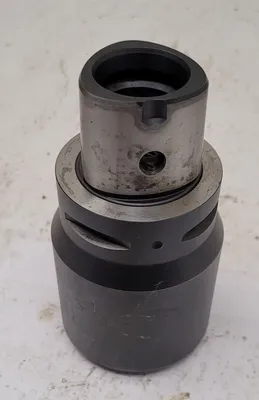

Sandvik Coromant Capto® to Whistle Notch adaptor C6-391.21-32 095

Sandvik Coromant Capto® to Whistle Notch adaptor C6-391.21-32 095

USED
Diagram in Photos for reference:
Connection diameter machine side(DCONMS) 2.4803 inch
Functional diameter(DFC) 1.7323 inch
Standard number(STDNO) ISO26623-1
Connection diameter workpiece side(DCONWS) 1.2598 inch
Kappa (z-axis rot)(KAP) 0 °
Functional length(LF) 3.7402 inch
Body diameter(BD_1) 2.2047 inch
Body diameter(BD_2) 2.8346 inch
Body length(LB_1) 0.315 inch
Body length(LB_2) 3.7402 inch
Connection - machine side(ADINTMS) Coromant Capto (bolt and segment clamping) -size C6
Connection - workpiece side (ADINTWS) Whistle Notch -metric: 32
Coolant entry style(CNSC) axial concentric and radial entry
Coolant exit style(CXSC) axial concentric exit
Coolant pressure(CP) 290.0755 lbf/in2
Overall length(OAL) info: 5.2362 inch
