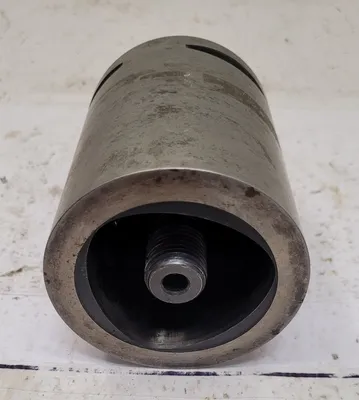

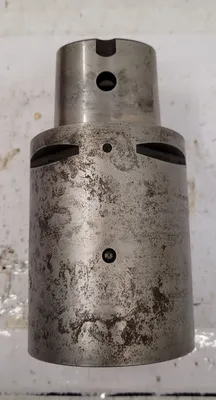

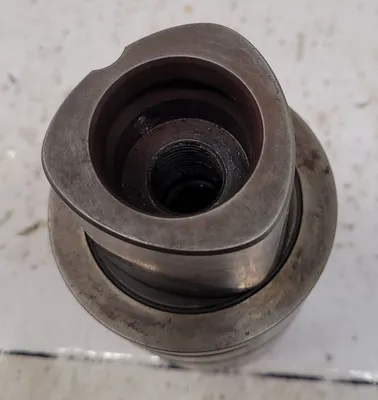

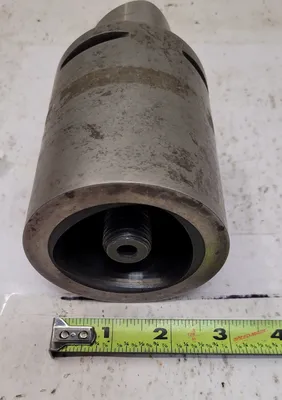

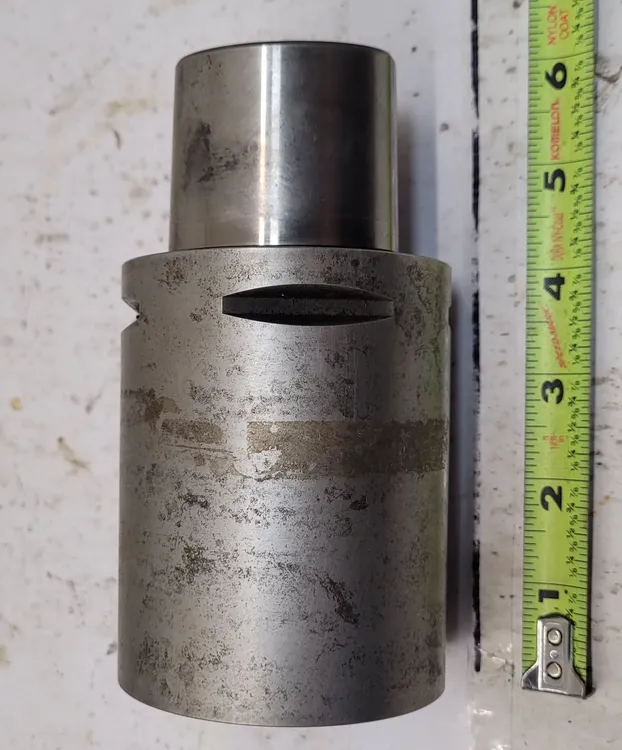

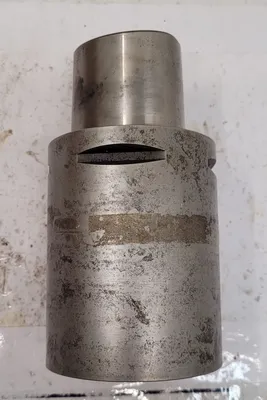

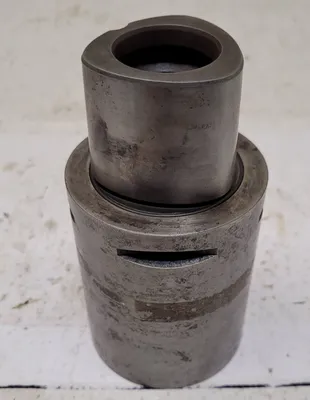

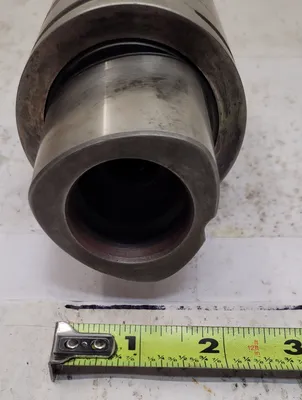

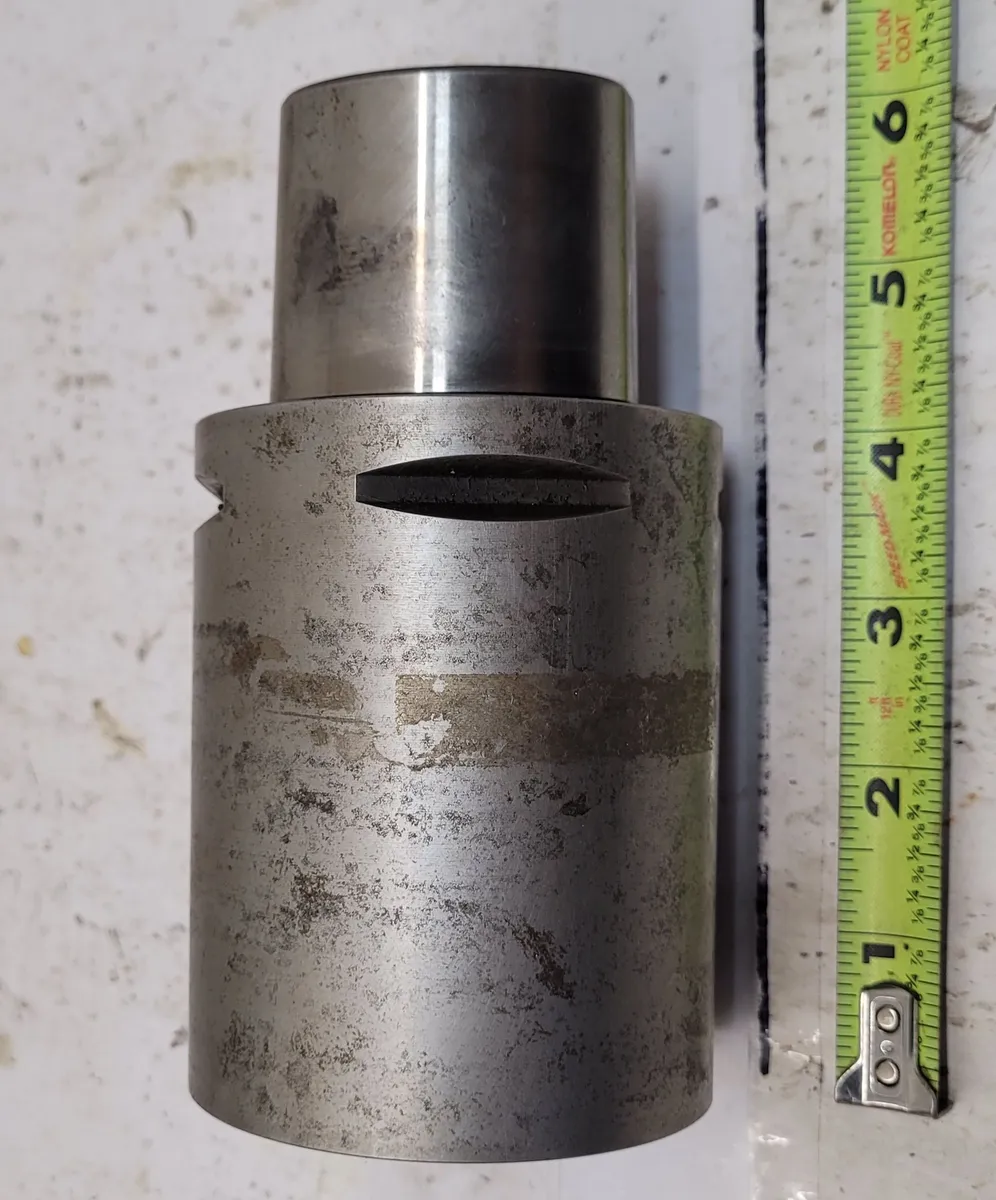

Sandvik Coromant Capto 100mm Extensions C8-391.01-80 100

Sandvik Coromant Capto 100mm Extensions C8-391.01-80 100

Connection - workpiece side (ADINTWS): Coromant Capto (bolt/segment clamping) - size C8
Coolant entry style(CNSC): axial concentric and radial entry
Coolant exit style(CXSC): axial concentric exit
Coolant pressure(CP): 1,160.3019 lbf/in2
Connection diameter machine side(DCONMS): 3.1496 inch
Functional diameter(DFC): 2.1654 inch
Standard number(STDNO) : ISO26623-1
Connection diameter workpiece side(DCONWS): 3.1496 inch
Kappa (z-axis rot)(KAP): 0 °
Functional length(LF): 3.937 inch
Body diameter (BD_1): 3.1496 inch
Body length (LB_1): 3.937
Body half taper angle (BHTA_1): 0 °
Overall length (OAL): 5.8268 inch
