Kennametal Indexable Boring Bar: A24MCLNL5 – 44.70 mm Min Bore
Have one to sell?
$180.00 USD
ConditionUsed
1 available

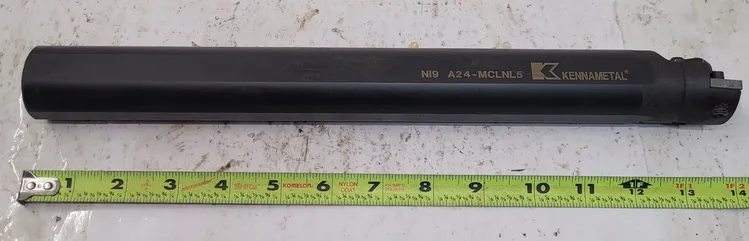

Kennametal Indexable Boring Bar, model A24MCLNL5, designed for 44.70 mm min bore. Features left-hand steel toolholder, 1-1/2" shank, and 14" length. Negative rake with 5° angle, series Kenloc. Suitable for precise boring operations.
Kennametal Indexable Boring Bar: A24MCLNL5 – 44.70 mm Min Bore
Minimum Bore Diameter (mm) 44.70
Minimum Bore Diameter (Decimal Inch) 1.7600
Toolholder Style A-MCLN
Tool Material Steel
Hand of Holder Left Hand
Shank Diameter (Inch) 1-1/2
Overall Length (Decimal Inch) 14.0000
Overall Length (mm) 355.60
Overall Length (Inch) 14
Insert Holding Method Screw; Clamp
Rake Negative
Rake Angle 5.00
Lead Angle -5
Series Kenloc
