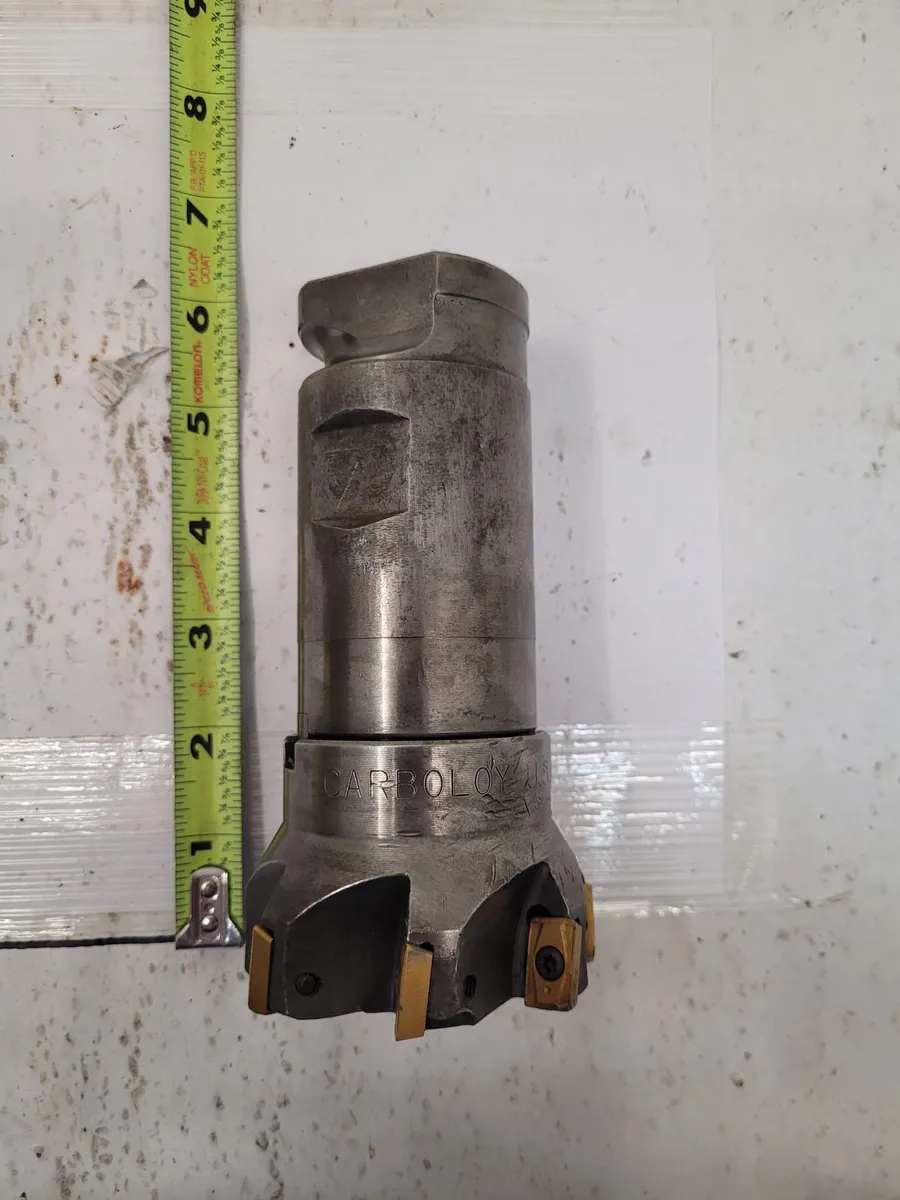

Carboloy USA Face Mill Tooling - R220.69-03.00-16 – 4534

Carboloy USA Face Mill Tooling - R220.69-03.00-16 – 4534

Depth of cut maximum in feed direction end 0.063 in
Depth of cut maximum in feed direction side 0.591 in
Depth of key way 0.224 in
Cutting diameter 3.000 in
Connection bore diameter 1.000 in
Contact surface diameter machine side 2.441 in
Rake angle radial -9.200 deg
GAMP Rake angle axial 6.000 deg
Tool cutting edge angle in feed direction end 90.000 deg
Tool cutting edge angle in feed direction side 90.000 deg
Keyway width 0.382 in
Functional length 1.969 in
Ramping angle maximum 0.600 deg
Rotational speed maximum 10300 rpm
